MSI 760GM-E51 (FX)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • MSI MS-7596 Ver:1.2

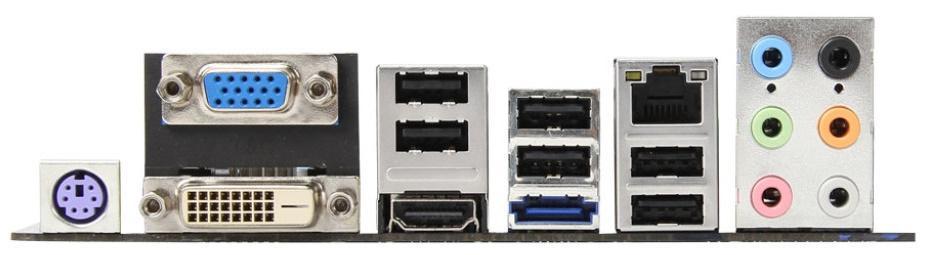

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
5x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
notes Notes

Uses Realtek ALC888S or Realtek ALC889 Audio Chip

Last updated 2025-12-21T12:46:28Z
Board info score is 9/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0100-000001-00101111-102612-LISBON-A7596100
Note
Core version
80015
BIOS version
Logs
POST string
65-0100-000001-00101111-080812-LISBON-A7596100
Note
Core version
80015
BIOS version
Logs
POST string
65-0100-000001-00101111-011212-LISBON-A7596100
Note
Core version
80015
BIOS version
Logs
POST string
65-0100-000001-00101111-111411-LISBON-A7596100
Note
Core version
80015
BIOS version
Logs
POST string
65-0100-000001-00101111-072611-LISBON-A7596100
Note
Core version
80015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

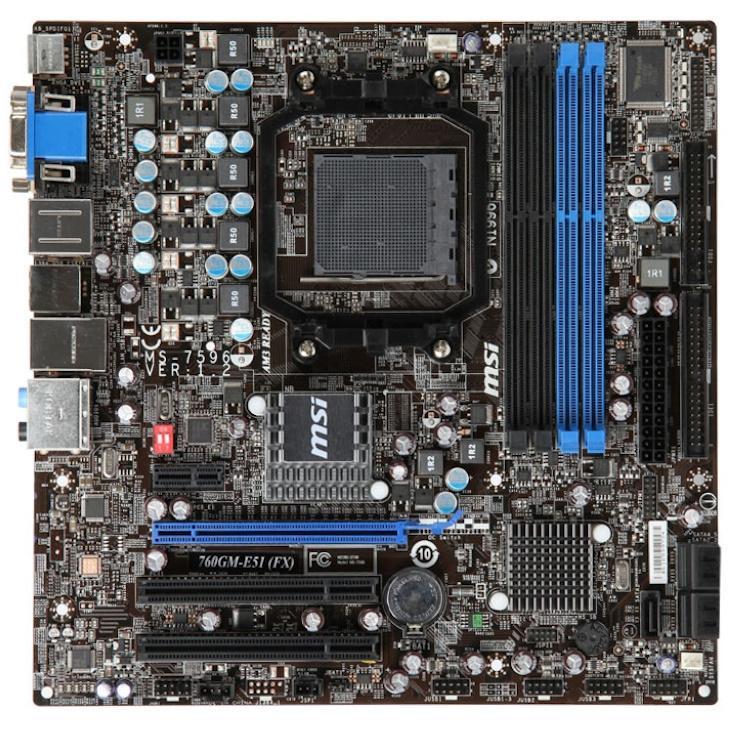

image1 Image 1 of 2 (MSI)
image2 Image 2 of 2 (MSI)
