MSI 655 Max-FISR
Logs
chipChipset
cpuSocket
Socket 478 (mPGA478)
speedFSB speeds
400MHz533MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 235mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR-333)
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
3x
FireWire 400
1x
Floppy interface
1x
Gameport
3x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
1x
Serial
6x
USB 2.0
cardExpansion slots
1x
1.5V AGP
6x
32-bit PCI
notes Notes

"HT ready" versions have newer chipset stepping and use BIOS 3.x

Last updated 2024-12-06T23:35:32Z
Board info score is 9.6/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
62-0304-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V3.2 03262004
Core version
070010
BIOS version
Logs
POST string
62-0708-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V3.1 07082003
Core version
070010
BIOS version
Logs
POST string
62-0225-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V3.0 02252003
Core version
070010
BIOS version
Logs
POST string
62-0304-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V1.2 03262004
Core version
070010
BIOS version
Logs
POST string
62-0211-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V1.1 02112003
Core version
070010
BIOS version
Logs
POST string
62-0127-009999-00101111-040201-SiS655-1ABHP000
Note
A6730SMS V1.0 01272003
Core version
070010
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
2003-04
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2001-10
File
Logs
Socket
Release date
2002-05
File
Logs
Socket
Release date
2002-10
File
Logs
Socket
Release date
2001-08
File
Logs

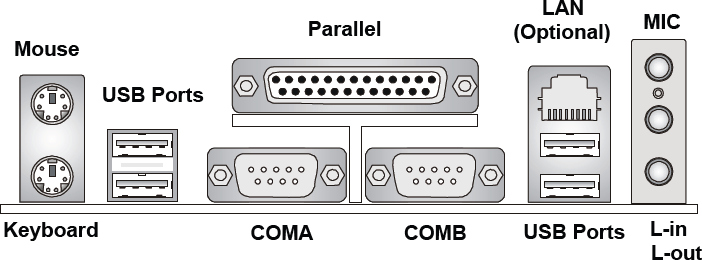

image1 Image 1 of 3 (MSI)

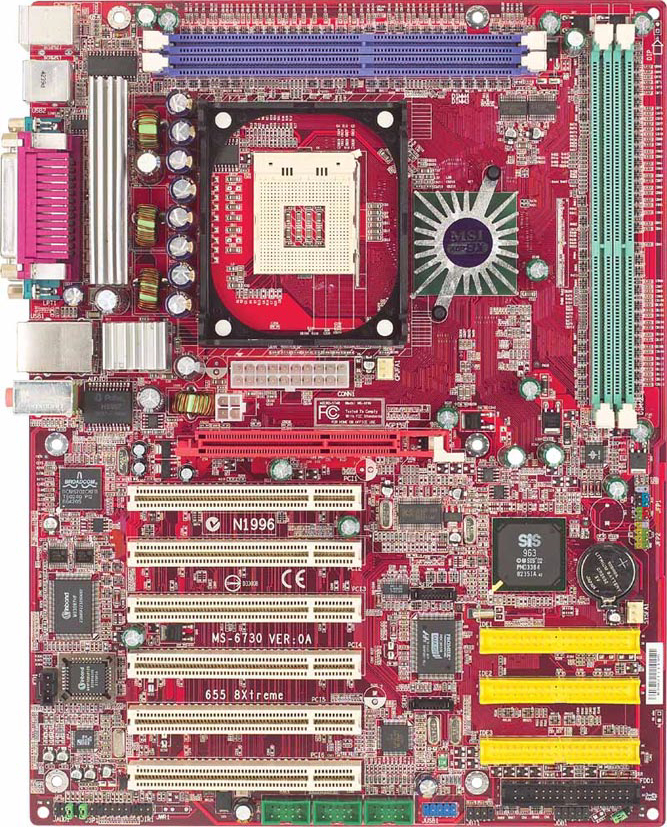

image2 Image 2 of 3 (MSI)

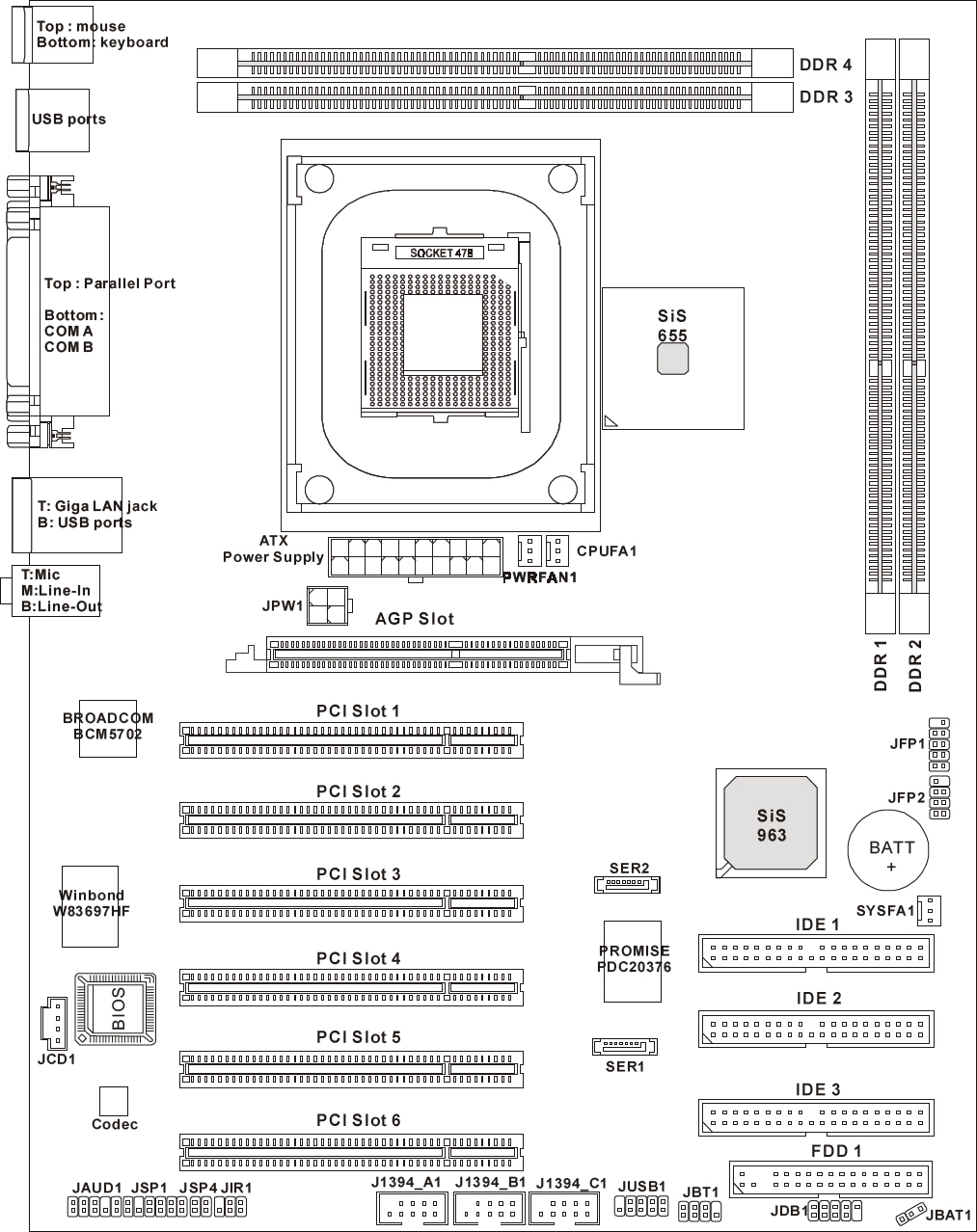

image3 Image 3 of 3 (MSI)
