MiTAC/Trigon 5114Vu
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz75MHz83MHz95MHz97MHz100MHz
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 200mm
ramMax VRAM size
8MB
chipCache
1MB
ramMax RAM size
512MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
4x
32-bit PCI
notes Notes

Used in Compaq Presario 7462RS, 7465CL, 7469CA, 7470, 7471, 7475CL, 7478, 7479CA, 7485CL, 7900, 7922RS, 7500CTO, 7543 (DCWS) LTNA, 7573 (DCVB), 7583 (DCWB) Brazil, 7588 (DCW3), 7594 (DCV4) LTNA, 7599 (DCWA)

Last updated 2025-11-27T09:59:08Z
Board info score is 9.6/10
bios 4 BIOS files available

vendor Compaq - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
raw bios dump made with uniflash
Core version
686S4
BIOS version
Logs
POST string
Note
raw bios dump made with uniflash
Core version
686S4
BIOS version
Logs

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
11/07/2001-VP4-686A-6A5LHM3CC-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/03/2000-VP4-686A-6A5LHM3CC-00
Note
Core version
6.00PG
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.03.00.3039
OS support
Windows NT 4.0
Arch
x86
Size
1.5MB
Filename
Name
Version
4.12.01.7130
OS support
Windows 9x
Arch
x86
Size
6.3MB
Filename
Name
Version
5.12.1062
OS support
Windows 2000 Windows 9x
Arch
x86
Size
918.1KB
Filename
Name
Version
5.12.01.1055
OS support
Windows 2000 Windows 9x
Arch
x86
Size
313.7KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
111.9KB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
227.7KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
4.03.00.3120
OS support
Windows NT 4.0
Arch
Size
8.2MB
Filename
Name
Version
1.08
OS support
Windows 2000 Windows 9x
Arch
x86
Size
553.6KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
4.3MB
Filename
Version
OS support
MS-DOS OS/2 Warp 4.x Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
4.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
4.9MB
Filename
Version
OS support
Windows 9x
Arch
Size
3.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1999-11-02
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2000-02-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

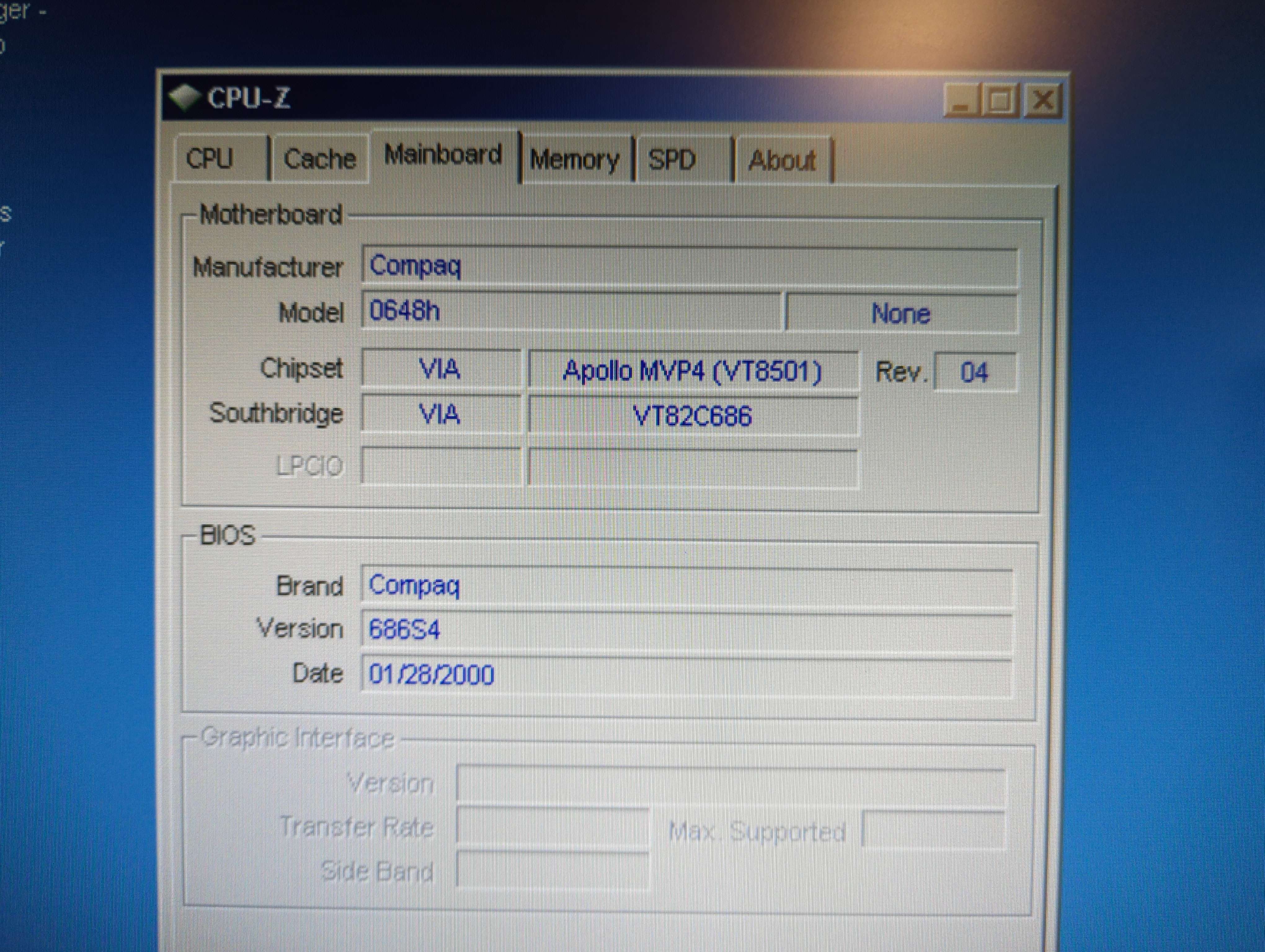

image1 Image 1 of 3 (evasive)

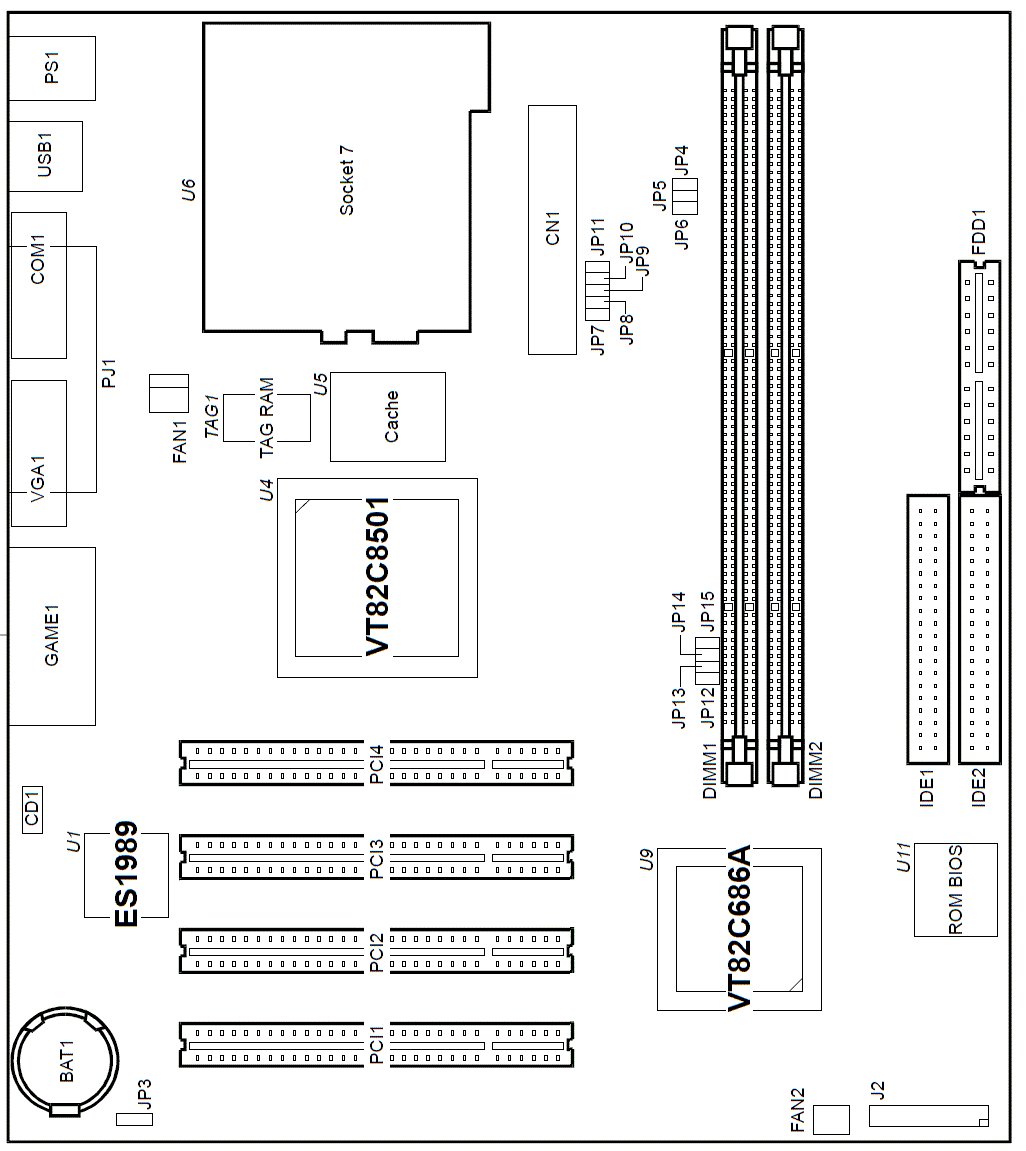

image2 Image 2 of 3

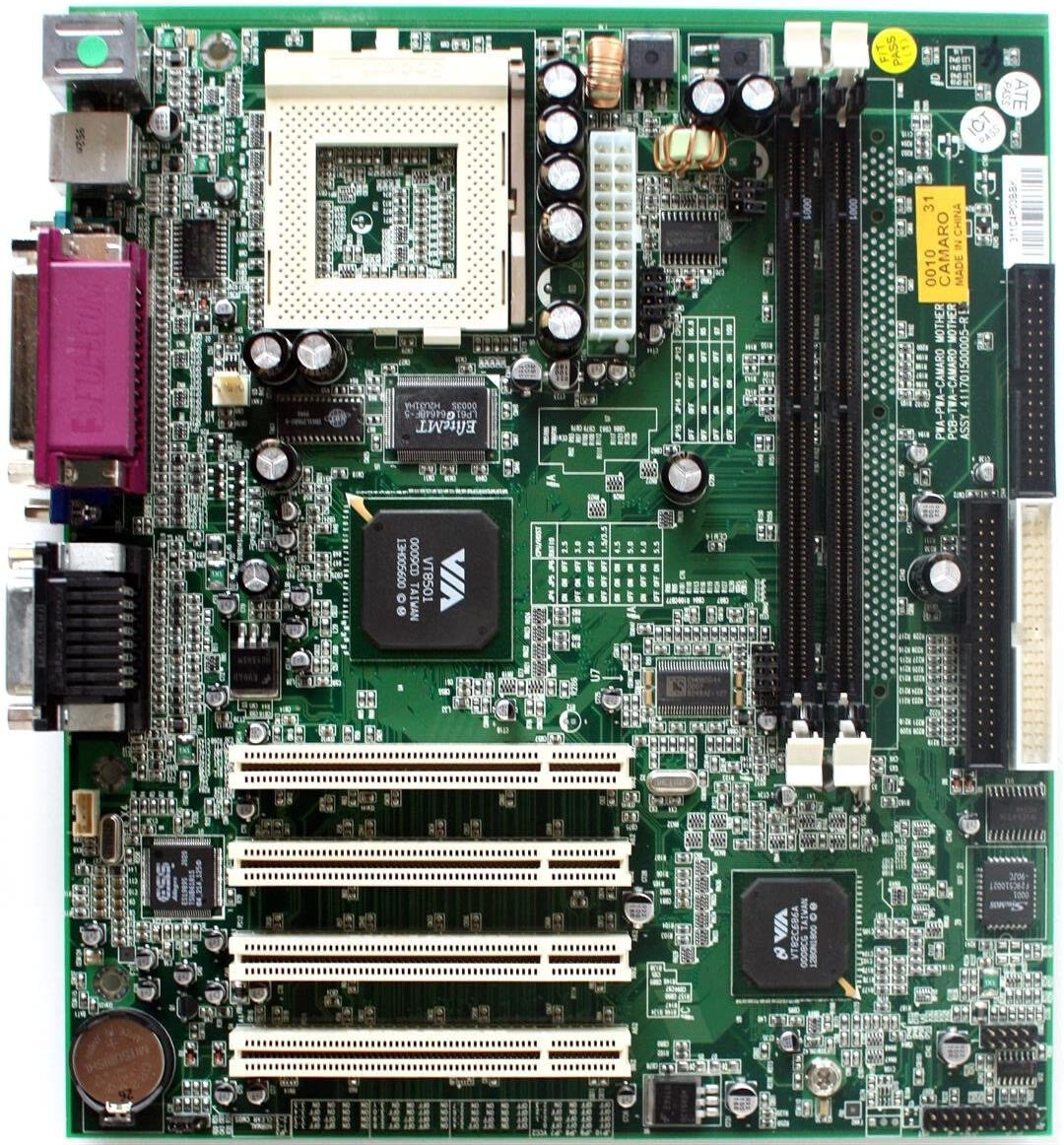

image3 Image 3 of 3 (Andrew Spode)
