Micronics M6Me (09-00271-xx)
Logs
chipChipset
cpuSocket
Socket 8 (PGA387)
speedFSB speeds
60MHz66MHz
moboForm factor
AT (max 305 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
2x
Internal SCSI
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
6x
32-bit EISA
3x
32-bit PCI
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2021-11-03T21:24:36Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/11/97 11:55:21
Note
Core version
4.05
BIOS version
Logs
POST string
10/07/96 10:25:16
Note
Core version
4.05
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
419.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
401.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
6.8MB
Filename
Version
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
7MB
Filename
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1997
File
Logs
Family
Release date
1998-05
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1996
File
Logs
Family
Release date
1996-03
File
Logs
Family
Release date
1997-05
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1995-11
File
Logs
Family
Release date
1999-01
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1997-02
File
Logs

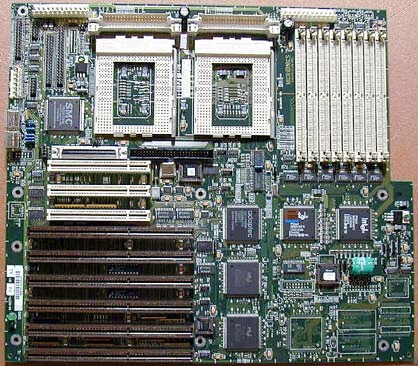

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2 (AT House)
