Micronics LX30WB (09-00220-xx)
Chipset
Socket
FSB speeds 25MHz33MHz50MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Max RAM size
RAM type
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots5x
16-bit ISA
2x
32-bit VLB
1x
8-bit ISA
No board specific known issues
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Last updated 2024-08-02T14:03:21Z
Board info score is 8.8/10
Chips
-> Chipset part
-> IDE ctrl.
-> Signal transmitter/receiver
-> Super I/O
CPU family support
0 BIOS files available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
80486 ROM BIOS PLUS Version 0.10 LX30-04
Note
Core version
BIOS version
486 PLUS 0.10
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
v2.09
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 2.x
SCO Unix - OpenServer
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
691.2KB
Filename
Name
Version
N/A
OS support
Empty
Arch
x86
Size
19.7KB
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

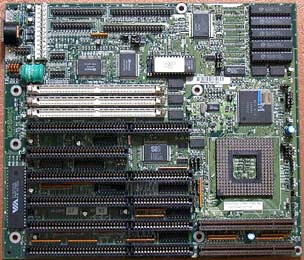

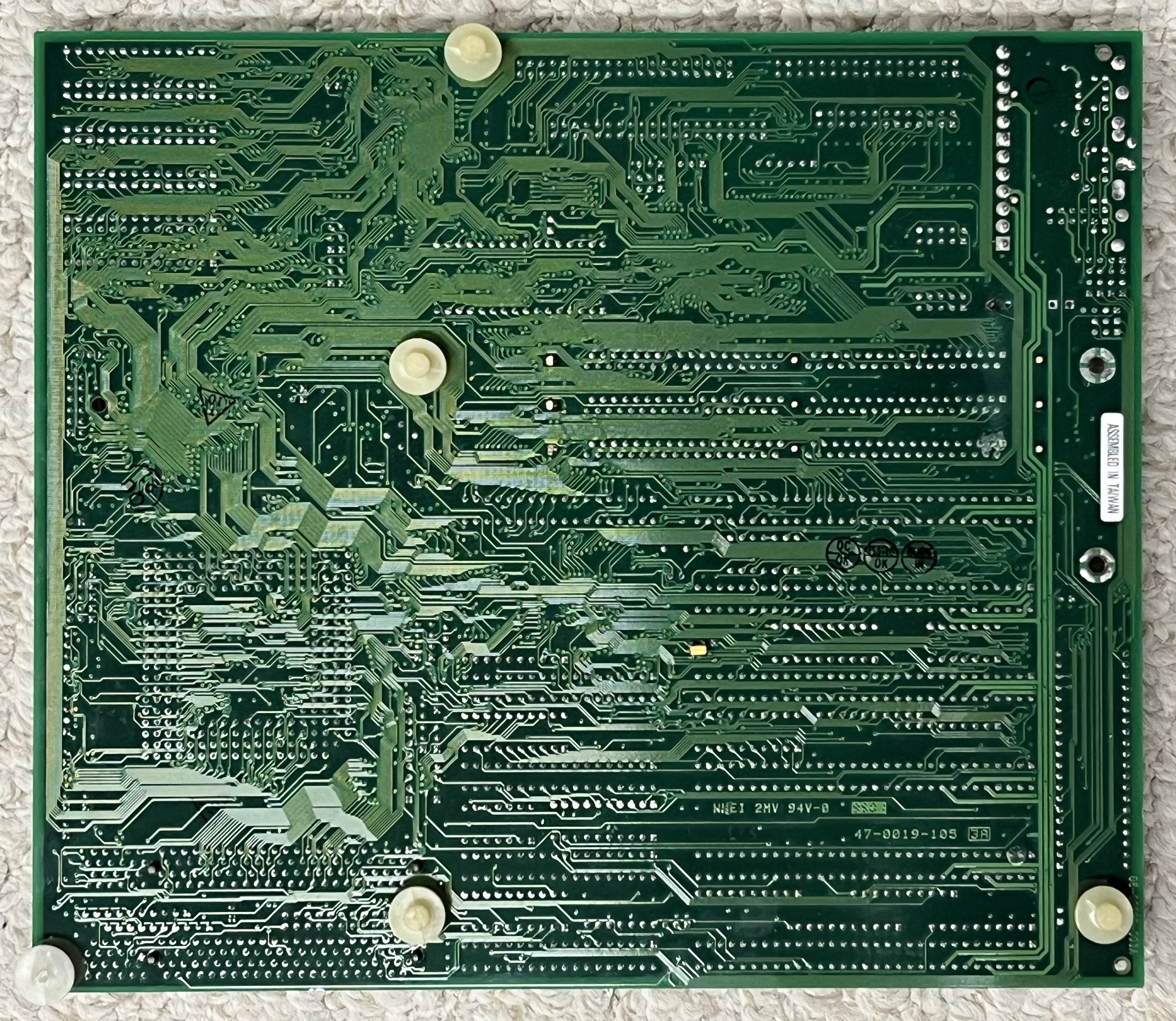

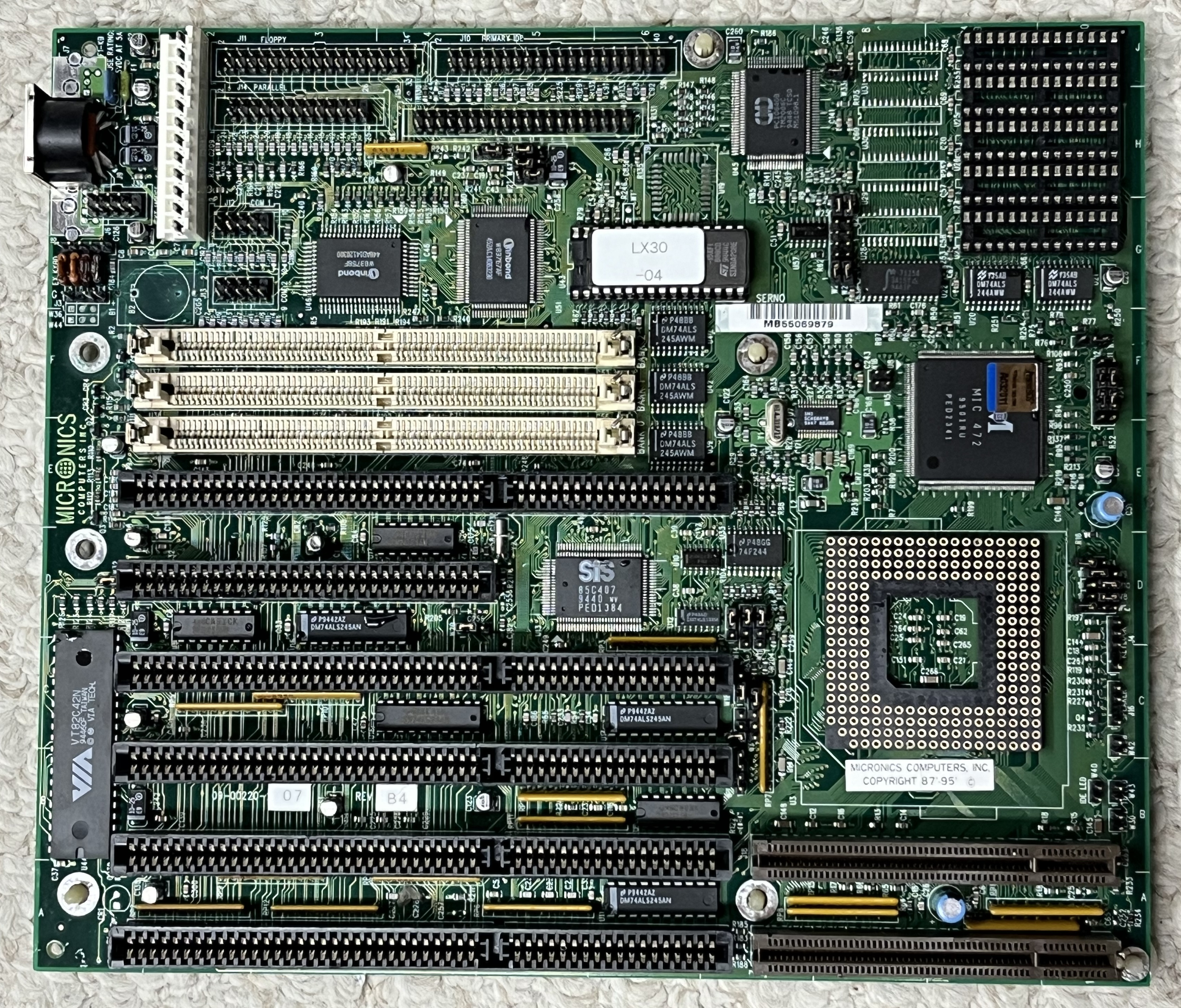

Image 1 of 4 (Microhouse)
Image 2 of 4 (AT House)
Image 3 of 4 (Douglar)
Image 4 of 4 (Douglar)
