Micronics LPX54 (REV. 3A) (09-00216-xx)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Cache
256KB512KB
Max RAM size
128MB
RAM type 72-pin FPM
PSU connector
Empty
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-06-24T18:56:44Z
Board info score is 6.8/10
Chips
-> Video
CPU family support
0 BIOS files available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
No drivers available
2 board documents available
Release date
File
Logs

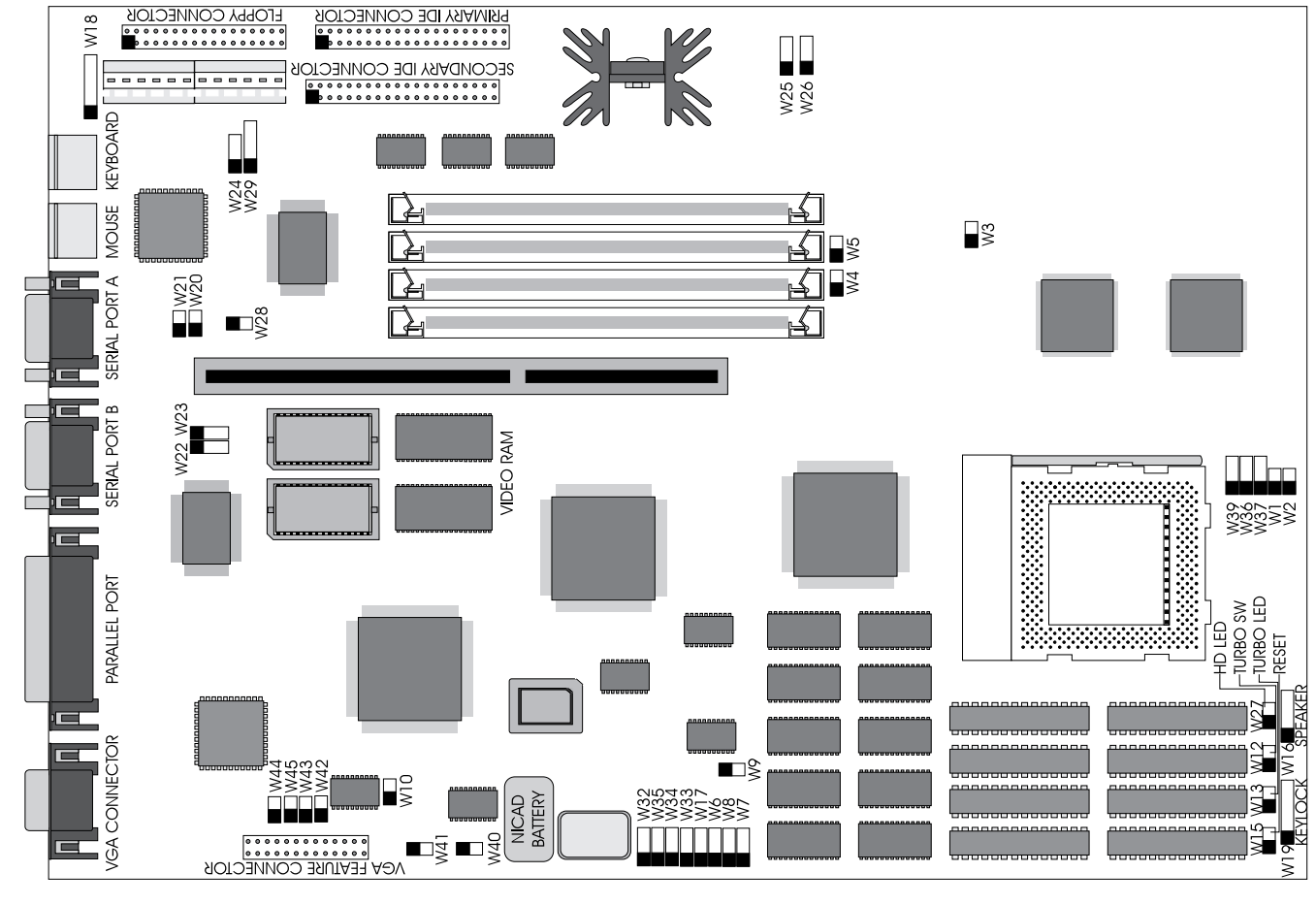

Image 1 of 2 (Microhouse)
Image 2 of 2
