Micronics Gemini VL-Bus (09-00144-xx)
Logs
chipChipset
cpuSockets
Socket 1 (PGA169) PGA168
speedFSB speeds
25MHz33MHz50MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
chipCache
64KB128KB256KB
ramMax RAM size
64MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
Parallel
2x
Serial
cardExpansion slots
8x
16-bit ISA
2x
32-bit VLB
Last updated 2026-01-04T23:23:11Z
Board info score is 9.6/10
bios 4 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Gateway 2000 Local Bus BIOS
Note
Core version
486 PLUS 0.10
BIOS version
Logs
POST string
Note
Beta bios
Core version
BIOS version
Logs
POST string
Note
Core version
BIOS version
Logs

vendor Mr. BIOS - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
V001B330
Note
ASIC MIC-461/462 386, Cx486, 486
Core version
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

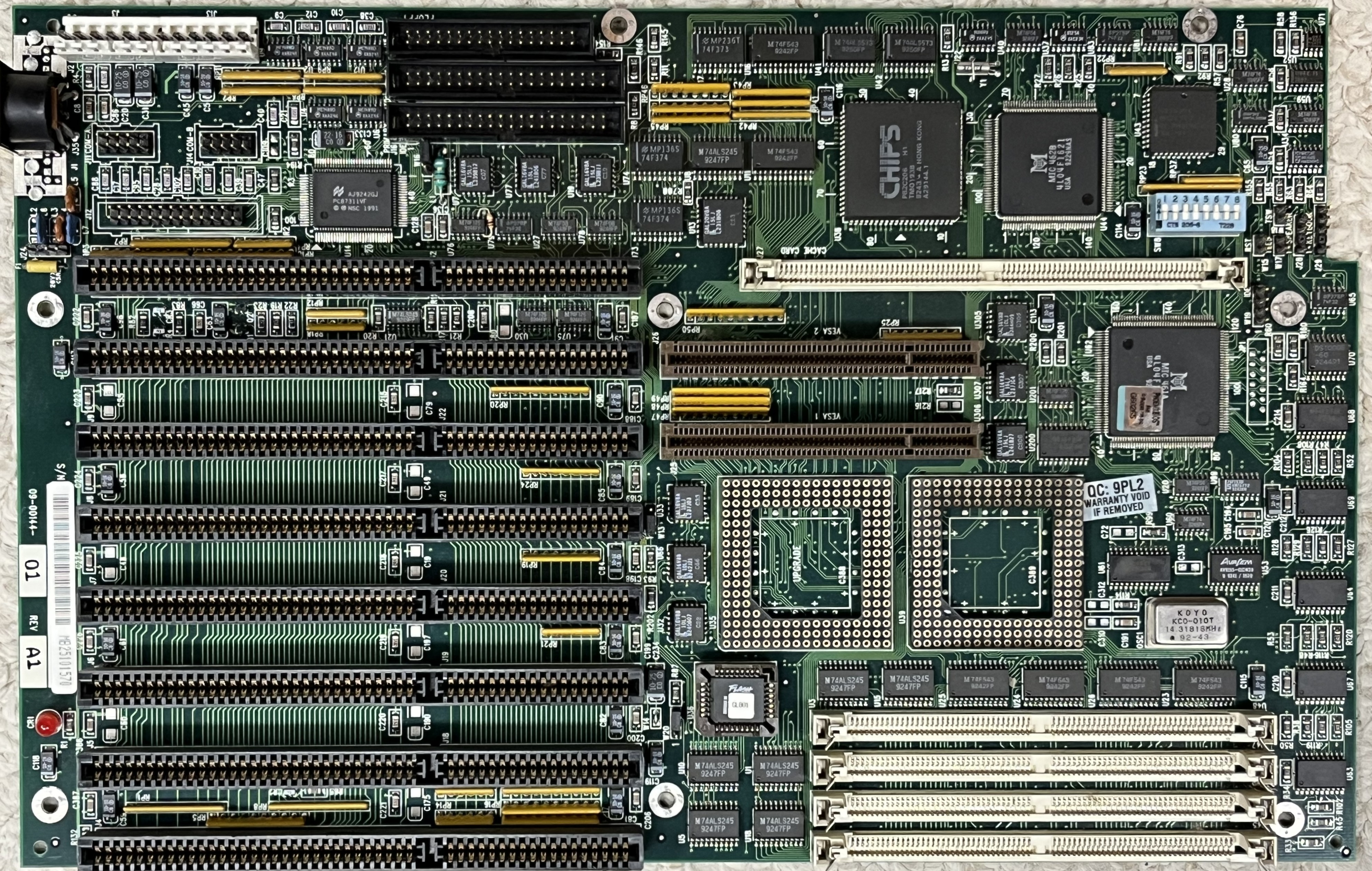

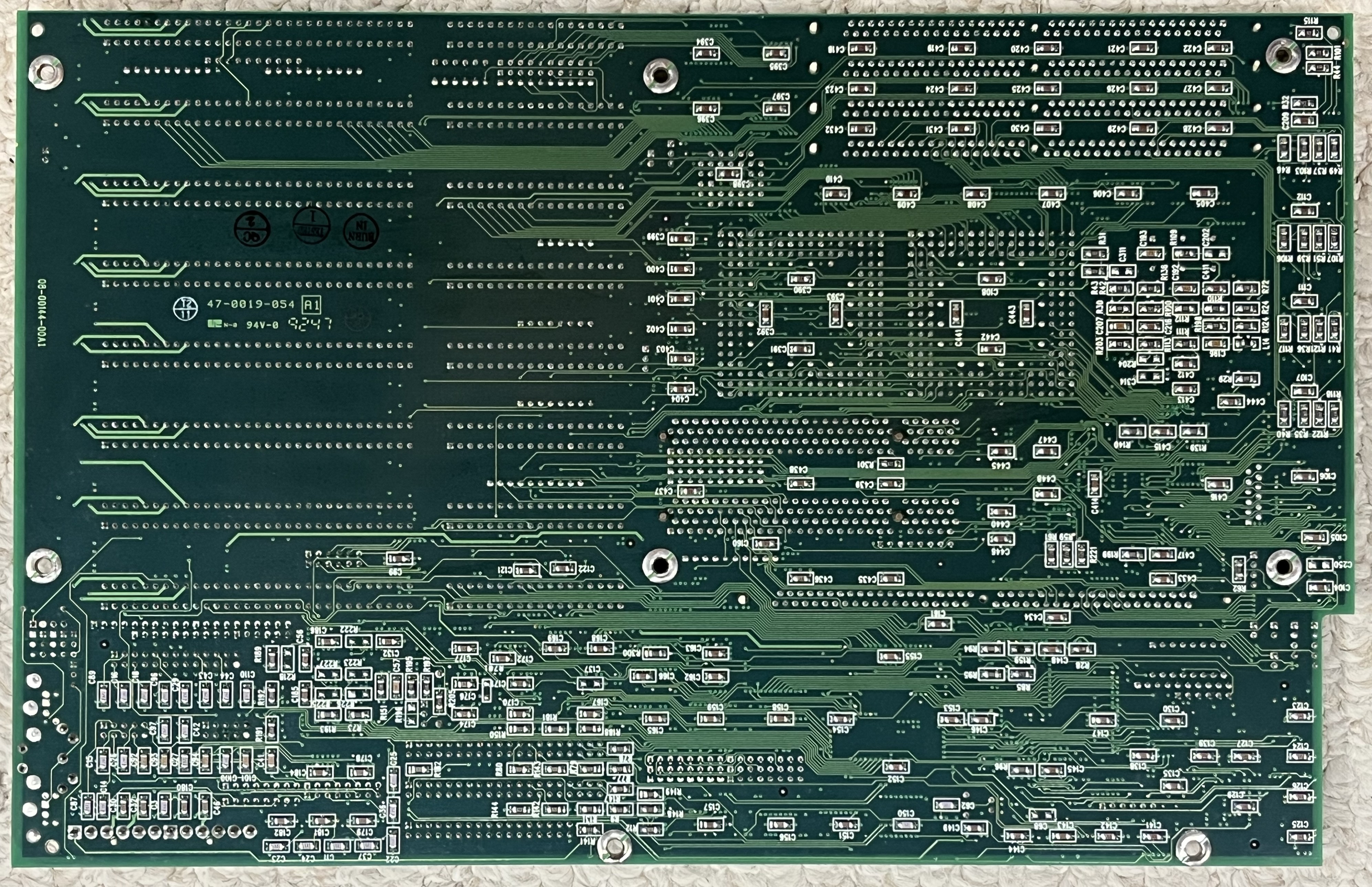

image1 Image 1 of 6 (Microhouse)
image2 Image 2 of 6 (Douglar)

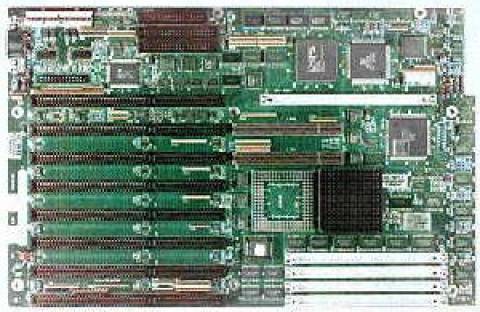

image3 Image 3 of 6
image4 Image 4 of 6 (Douglar)
image5 Image 5 of 6 (Douglar)

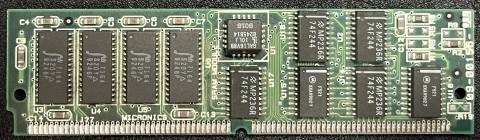

image6 Image 6 of 6

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
