MicroDesign AIO486/R
Logs
Chipset
Socket
FSB speed 33 MHz
Form factorSingle Board Computer
DimensionsEmpty
Max VRAM size2 MB
Cache
None/Integrated in the CPU
Max RAM size
64 MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Empty
Also known as
- MicroDesign AAIO486/R
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
1x
PC/104
Notes
Has a "Silicon Disk" option which goes in the thing that looks like a memory slot but isn't.
Last updated 2024-03-20T22:40:01Z
Board info score is 6.1/10
Chips
CPU family support
No BIOS files available
1 driver available
Name
Version
Arch
OS support
Size
Filename
Name
Version
1.30 / 1.40
Arch
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 4.0
Size
7.4MB
Filename
No board documents available
Chip
Release date
File
Logs
Family
Release date
File
Logs

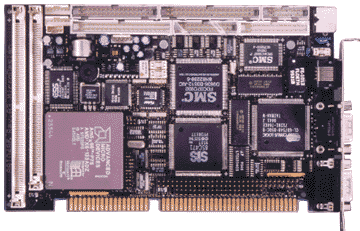

Image 1 of 1
