Micro Tek GM45+
Chipset
Socket
FSB speeds 533MHz800MHz1066MHz1333MHz
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
4GB
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-08-12T12:20:44Z
Board info score is 6.6/10
Chips
-> Chipset part
-> Audio
-> Video
CPU family support
- Intel Core 2 Duo (Conroe/Allendale)
- Intel Core 2 Quad (Kentsfield)
- Intel Core 2 Duo (Wolfdale)
- Intel Core 2 Quad (Yorkfield)
- Intel Pentium Dual-Core (Allendale)
- Intel Celeron Dual-Core (Allendale)
- Intel Xeon (Conroe/Allendale)
- Intel Celeron (Conroe-L)
- Intel Core 2 Extreme (Kentsfield)
- Intel Xeon (Kentsfield)
- Intel Pentium Dual-Core (Wolfdale)
- Intel Celeron Dual-Core (Wolfdale)
- Intel Xeon (Wolfdale)
- Intel Core 2 Extreme (Yorkfield)
- Intel Xeon (Yorkfield)
0 BIOS files available
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.42.15
OS support
Windows XP/2k3
Arch
x86
Size
9.3MB
Filename
Name
Version
9.2.0.1030
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2010-07
File
Logs
Chip
Release date
2008-09
File
Logs
Chip
Release date
2007-04
File
Logs
Chip
Release date
2005-04
File
Logs
Chip
Release date
2012-05
File
Logs
Family
Release date
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-01
File
Logs
Family
Release date
2008-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2009-01
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2011-09-06
File
Logs
Family
Release date
2008-12
File
Logs
Family
Release date
2007-06
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2007-10-30
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2007-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2007-04
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2007-10
File
Logs
Family
Release date
2010-12
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2009-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2007-11-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
2011-09-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Family
Release date
2011-03-21
File
Logs
Socket
Release date
File
Logs

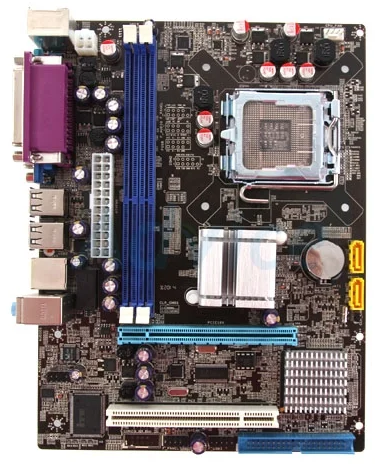

Image 1 of 1
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
