MCST MBE1C-PC (Ver. 1)
Logs
chipChipset
cpuSocket
Elbrus-1C+ (BGA1156)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX)
tag Also known as
  • MCST ТВГИ.469555.331
connI/O ports
1x
GPIO
2x
HDMI
2x
LVDS
3x
RJ-45 LAN
7x
SATA III
2x
Serial
8x
USB 2.0
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
1x
PCIe x16
notes Notes

MCST MBE1C-PC Specifications

Last updated 2025-11-23T15:29:02Z
Board info score is 6.2/10
chip Chips
-> Chipset part
MCST KPI-2 (КПИ-2)
cpufam CPU family support
bios 0 BIOS files available
drv No drivers available
doc No board documents available

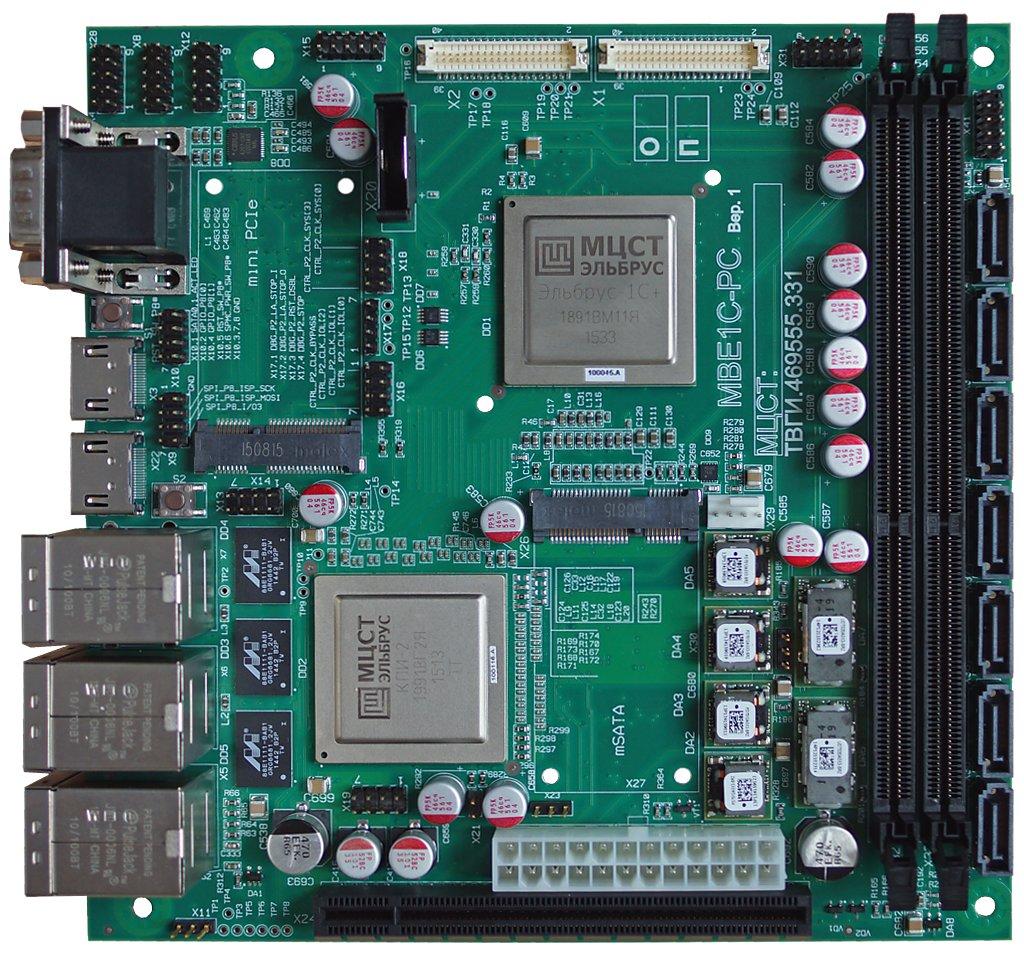

image1 Image 1 of 3 (MCST)

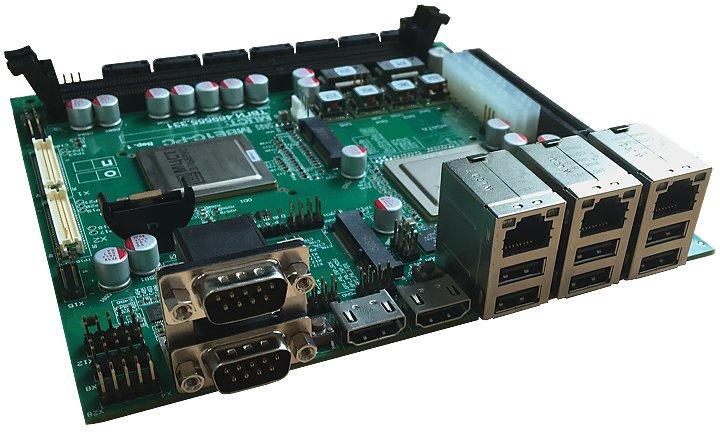

image2 Image 2 of 3 (MCST)

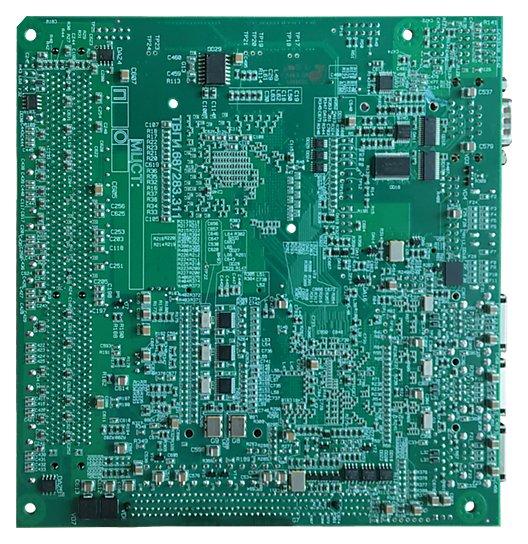

image3 Image 3 of 3 (MCST)
