MCST 1E2C3-TmITX
Logs
Chipset
Socket
FSB speed Empty
Form factorMini ITX (max 170 x 170 mm)
Dimensions170mm x 170mm
Cache
None/Integrated in the CPU
Max RAM size
256GB
RAM type 260-pin DDR4 SO-DIMM ECC
PSU connector
I/O ports1x
3.5mm Line-Out
2x
HDMI
1x
LVDS
1x
RJ-45 LAN
2x
SATA III
1x
SFP (1 Gbit/s)
1x
Serial
4x
USB 2.0
3x
USB 3.0
Expansion slots1x
M.2 (M key)
1x
PCIe x4
Last updated 2025-11-23T16:04:11Z
Board info score is 6.3/10
Chips
CPU family support
0 BIOS files available
No drivers available
1 board document available
Release date
File
Logs

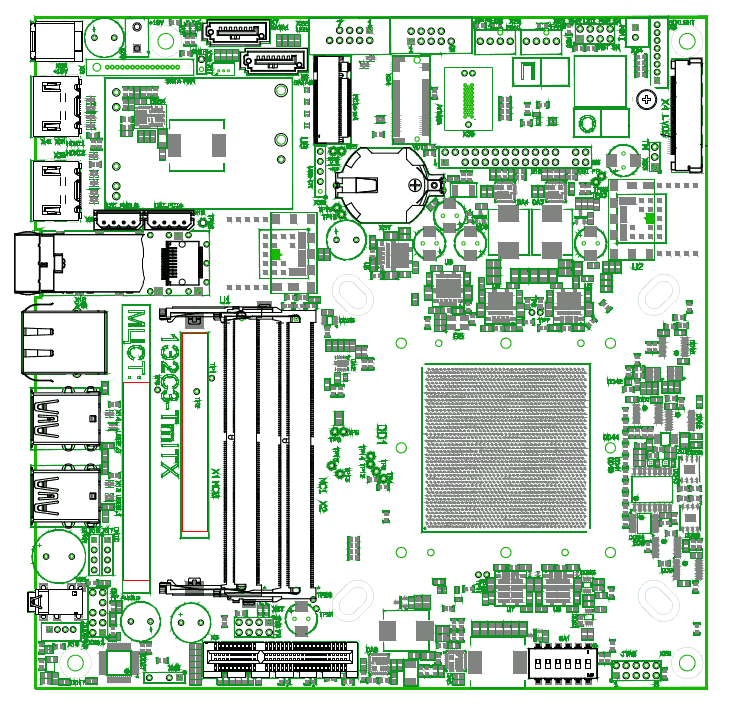

Image 1 of 2 (MCST)

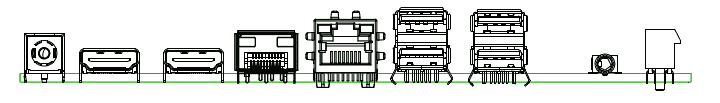

Image 2 of 2 (MCST)
