M-Tech (MTI)/Rise R687
Chipset
Socket
FSB speeds 66MHz100MHz133MHz
Form factorOEM / Proprietary
Dimensions230mm x 220mm
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type SDR UDIMM
PSU connector
Also known as
- M-Tech (MTI)/Rise R687AI (Intel)
- M-Tech (MTI)/Rise R687AC (VIA)
I/O ports2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
Serial
1x
TV-Out
4x
USB 1.x
1x
VGA
Expansion slots1x
32-bit PCI
Notes
Optional IEEE1394 card can be fitted, unknown what chip that has.
Last updated 2024-08-01T17:22:43Z
Board info score is 8.9/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> Video
CPU family support
1 BIOS file available
Award - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.02.0017
OS support
Windows NT 4.0
Arch
x86
Size
5.5MB
Filename
Name
Version
4.10.2225
OS support
Windows 9x
Arch
x86
Size
4.6MB
Filename
Name
Version
5.00.2238
OS support
Windows 2000
Windows 9x
Arch
x86
Size
3MB
Filename
Name
Version
5.719.0325.2009
OS support
Linux
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Windows 2000
Windows 7
Windows 9x
Windows Vista
Windows XP/2k3
Arch
x86
Size
39.5MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
N/A
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Arch
x86
Size
1.8MB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs

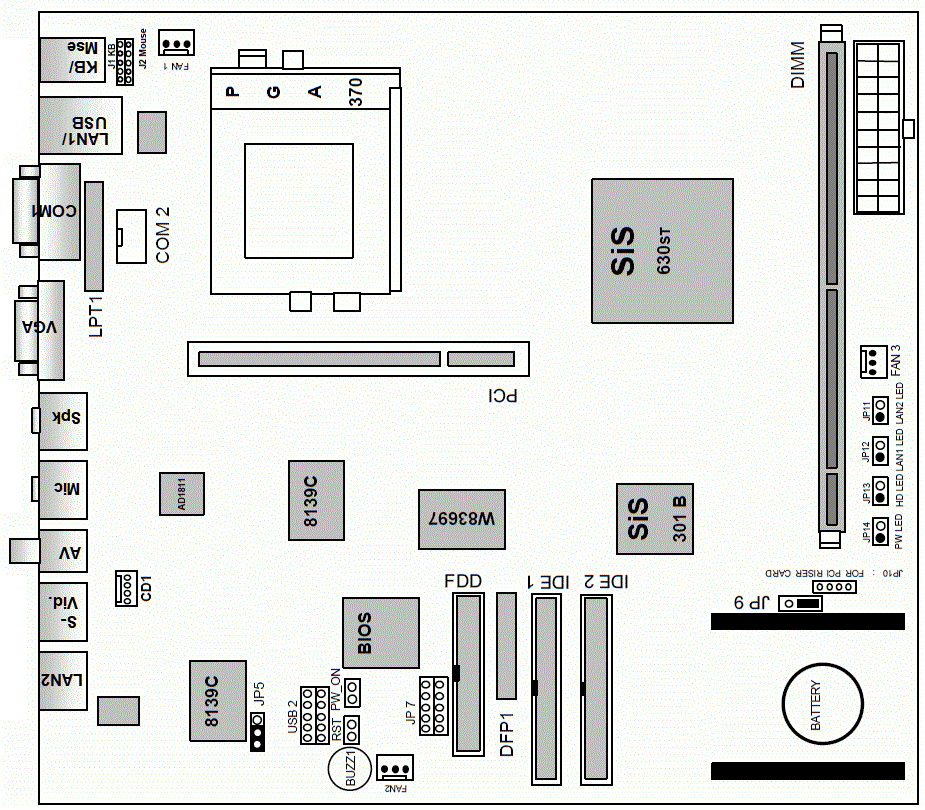

Image 1 of 2 (evasive)

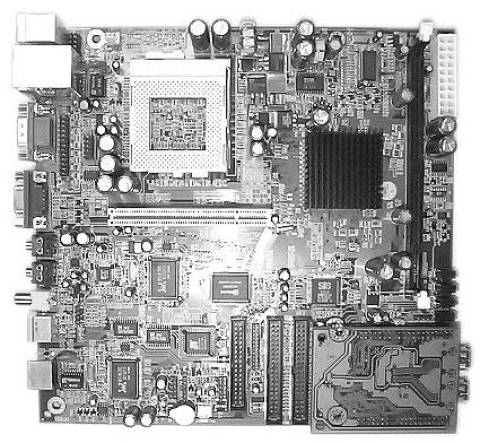

Image 2 of 2
