LianTec ITX-6700
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speed
Empty
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170mm x 170mm
chipCache
None/Integrated in the CPU
ramMax RAM size
1GB
ramRAM types
DDR UDIMMDDR UDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
2x
IDE interface
1x
RJ-45 LAN
1x
S/PDIF
2x
SATA I
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
Tiny-Bus
notes Notes

One extended PCI slot supports Four bus master PCI bus (one PCI bus master shared with Liantec Tiny-PCI)

  • ITX-6700L: (Without Pre-installed AMD Geode NX CPU)
  • ITX-6700L-NX1500: (With Pre-installed AMD Geode NX1500 CPU)
  • ITX-6700LDTP: (With TBM-15VB301 module with DVI, TV-out, and Mini-PCI, without Pre-installed AMD Geode NX CPU)
  • ITX-6700LXP: (With TBM-15VB302 module with LVDS and Mini-PCI, without Pre-installed AMD Geode NX CPU)
  • ITX-6700LDTP-NX1500: (With TBM-15VB301 module with DVI, TV-out, and Mini-PCI, with Pre-installed AMD Geode NX1500 CPU)
  • ITX-6700LXP-NX1500: (With TBM-15VB302 module with LVDS and Mini-PCI, with Pre-installed AMD Geode NX1500 CPU)
Last updated 2025-07-18T13:16:13Z
Board info score is 6.3/10
chip Chips
-> Chipset part
SiS 741CX SiS 964/964L
-> Audio
Realtek ALC655 (AC97)
-> Network
Realtek RTL8110S-32 (PCI Gigabit Ethernet)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv 6 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
1.60.615
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
2.4MB
Filename
Name
Version
3.73
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.93
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

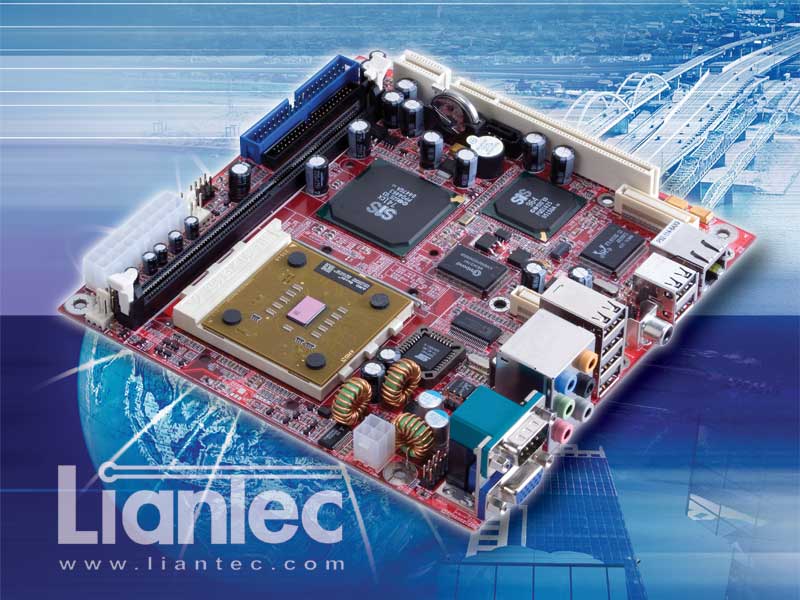

image1 Image 1 of 1 (LianTec)
