Lenovo M3A760M
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size512MB
Cache
None/Integrated in the CPU
Max RAM size
16GB
RAM type DDR3 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
HDMI
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
8x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Notes
Made by ECS for Lenovo
Last updated 2025-09-02T11:01:15Z
Board info score is 7.1/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2008-08-08
File
Logs
Chip
Release date
File
Logs

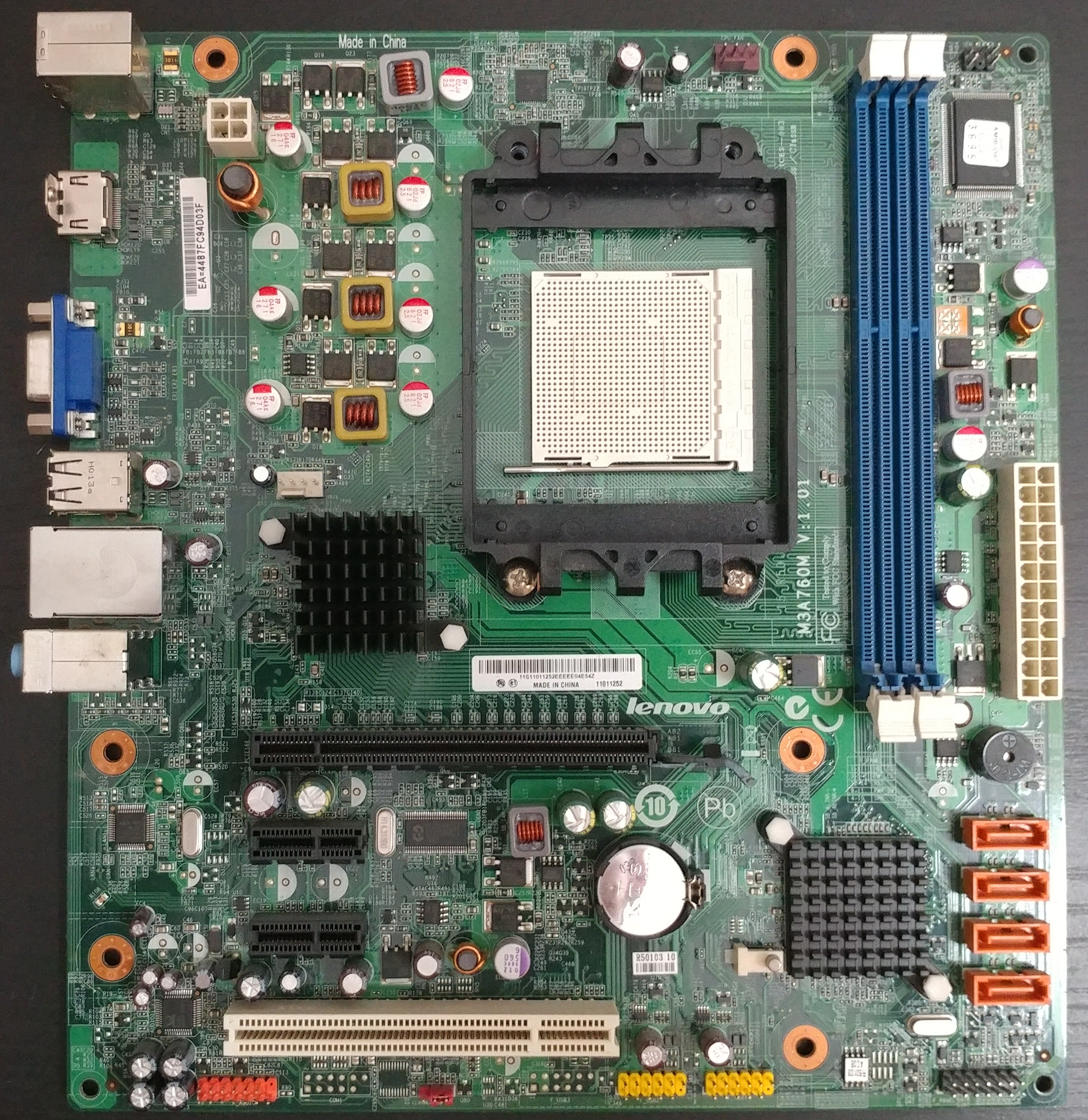

Image 1 of 1 (Carlos S. M.)
