LEADMAN ELECTRONICS LM-103FS-16
Logs
chipChipset
cpuSockets
DIP40 PLCC68
speedFSB speed
16MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
30-pin SIPP
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • MSI MB-G12-01/10-90
connI/O ports
1x
AT Keyboard
cardExpansion slots
6x
16-bit ISA
1x
8-bit ISA
wrench Known issues
  • Leaky Ni-Cd clock battery

The Ni-Cd battery may be leaking, risking damage to PCB layers & nearby components. Promptly remove the battery & clean corrosion/alkaline salts from the board. Use white vinegar to dissolve salts, but exercise caution as vinegar can corrode exposed metals. A thorough examination & repair may be needed. Replace battery with guide: https://github.com/wiretap-retro/Not-A-Varta

Last updated 2025-06-03T18:35:02Z
Board info score is 8.4/10
chip Chips
-> Chipset part
G-2 GC101 G-2 GC102
cpufam CPU family support
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
D286-1234-040990-K8
Note
Core version
040990
BIOS version
Logs
POST string
D286-1234-121589-K8
Note
Core version
121589
BIOS version
Logs

vendor Quadtel - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs

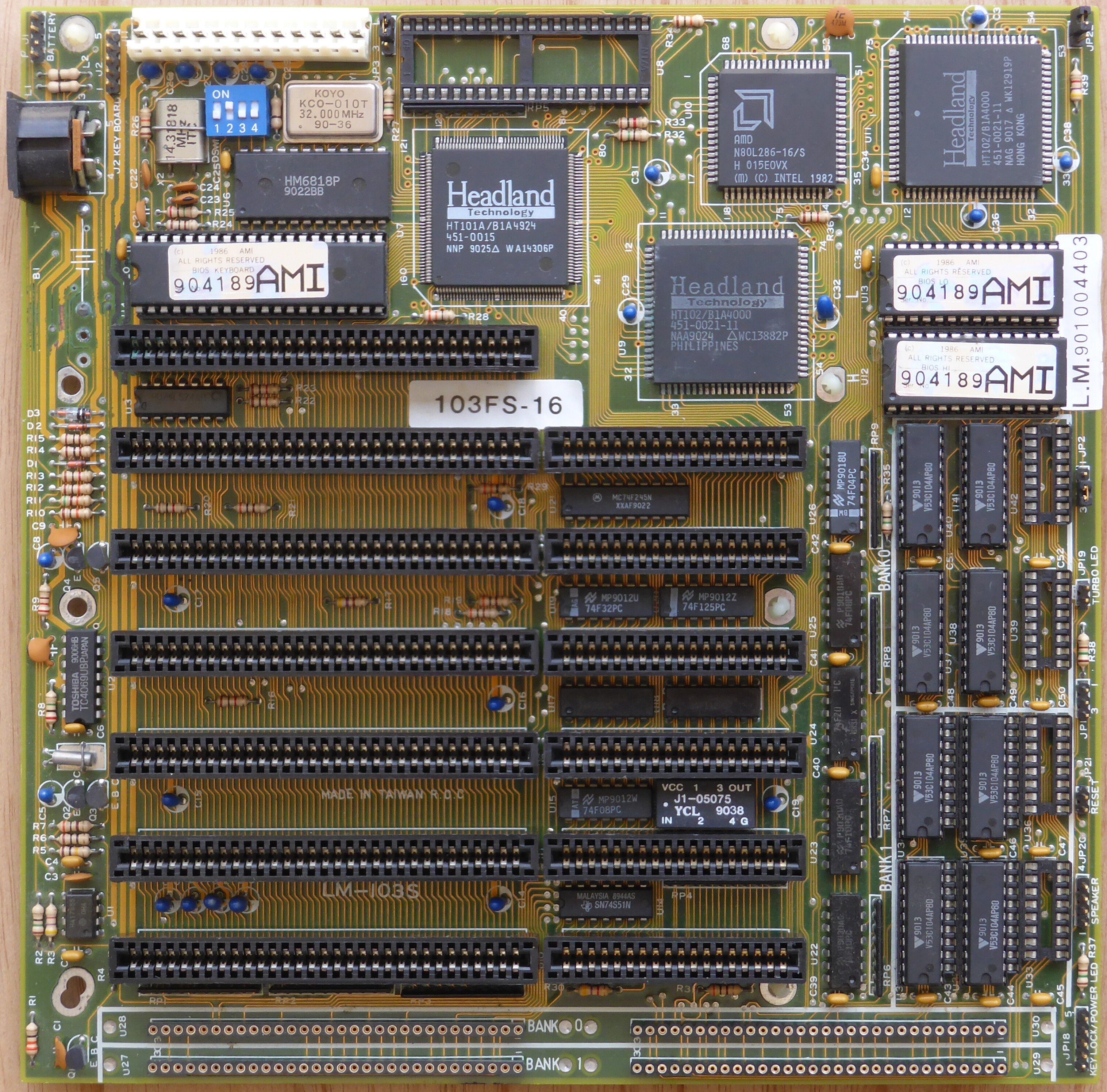

image1 Image 1 of 3 (Nexxen)
image2 Image 2 of 3 (modem7)
image3 Image 3 of 3
