Koloe / Dianji X99E V1.11 (P55)
Chipset
Socket
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
64GB
RAM type DDR4 UDIMM
PSU connector
Also known as
- Huananzhi X99E-K4 (P55)
I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
3x
SATA II
1x
Serial
8x
USB 2.0
2x
USB 3.0
Expansion slots1x
M.2 (M key)
1x
PCIe x1
1x
PCIe x16
Known issues
- Falsely advertised chipset
This motherboard uses a different chipset than the one advertised by the vendor. In most cases, a lower tier chipset was used in order to save costs. It is likely that the board may not have the same levels of performance as one equipped with genuine parts.
Beware that issues regarding BIOS and driver compatibility may arise as well, so double check with any hardware reporting software what chipset is actually installed on the board before proceeding any further.
Last updated 2025-09-07T22:08:08Z
Board info score is 7.4/10
Chips
-> Chipset part
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-091015-Chipset-0AAAA000
Note
Huananzhi Bios
Core version
UEFI
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

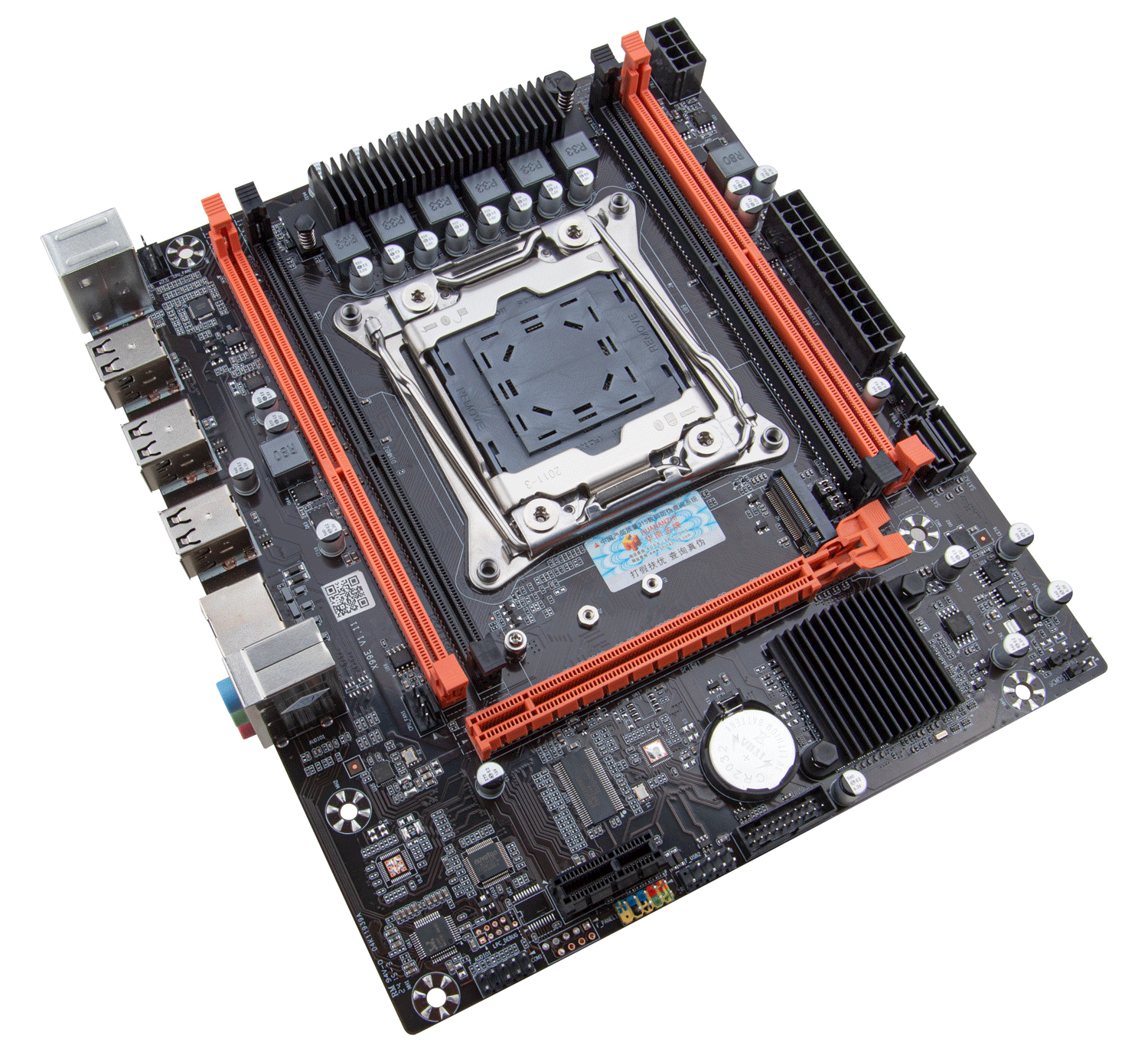

Image 1 of 3 (Huananzhi)

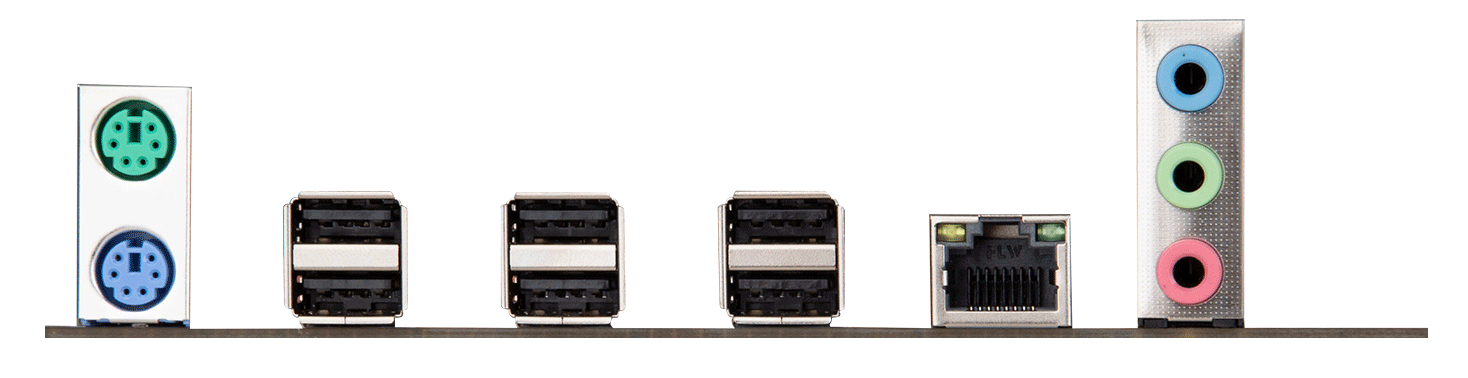

Image 2 of 3 (Huananzhi)

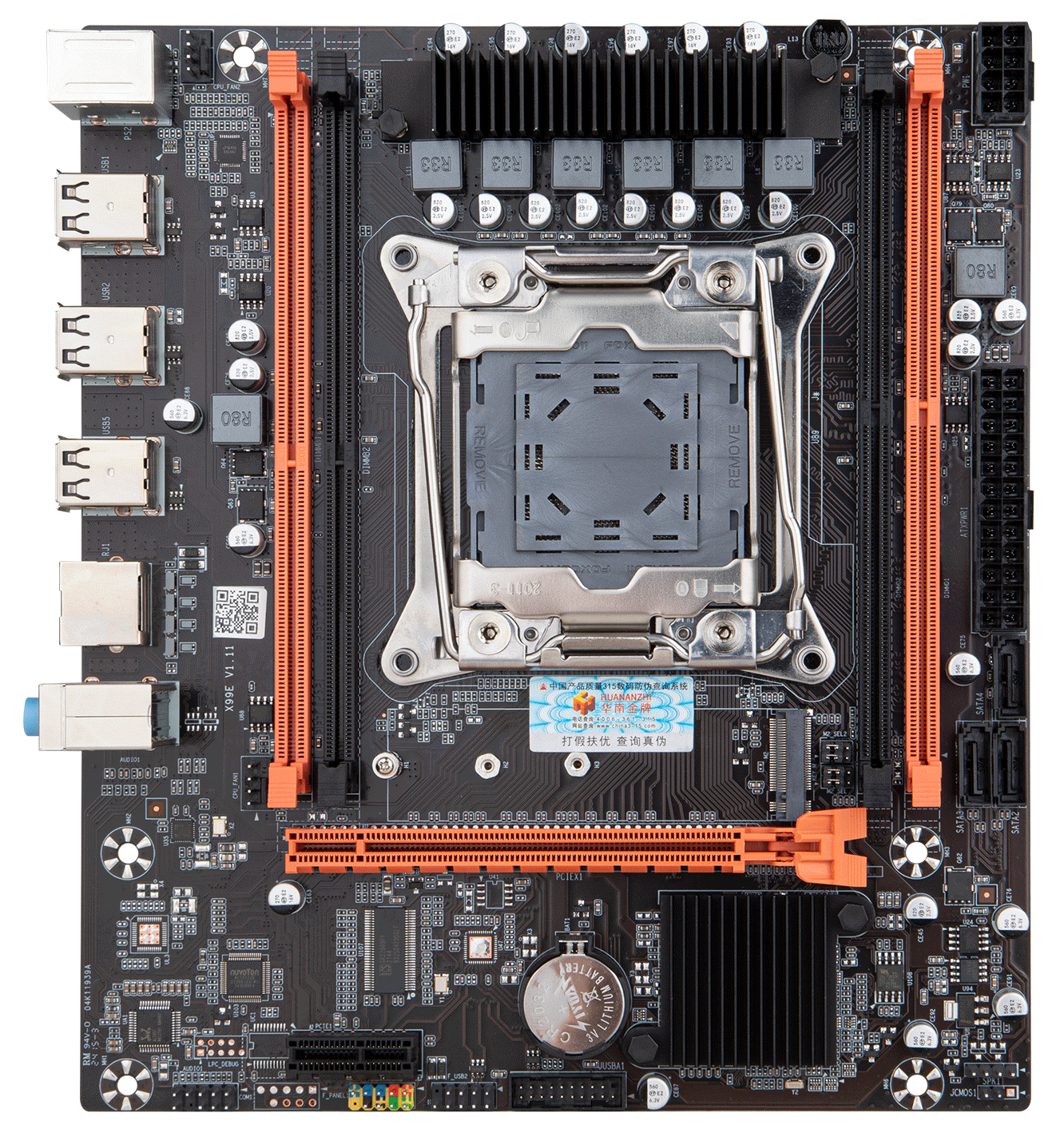

Image 3 of 3 (Huananzhi)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
