JUKO B032
Chipset
Sockets
FSB speed 25MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions220mm x 220mm
Cache
None/Integrated in the CPU
Max RAM size
16MB
RAM type 30-pin SIMM
PSU connector
Also known as
- JUKO 153-302970-00
I/O ports1x
AT Keyboard
Expansion slots5x
16-bit ISA
1x
8-bit ISA
Last updated 2025-07-30T13:46:57Z
Board info score is 7.9/10
Chips
-> Chipset part
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
30-0301-428002-00101111-121291-OPSXPI
Note
Core version
121291
BIOS version
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

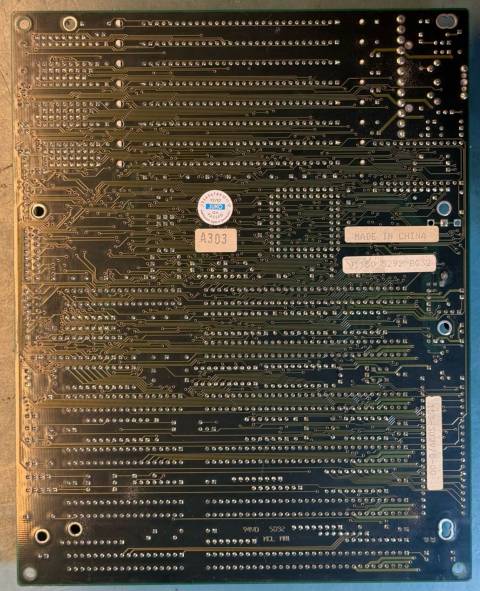

Image 1 of 2 (Inbar)

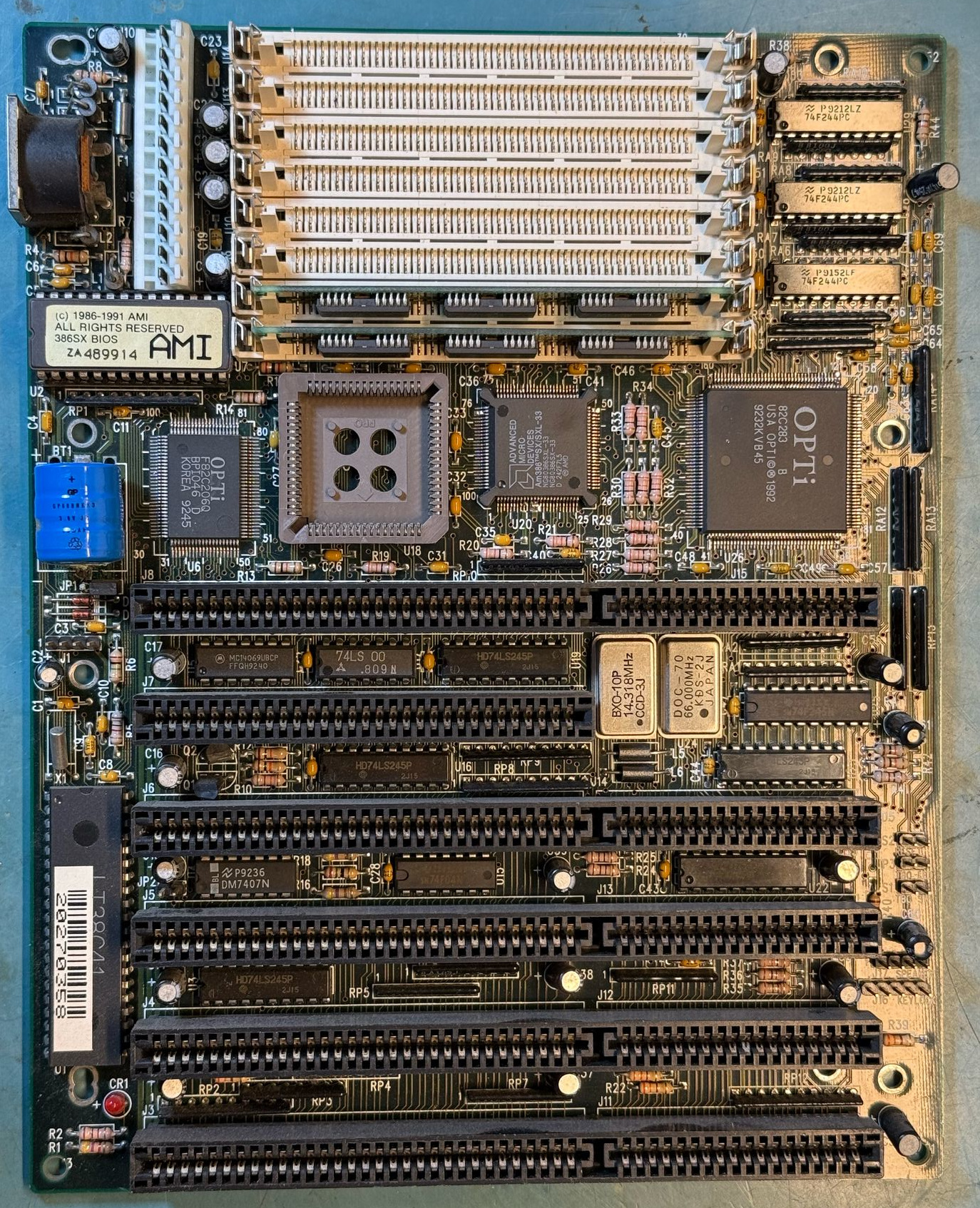

Image 2 of 2 (Inbar)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
