JGINYUE X79 GAMING 8
Logs
chipChipset
cpuSocket
Socket R (LGA2011-0)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
285mm x 220mm
chipCache
None/Integrated in the CPU
ramMax RAM size
128GB
ramRAM types
DDR3 UDIMMDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
4x
SATA II
2x
SATA III
12x
USB 2.0
4x
USB 3.0
cardExpansion slots
2x
M.2 (M key)
1x
PCIe x1
2x
PCIe x16
1x
PCIe x4
Last updated 2025-06-24T18:46:35Z
Board info score is 5.5/10
chip Chips
-> Chipset part
Intel BD82X79 (PCH)
cpufam CPU family support
Empty
bios 0 BIOS files available
drv No drivers available
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

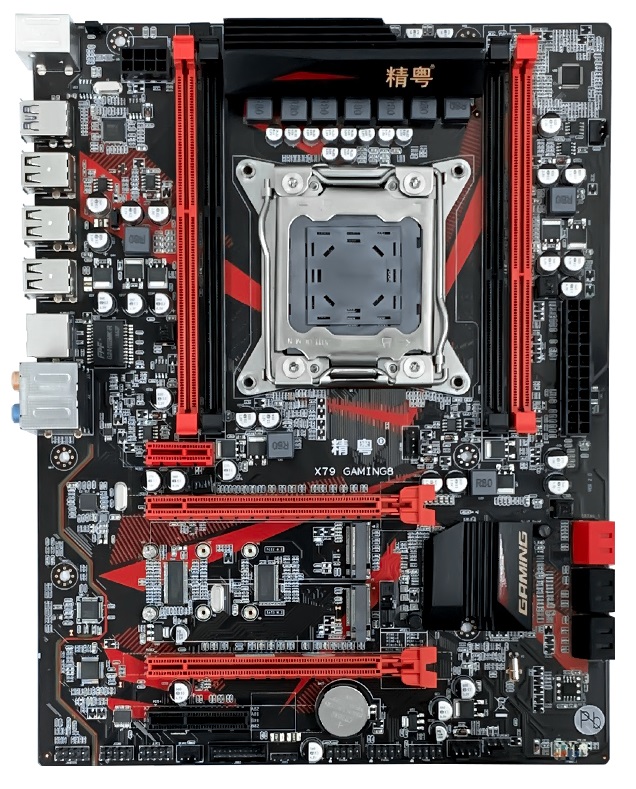

image1 Image 1 of 3 (JGINYUE)

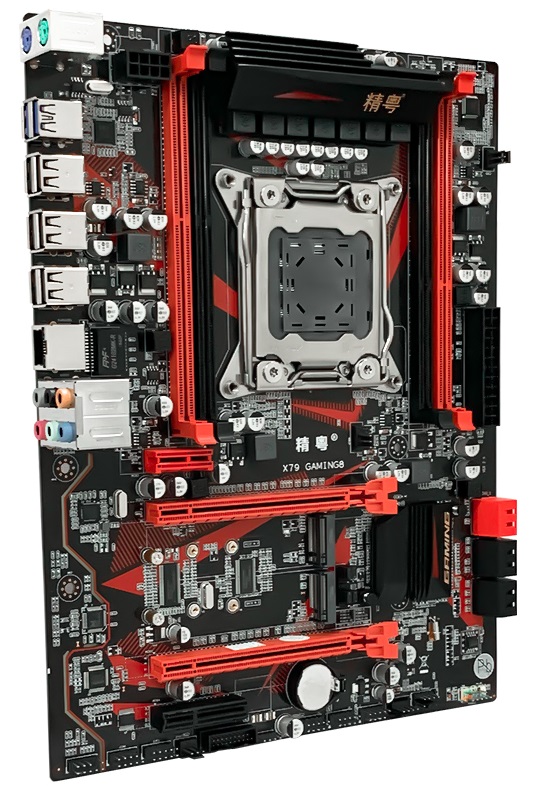

image2 Image 2 of 3 (JGINYUE)

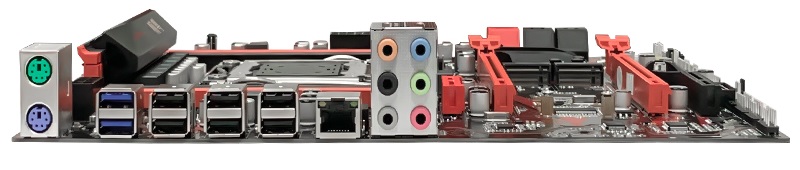

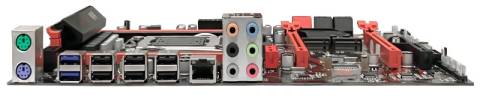

image3 Image 3 of 3 (JGINYUE)
