Jetway XBLUE-77A2
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
295mm x 200mm
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

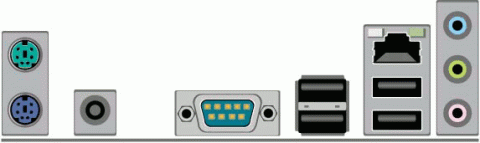

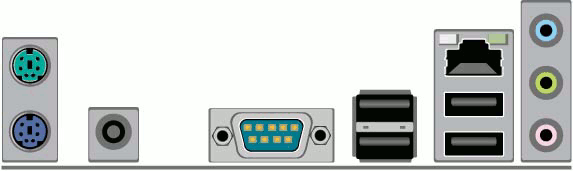

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
Last updated 2025-05-30T20:13:15Z
Board info score is 9.2/10
bios 20 BIOS files available

vendor AMI - 11 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-080211-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-060310-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-042910-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-031210-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-120809-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-102809-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-092809-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-081409-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-061609-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-060909-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-000001-00101111-050509-ATHLON64-2AEGCJ12
Note
Core version
080015
BIOS version
Logs

vendor Award - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/26/2009-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
08/26/2009-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/24/2009-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
05/06/2009-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/31/2008-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/16/2008-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
10/31/2008-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
09/11/2008-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
08/21/2008-AMD770-SB700-8A66AJ1CC-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

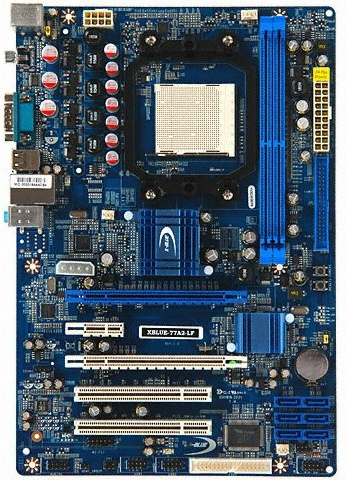

image1 Image 1 of 3 (Jetway)
image2 Image 2 of 3 (Jetway)
image3 Image 3 of 3 (Jetway)
