Jetway PA78GT3-HGD
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 200mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x16
Last updated 2025-05-30T19:59:06Z
Board info score is 9/10
bios 8 BIOS files available

vendor Award - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/01/2009-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
05/19/2009-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
05/19/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
05/08/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/24/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/19/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/07/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/18/2008-RS780-SB700-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

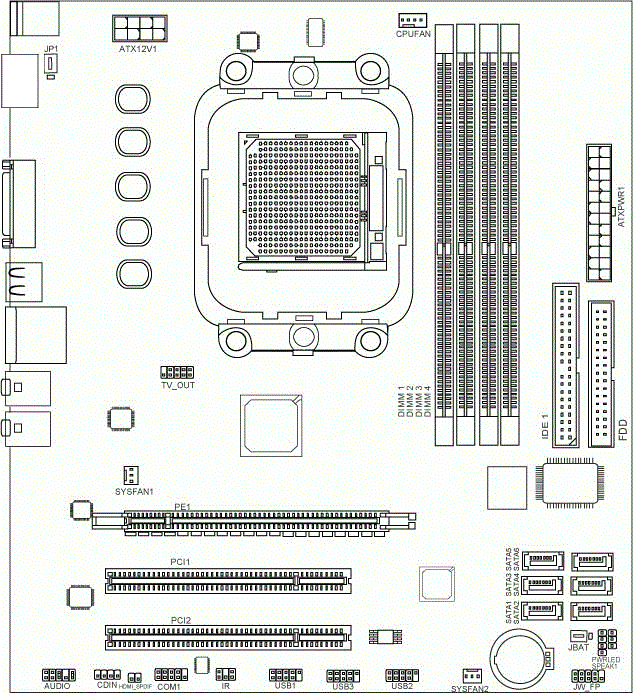

image1 Image 1 of 2 (Jetway)

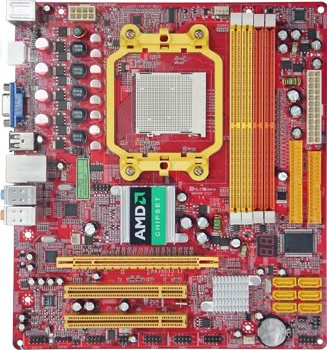

image2 Image 2 of 2 (Jetway)
