Jetway HA03
Logs
chipChipset
cpuSocket
Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

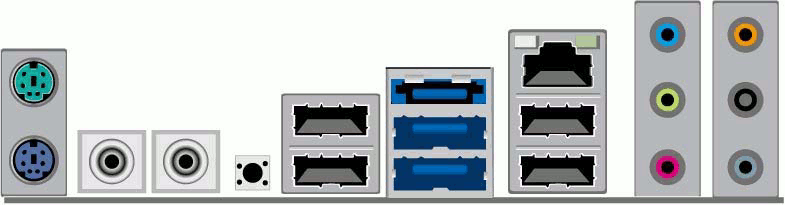

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
notes Notes

Either has option PCIe x16 at full speed with the 2nd PCIe x16@8 being disabled or both PCIe x16 slots running @ x8 speed in SLI mode.

Last updated 2025-05-30T20:00:18Z
Board info score is 9.2/10
bios 9 BIOS files available

vendor Award - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/26/2009-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/19/2009-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/02/2009-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/08/2009-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/16/2008-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/21/2008-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
02/19/2008-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/27/2007-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/13/2007-AMD790X-SB600-6A66AJ1BC-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Jetway)

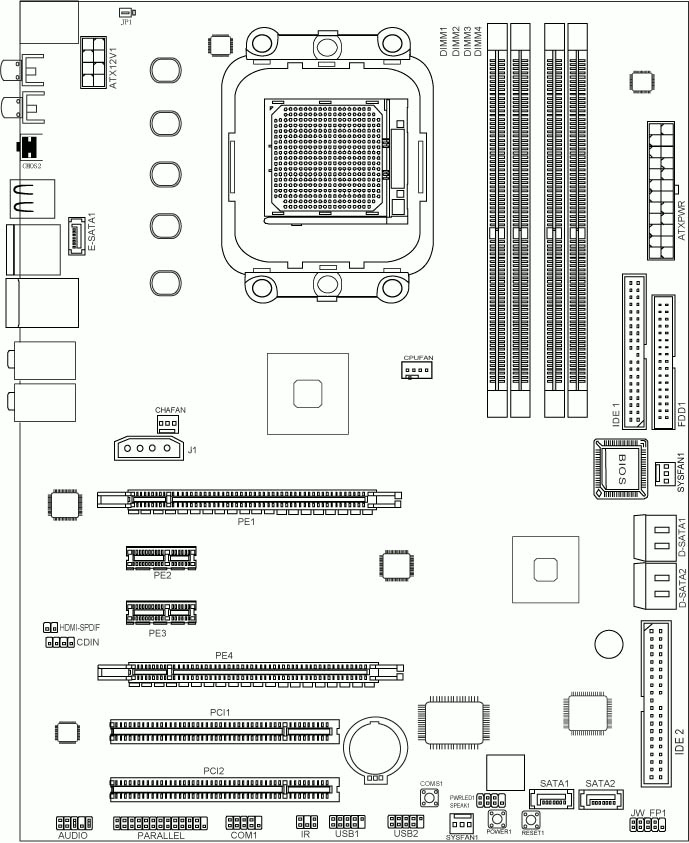

image2 Image 2 of 3 (Jetway)

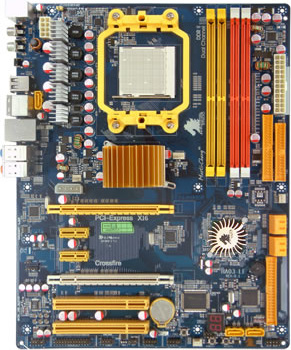

image3 Image 3 of 3 (Jetway)
