Jetway HA02
Chipset
Socket
FSB speed 1000MHz
Form factorATX (max 305 x 244 mm)
Dimensions305mm x 244mm
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type DDR2 UDIMM
PSU connector
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
8x
USB 2.0
1x
eSATA
Expansion slots2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x16 @ x8
Notes
the light blue slot is only suitable for PHYSICS cards. At this time it's unknown what models can be fitted or they even existed in PCIe.
Last updated 2025-05-30T20:19:52Z
Board info score is 8.2/10
Chips
-> Chipset part
-> Audio
-> Network
-> RAID ctrl.
-> Super I/O
CPU family support
4 BIOS files available
Award - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
12/10/2007-RD570-SB600-6A668J1GC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
10/25/2007-RD570-SB600-6A668J1GC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
09/10/2007-RD570-SB600-6A668J1GC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
09/10/2007-RD570-SB600-6A668J1GC-00
Note
Core version
v6.00PG
BIOS version
Logs
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
3.8MB
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
2007-01-09
File
Logs
Chip
Release date
2004-06-04
File
Logs

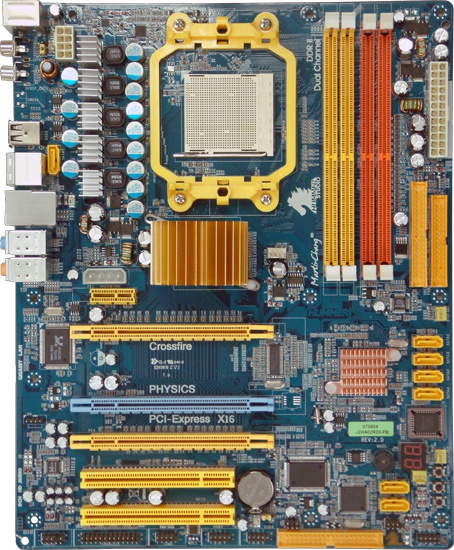

Image 1 of 1 (Jetway)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
