Jetway BA-240
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 200mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
HDMI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
2x
PCIe x16 @ x8
Last updated 2025-05-30T19:58:06Z
Board info score is 9.2/10
bios 10 BIOS files available

vendor Award - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
09/28/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
08/27/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
06/24/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
05/13/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
04/15/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
03/24/2009-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/30/2008-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/22/2008-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
10/28/2008-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
10/16/2008-790GX-SB750-8A660J19C-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

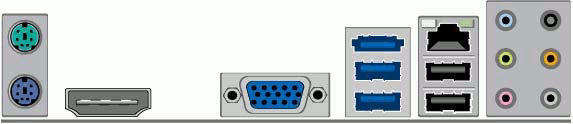

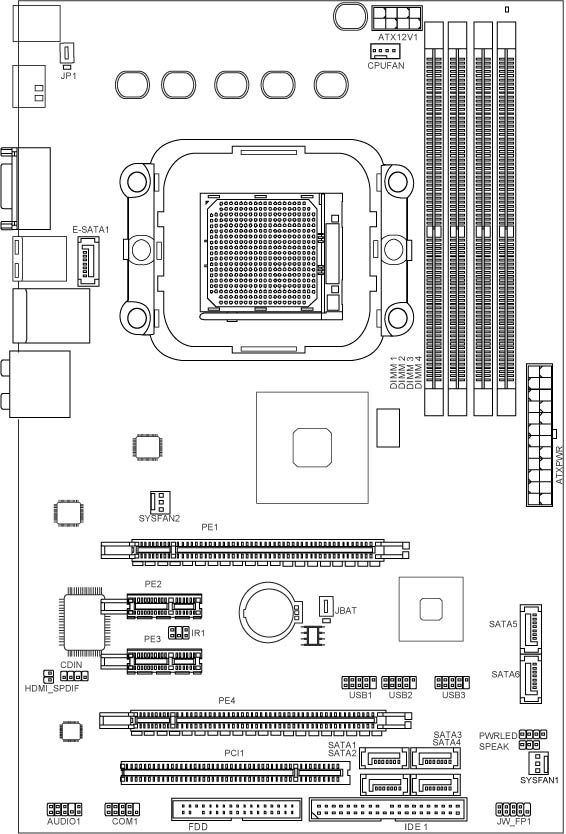

image1 Image 1 of 3 (Jetway)
image2 Image 2 of 3 (Jetway)
image3 Image 3 of 3 (Jetway)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
