J&W/JWELE/JWIPC JW-A740GM-AD2
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
235mm x 185mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-1066)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x16
Last updated 2025-01-05T19:15:52Z
Board info score is 7.7/10
bios 0 BIOS files available
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
11.45.4.3
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
1.8MB
Filename
Name
Version
10.15.9.3
OS support
Empty
Arch
x86
Size
853.1KB
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs

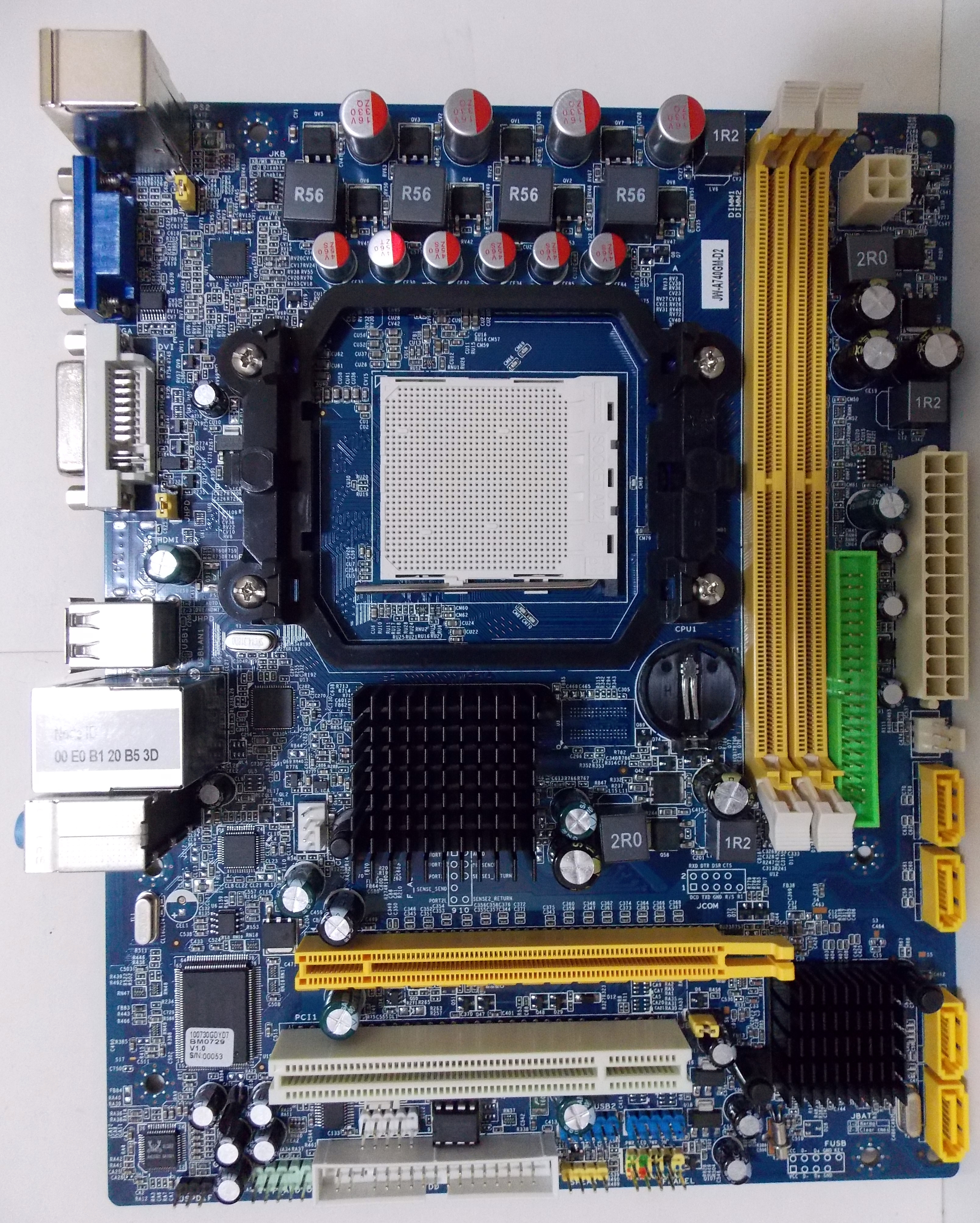

image1 Image 1 of 4

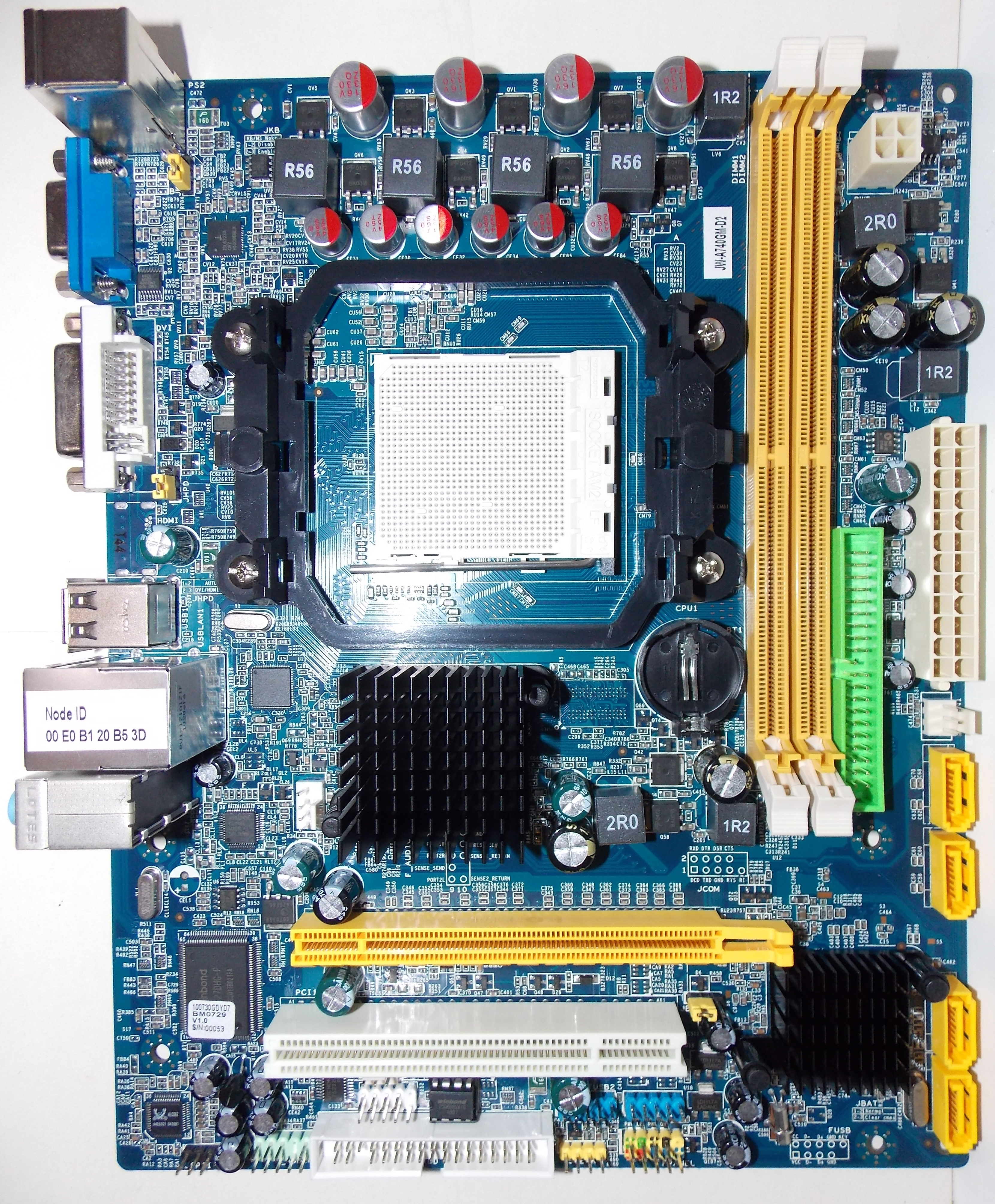

image2 Image 2 of 4 (Petros Savvas)

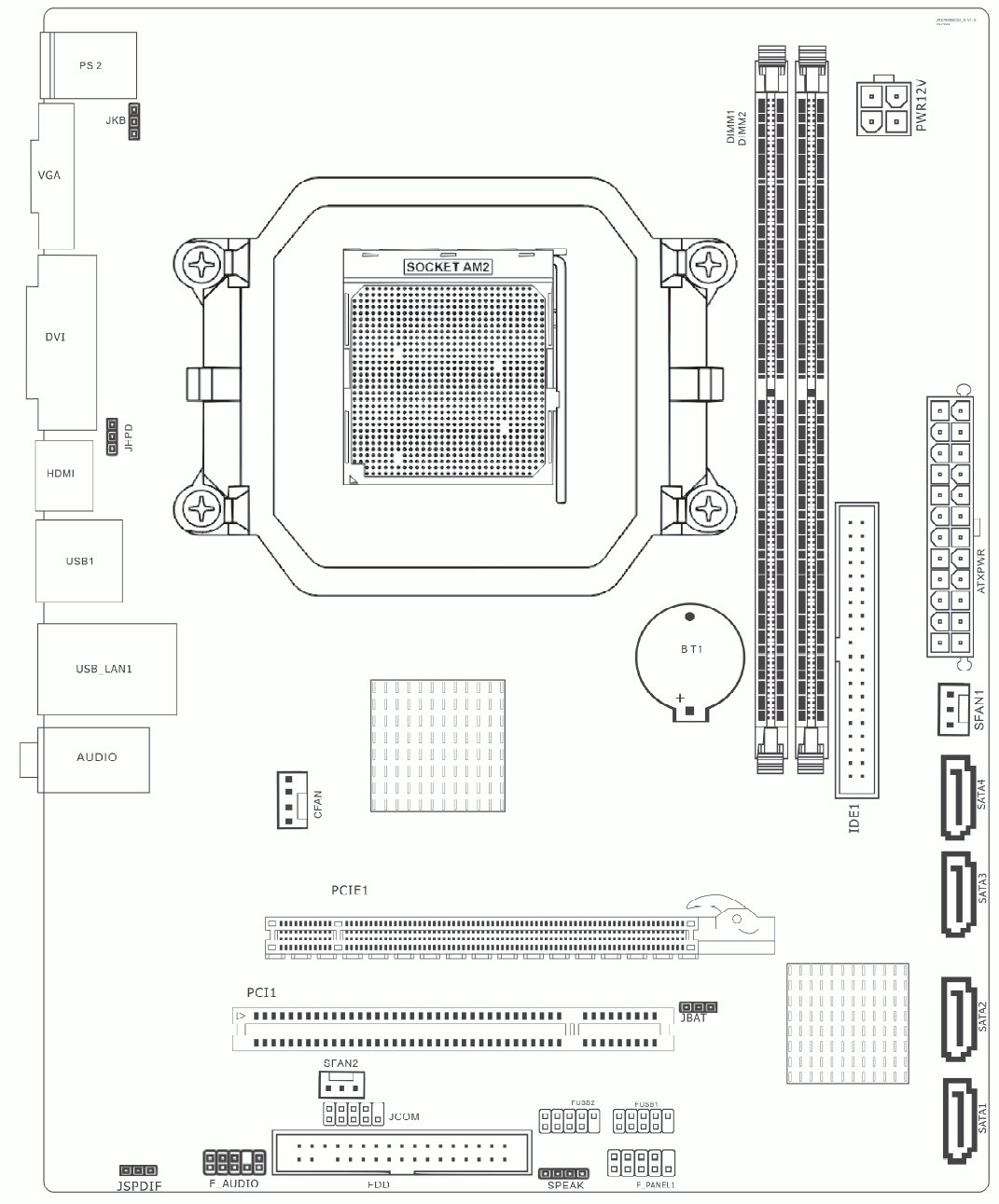

image3 Image 3 of 4 (Petros Savvas)

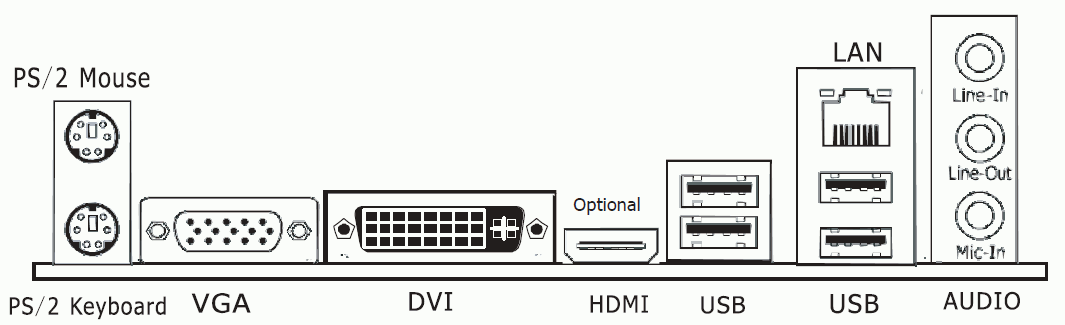

image4 Image 4 of 4
