J-Bond PCI500C-A
Chipset
Socket
FSB speeds 60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Max RAM size
RAM type
PSU connector
Also known as
- J-Bond PCI-500C-A
I/O ports1x
AT Keyboard
1x
Internal SCSI
Expansion slots4x
16-bit ISA
4x
32-bit PCI
Known issues
- DALLAS RTC coin cell empty
The motherboard's Real-Time Clock (RTC) chip contains a coin cell that may have drained, causing the loss of CMOS settings. This can result in an inability to save settings, causing system instability or failure to boot. To fix this, the RTC chip can be replaced with an equivalent or repaired by cutting into it and soldering on a new external coin cell holder. Replacement guides are available at https://github.com/necroware/nwX287 or https://github.com/necroware/nw12887, depending on the actual chip used.
Last updated 2024-01-25T21:09:12Z
Board info score is 8.8/10
Chips
-> Chipset part
-> Real-Time Clock
-> SCSI ctrl.
CPU family support
1 BIOS file available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.0
OS support
MS-DOS
Arch
x86
Size
363.7KB
Filename
Name
Version
4.0
OS support
Windows 3.1x
Arch
x86
Size
402.3KB
Filename
Name
Version
4.13
OS support
Windows 9x
Arch
x86
Size
35.3KB
Filename
Name
Version
4.13
OS support
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
100.8KB
Filename
Name
Version
4.13
OS support
Windows NT 3.5x
Windows NT 4.0
Arch
ALPHA
Size
46KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

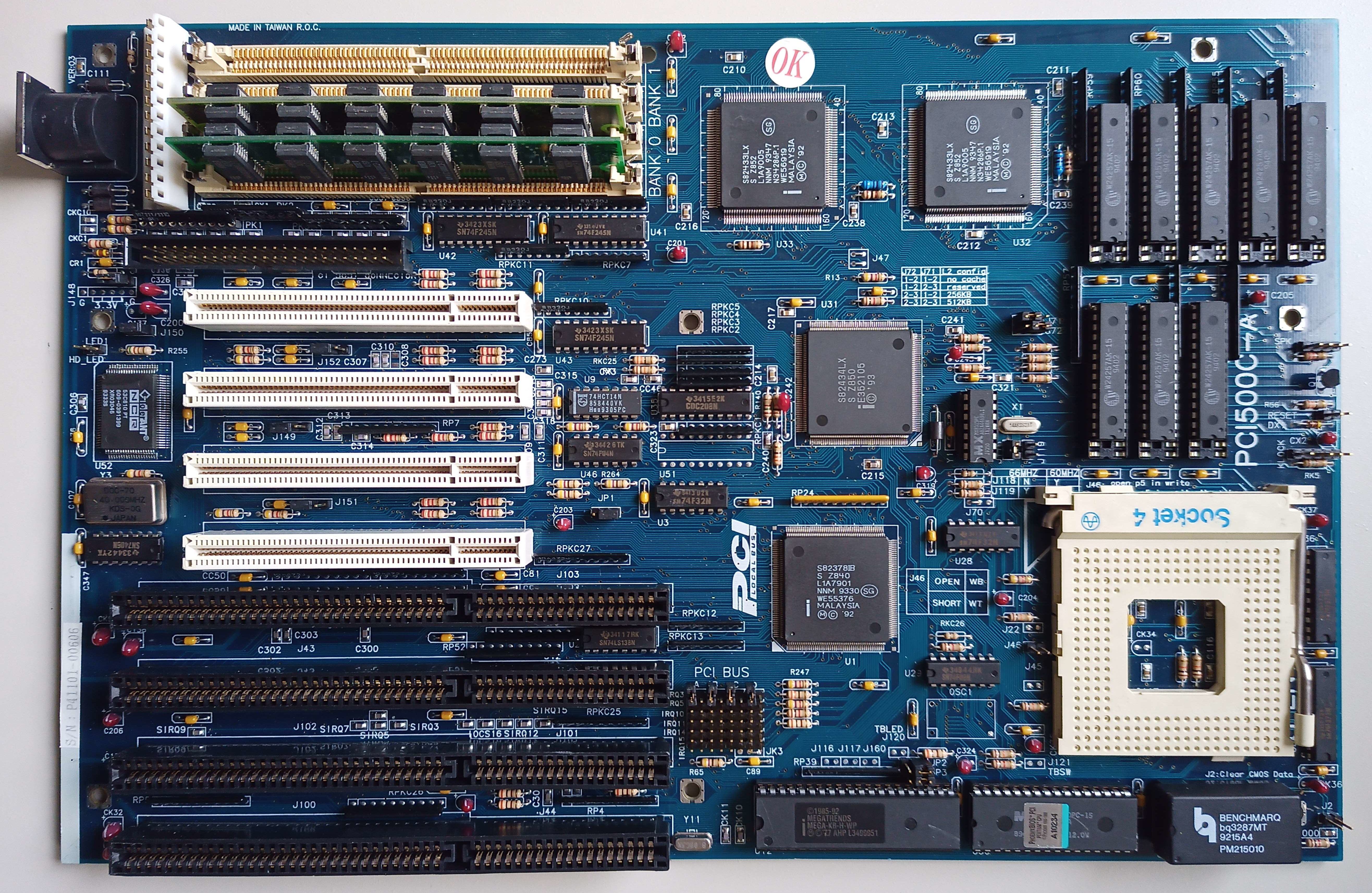

Image 1 of 3 (Microhouse)

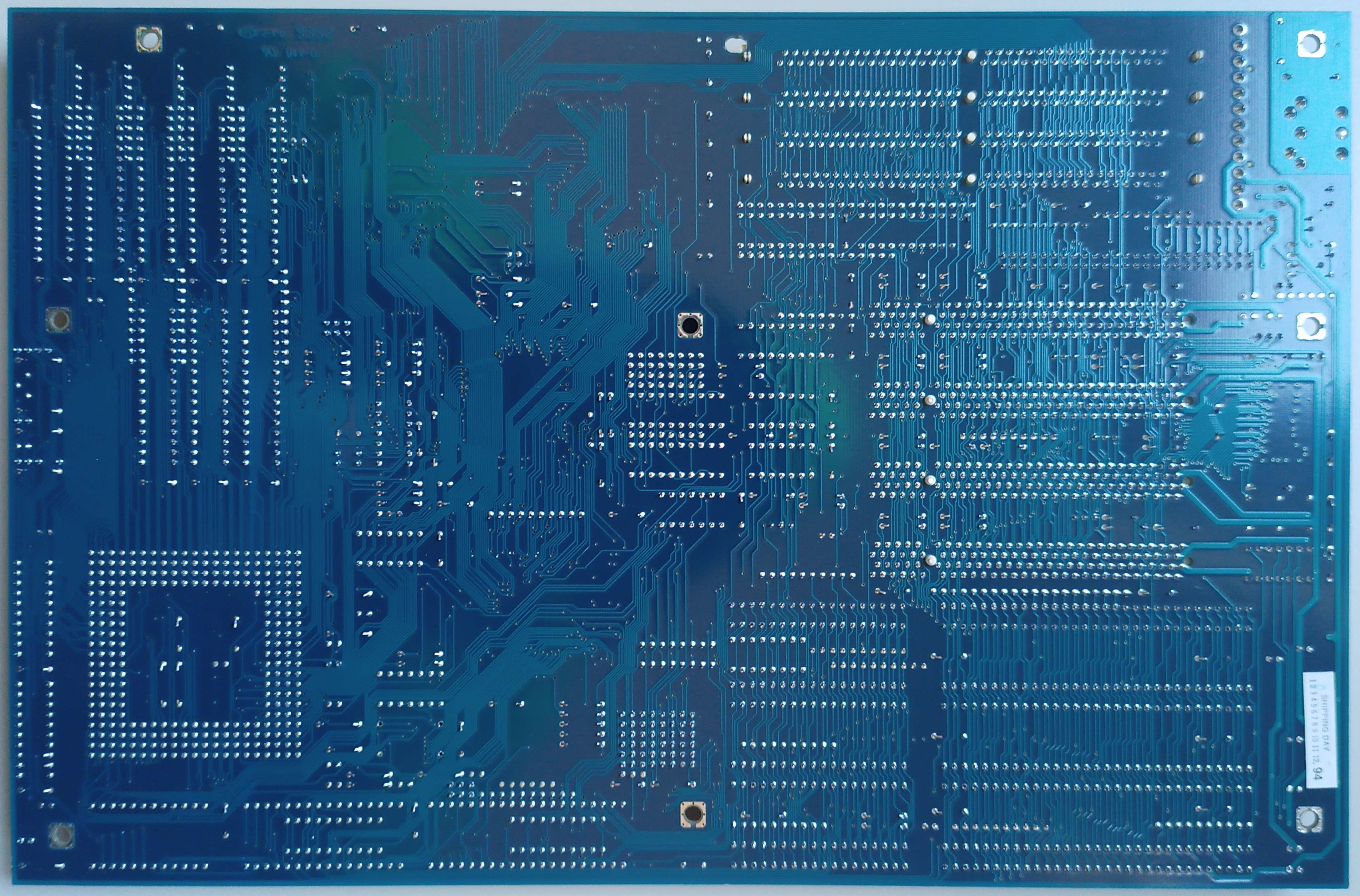

Image 2 of 3 (matt)
Image 3 of 3 (matt)
