J-Bond PCI400C-C
Chipset
Socket
FSB speeds 20MHz25MHz33MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions279mm x 220mm
Cache
128KB256KB512KB1MB
Max RAM size
128MB
RAM type 72-pin FPM
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
Parallel
2x
Serial
Expansion slots4x
16-bit ISA
3x
32-bit PCI
Last updated 2025-01-03T20:18:59Z
Board info score is 9.1/10
Chips
-> Chipset part
CPU family support
2 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/29/96-SiS-496-497/A/B-2A4IBJ31C-02
Note
Core version
4.51G
BIOS version
Logs
POST string
01/29/96-SiS-496-497/A/B-2A4IBJ31C-01
Note
Core version
BIOS version
REV:1.30
Logs
POST string
08/04/95-SiS-496-497/A/B-2A4IBJ31C-00
Note
Core version
4.50G
BIOS version
Logs
2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 Warp 3.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
Empty
Filename
Version
OS support
MS-DOS
NetWare Server 3
OS/2 1.x
Windows 3.0
Windows NT 3.1
Arch
x86
Size
97.9KB
Filename
3 board documents available
Release date
File
Logs
Family
Release date
File
Logs

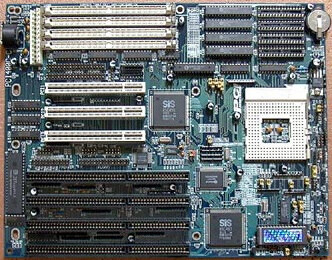

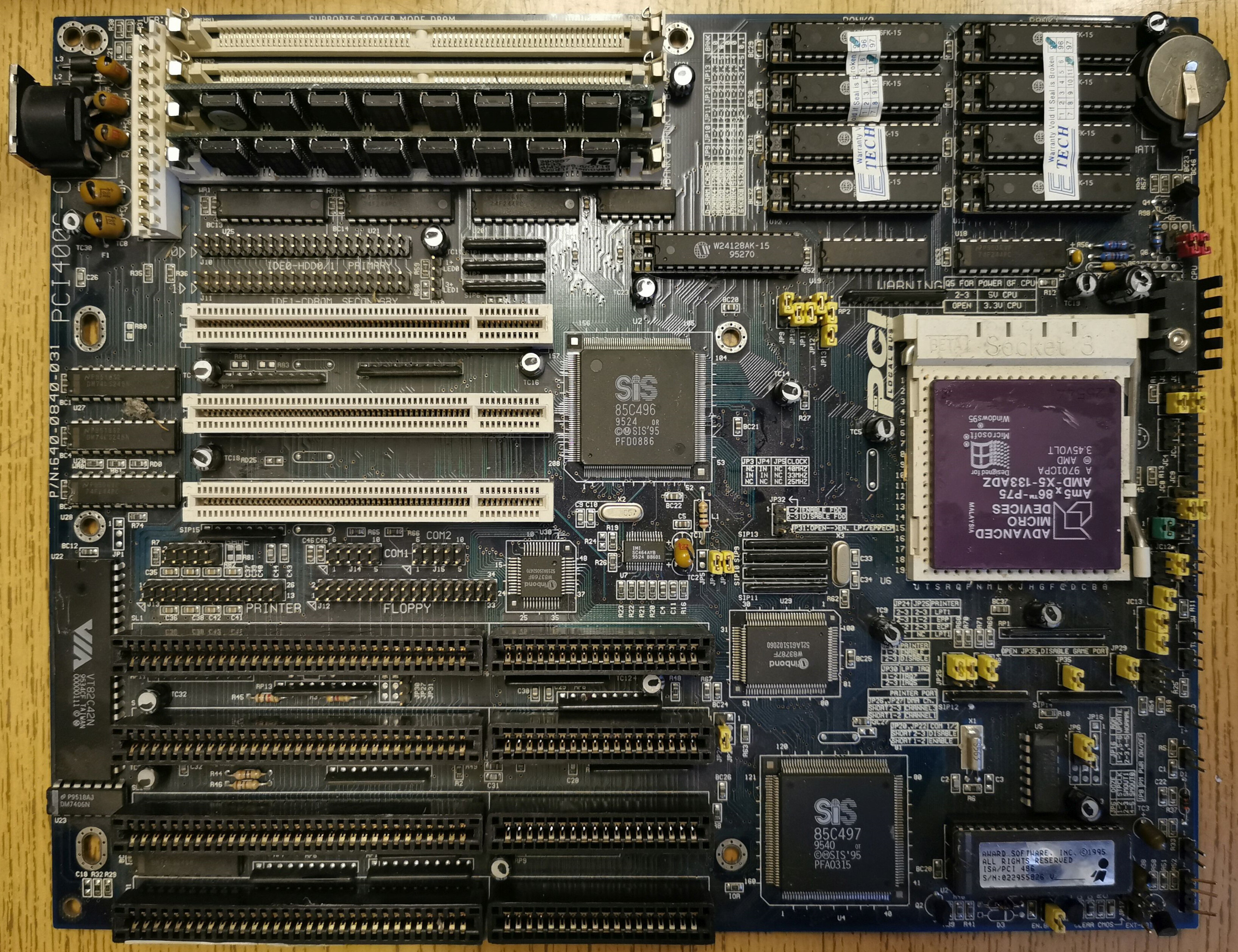

Image 1 of 3 (Microhouse)
Image 2 of 3 (AT House)
Image 3 of 3 (HanJammer)
