Iwill DN800
Logs
chipChipset
cpuSocket
Socket 604 (mPGA604)
speedFSB speed
800MHz
moboForm factor
Enhanced Extended ATX/EEATX (max 347 × 330 mm)
dimDimensions
305 x 255 mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB(@ DDR-333)
ramRAM type
DDR RDIMM ECC
pwrPSU connector
12V EPS Connector (24-pin EPS) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs

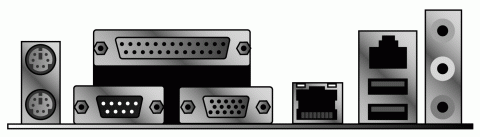

connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
2x
SATA I
1x
SSI Control Panel header
1x
Serial
4x
USB 2.0
cardExpansion slots
1x
32-bit PCI
2x
64-bit PCI-X
1x
PCIe x16
1x
PCIe x8 @ x4
wrench Known issues
  • Server Board - requires airflow over VRM for safe operation

Adequate airflow across the VRM is necessary for stable and secure operation of this server motherboard.

  • Server Board - requires airflow over chipset for safe operation

Ensure proper airflow over the chipset to maintain the stability and safety of this server motherboard.

  • Known DRAM compatibility problems

This motherboard has reported instances of incompatibility with certain DRAM modules. Consult your manual for validated memory modules, otherwise some experimentation is necessary to find a set of compatible modules.

Last updated 2024-08-02T21:17:14Z
Board info score is 9.6/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-022305-LINDENHUR-DN800112
Note
Core version
080010
BIOS version
Logs
POST string
63-0100-000001-00101111-071604-LINDENHUR-0ABEO09A
Note
Core version
080010
BIOS version
Logs
POST string
63-0100-000001-00101111-031105-LINDENHUR-ND800110
Note
Core version
080010
BIOS version
Logs
POST string
63-0100-000001-00101111-091404-LINDENHUR-0ABEO09A
Note
Core version
080010
BIOS version
Logs
POST string
63-0100-000001-00101111-062504-LINDENHUR-0ABEO09A
Note
Core version
080010
BIOS version
Logs
drv 9 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
4.00.041
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
144.8KB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Chip
Release date
2006-06-09
File
Logs
Chip
Release date
1998-09-25
File
Logs
Family
Release date
File
Logs
Family
Release date
2006-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2005-03
File
Logs

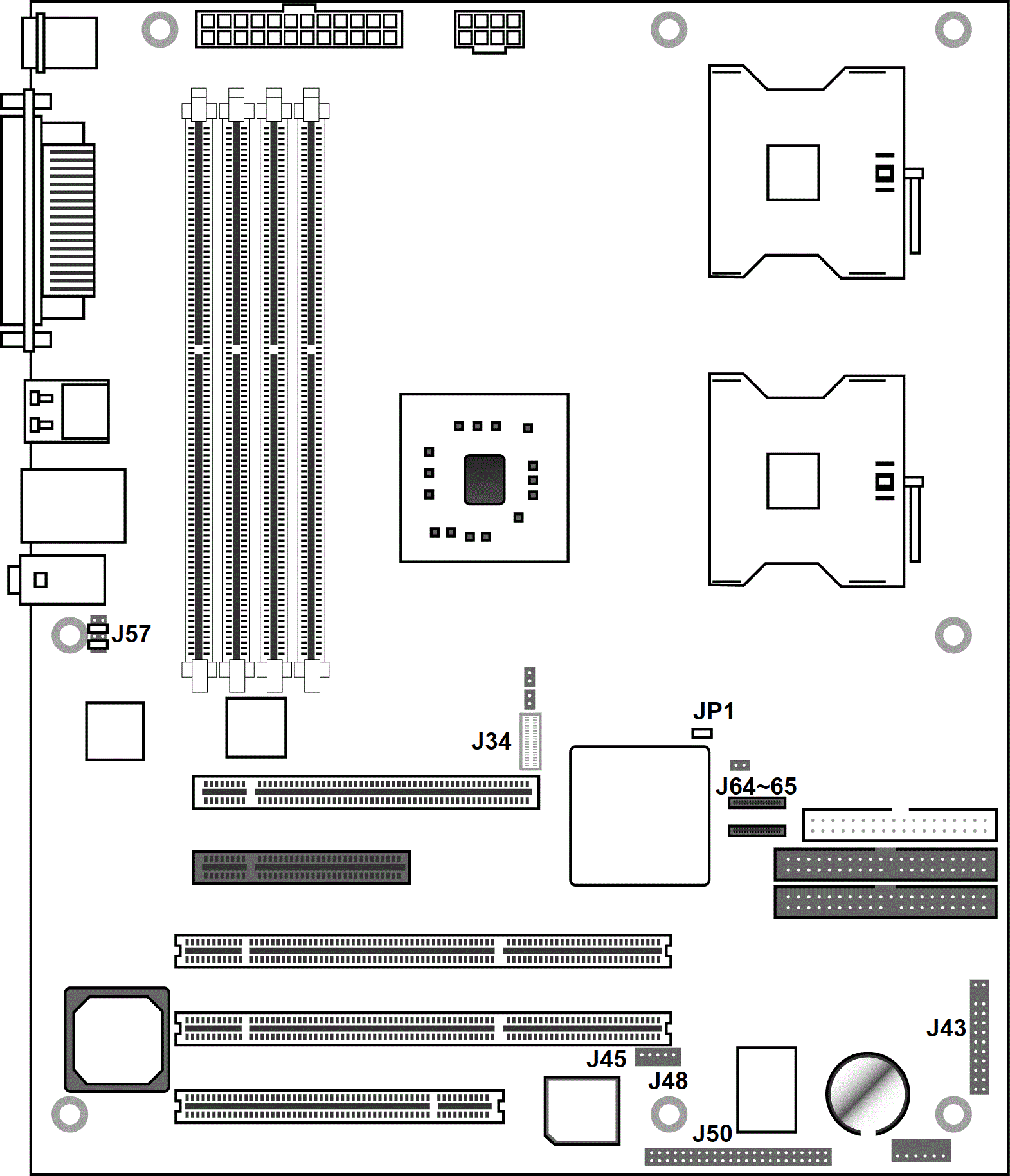

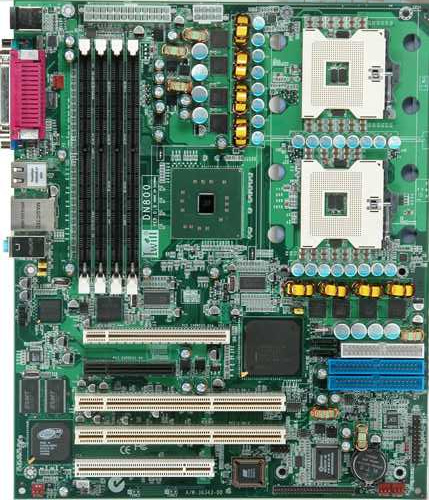

image1 Image 1 of 3
image2 Image 2 of 3
image3 Image 3 of 3

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
