Intel WS440BX (Warm Springs)
Chipset
Socket
FSB speeds 66MHz100MHz
Form factorATX (max 305 x 244 mm)
Dimensions304 mm x 208 mm
Cache
None/Integrated in the CPU
Max RAM size
768MB
RAM type SDR UDIMM
PSU connector
Also known as

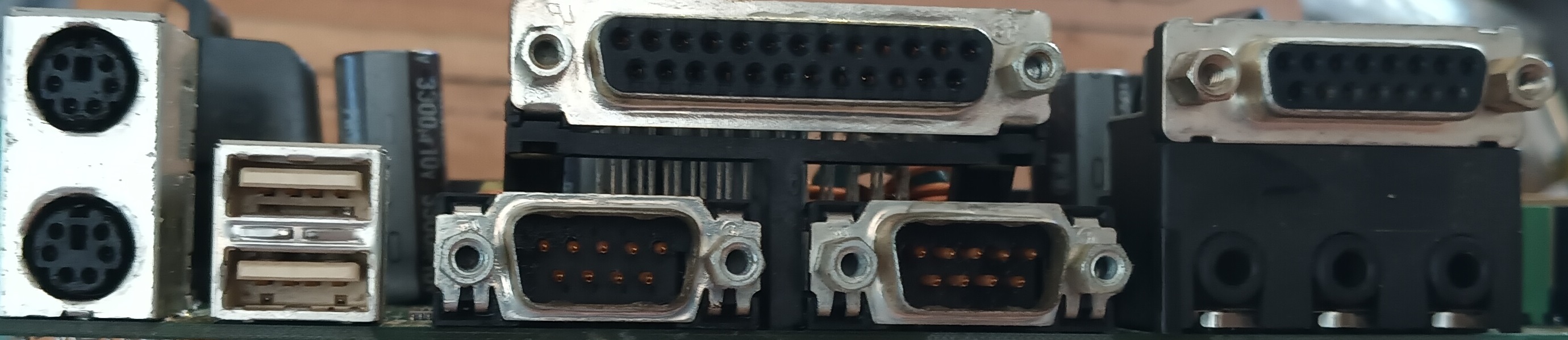

I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
SB_Link
2x
Serial
2x
USB 1.x
Expansion slots1x
16-bit ISA
1x
3.3V AGP
5x
32-bit PCI
Notes
Lan and audio are optional
Gateway OEM board (4000402, 4000418, 4000432, 4000434, 4000446, 4000472, 4000484, 4000485, 4000501, 4000502, 4000503, 4000504, 4000509, 4000510 4000532 , 4000533, 4000585, 4000586, 4000608, and 4000614). Optional Creative AudioPCI. Coppermine support in later revisions https://web.archive.org/web/20000304174855/http://www.gateway.com/support/manlib/cmponts/sysboard/8504321/index.htm
Last updated 2025-05-31T20:09:24Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Clock Synth / PLL
-> Miscellaneous
-> Network
-> Power Regulation
-> Signal transmitter/receiver
-> Super I/O
4 BIOS files available
Phoenix - 4 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
4W4SB0X0.15A.0019.P14.0005091032
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
POST string
4W4SB0X0.15A.0013.P08.9904221542
Note
Gateway OEM, raw dump
Core version
Intel
BIOS version
Logs
POST string
4W4SB0X0.15A.0012.P07.9902040903
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
POST string
4W4SB0X0.15A.0006.P04.9810091114
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
17 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.06.1154
OS support
Windows 9x
Windows NT 4.0
Arch
Size
20.9MB
Filename
Name
Version
5.12.01.4107
OS support
Windows 2000
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
3.20.1008
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
6.2
OS support
Linux
MS-DOS
NetWare Server 3
NetWare Server 4
Netware Client32
OS/2 2.x
Windows 2000
Windows 9x
Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Name
Version
2003
OS support
MS-DOS
OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
, x86-64
Size
36.4MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-02
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1998-01
File
Logs
Family
Release date
1999-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-02
File
Logs
Socket
Release date
1997-05
File
Logs

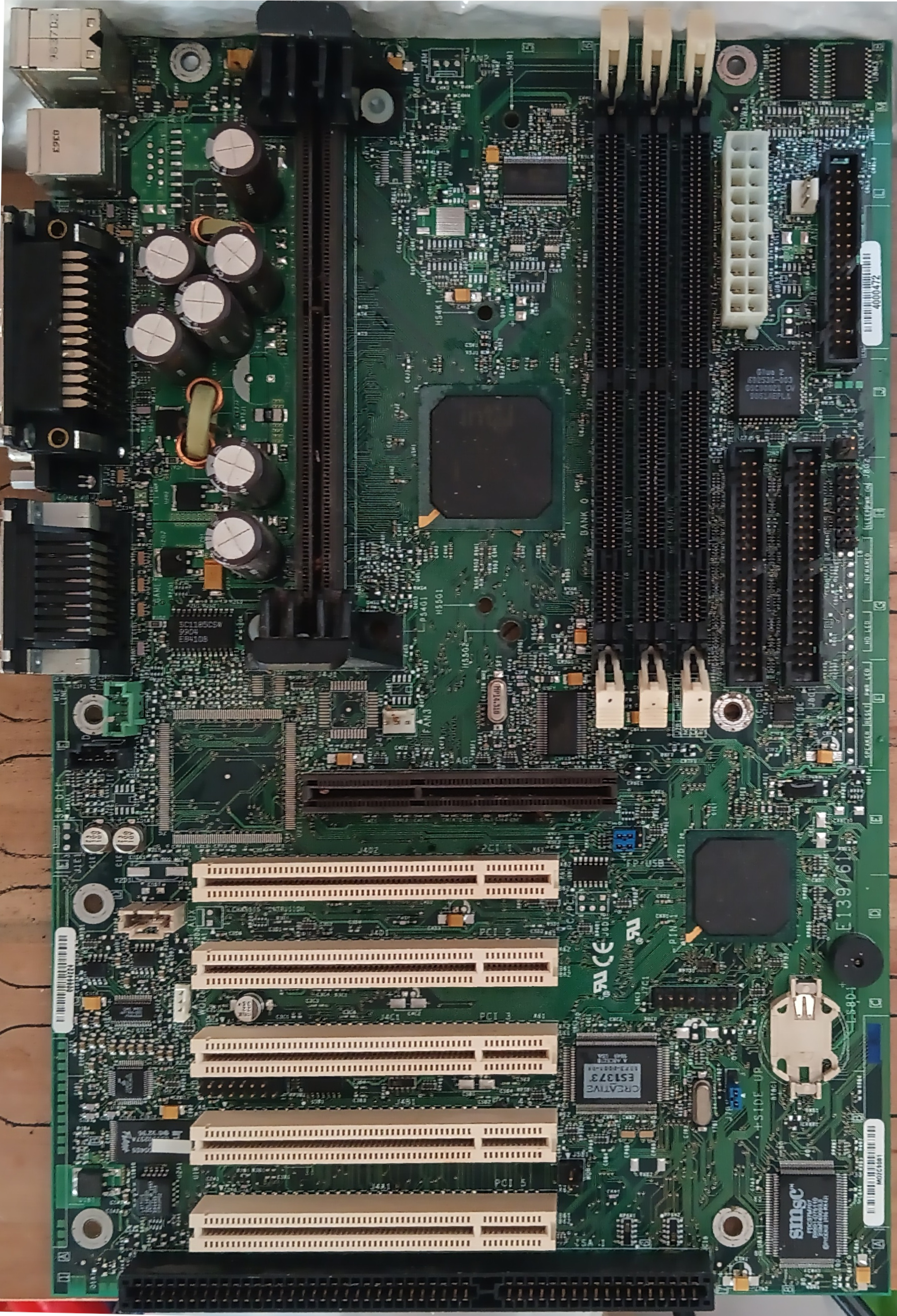

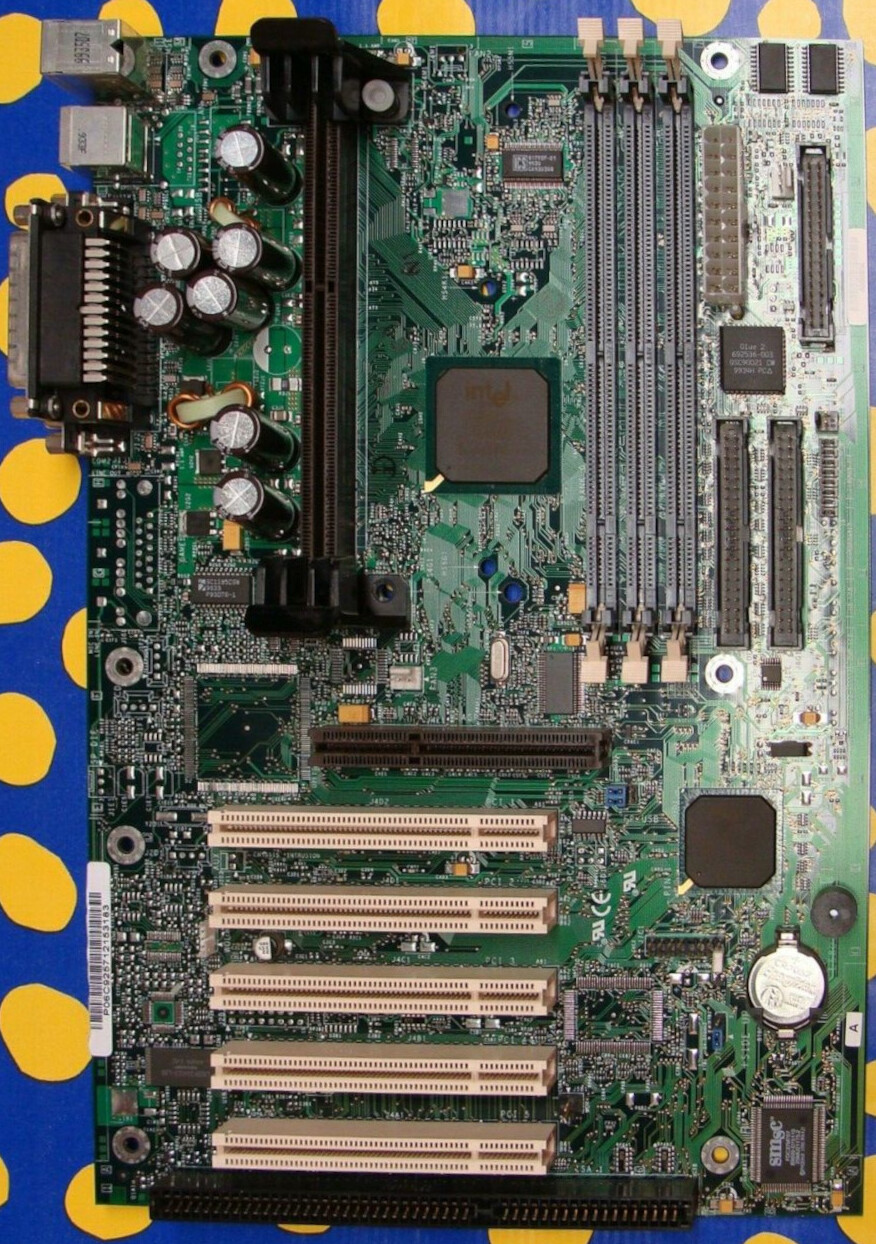

Image 1 of 5 (Microhouse)
Image 2 of 5 (nodaitsu)
Image 3 of 5 (nodaitsu)
Image 4 of 5 (nodaitsu)
Image 5 of 5
