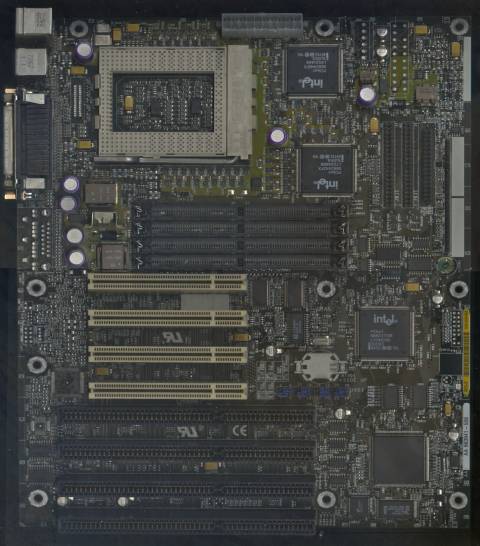

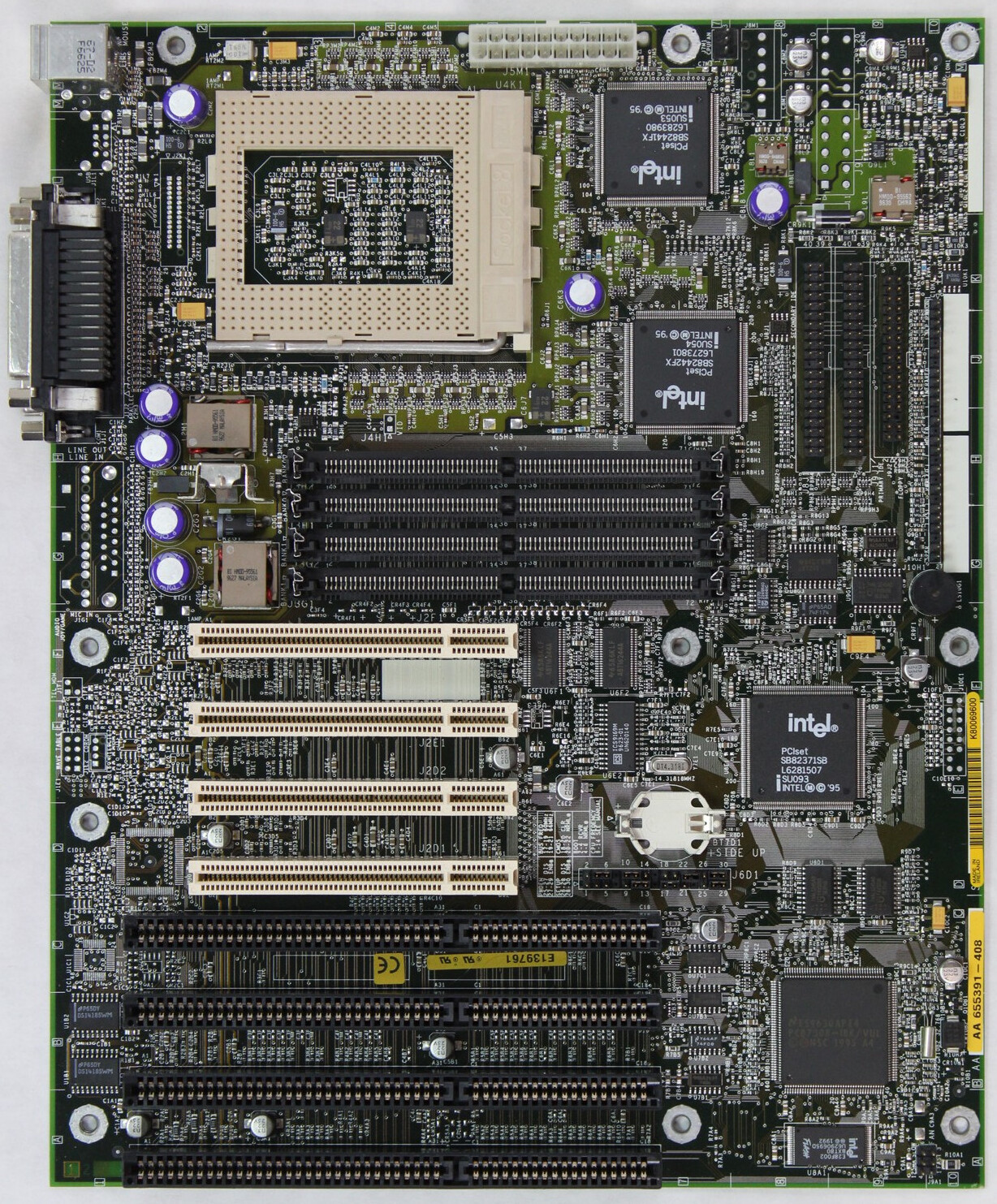

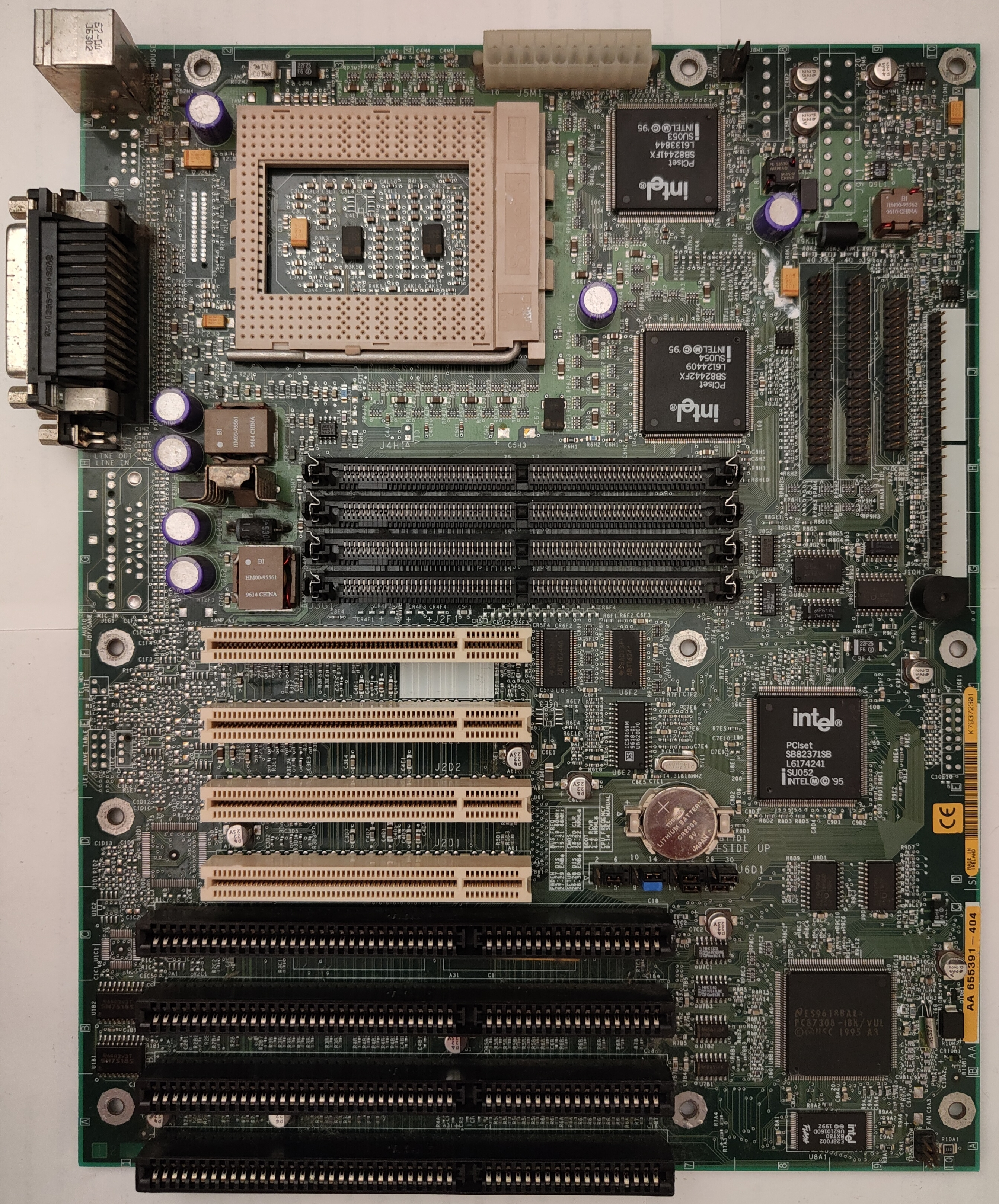

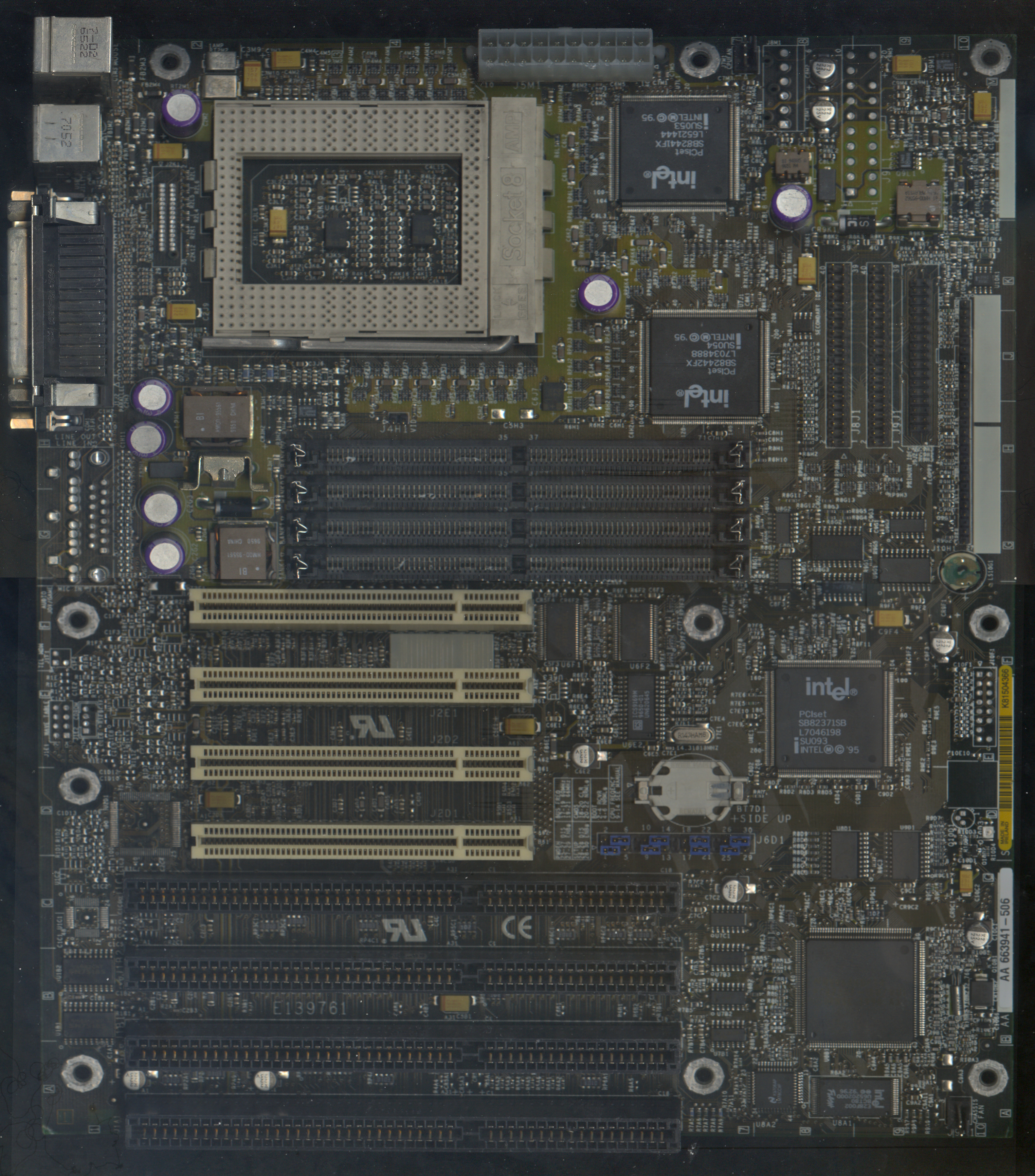

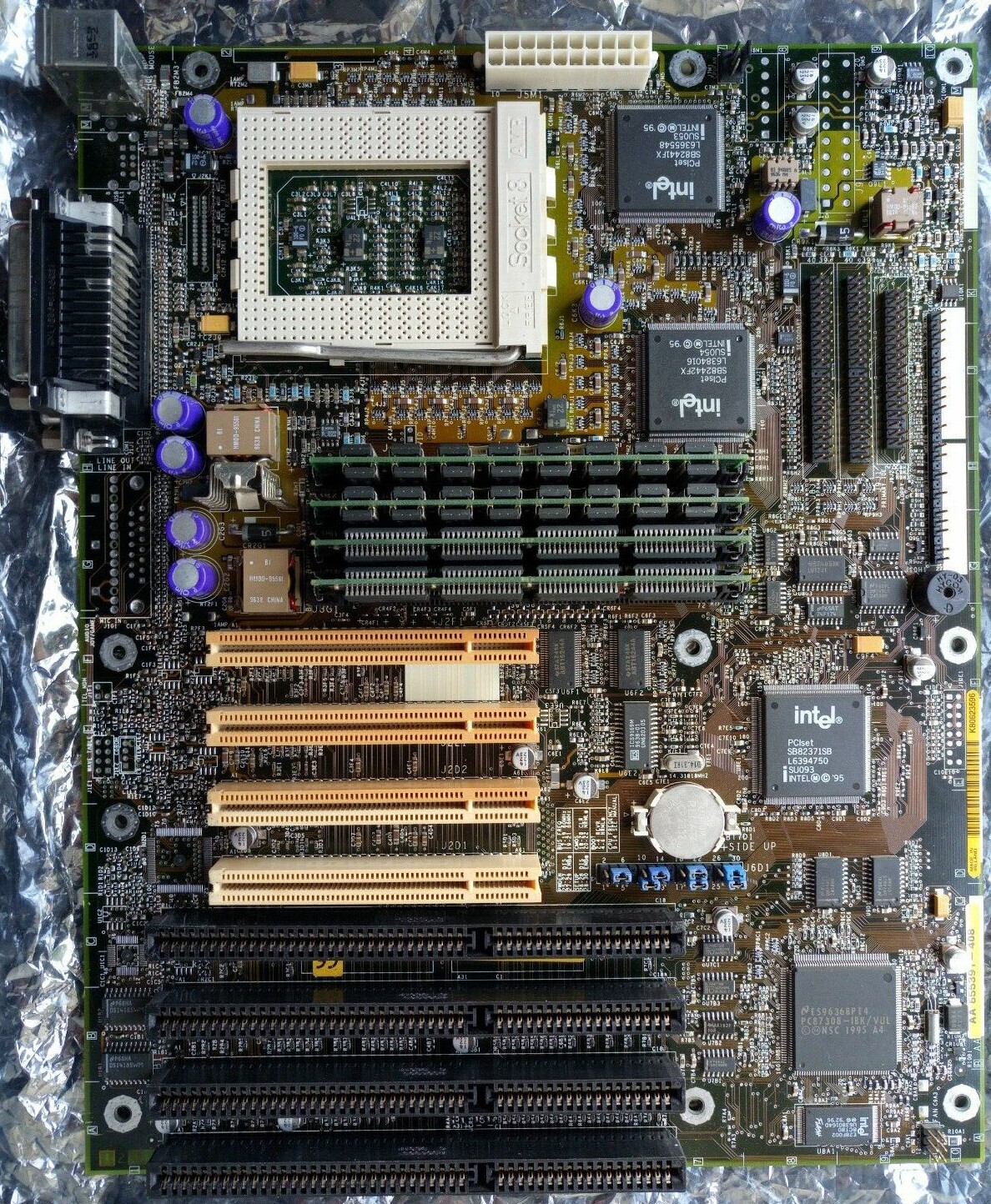

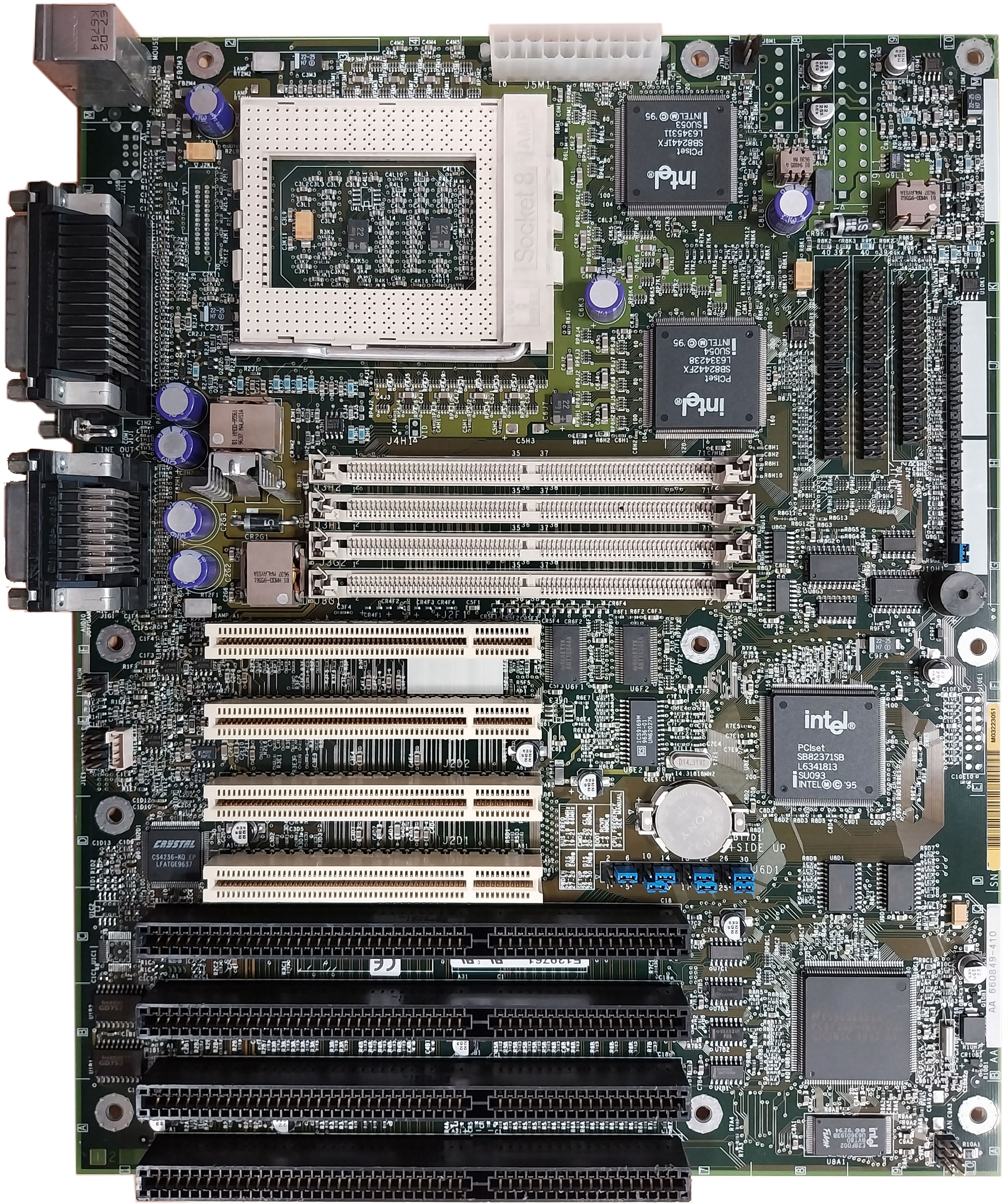

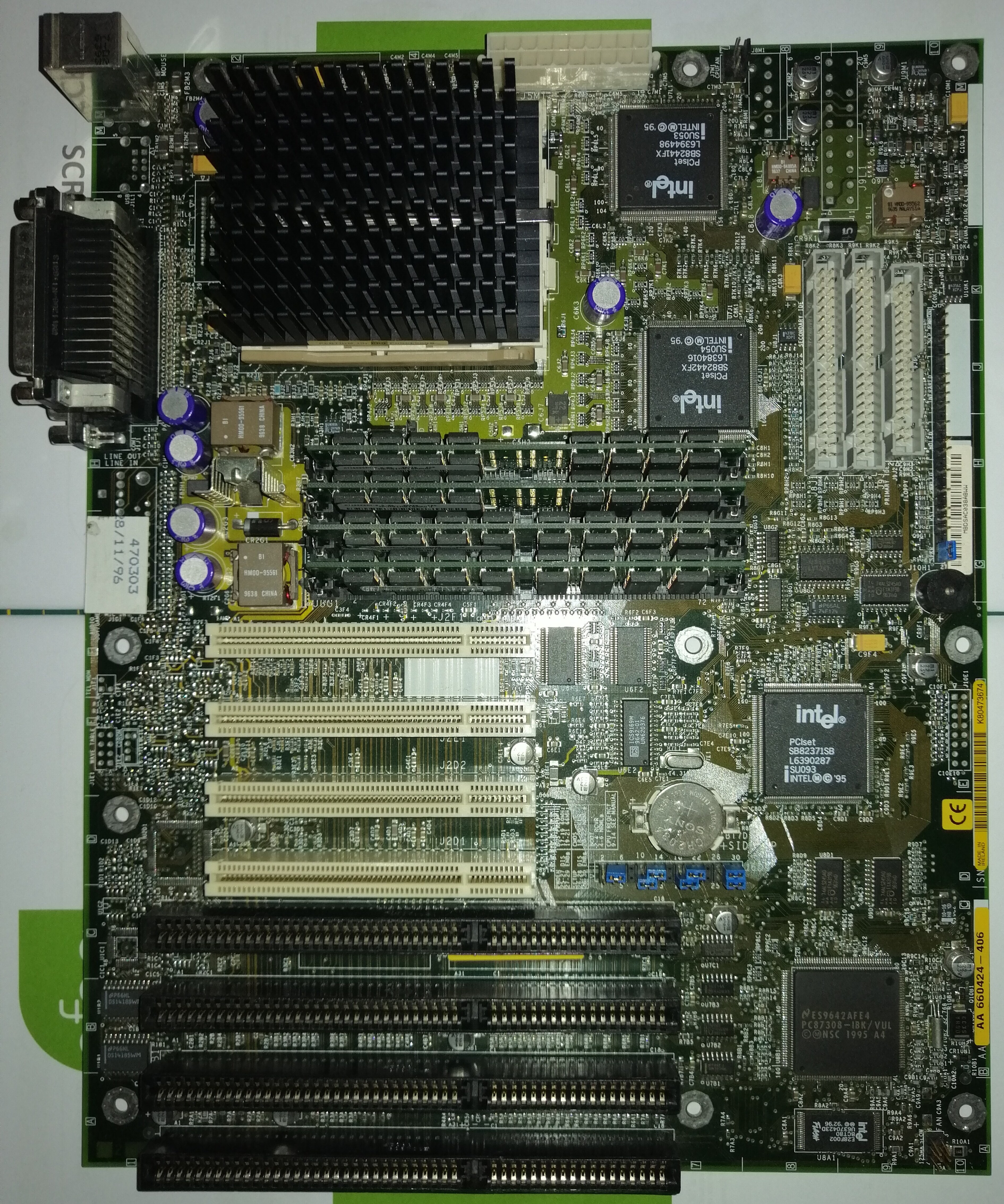

Intel VS440FX (Venus)
Logs
chipChipset
cpuSocket
speedFSB speeds
60MHz66MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
512MB(theoretical, 128MB SIMMs recognized)256MB(Manufacturer limit)
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
notes Notes

Optional Crystal CS4236 Audio. Has an undocumented 233 MHz jumper setting. Pentium II Overdrive officially supported in later BIOS releases.

Gateway boards not always react good to Intel retail bioses. It's always a good idea to set the BIOS to defaults before and after flashing.

Last updated 2025-11-05T15:05:29Z
Board info score is 9.8/10
bios 12 BIOS files available

vendor AMI - 12 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.18.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.17.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.16.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.12.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.11.CS1T
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.11.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.09.CS1
Note
backup dump
Core version
Intel
BIOS version
Logs
POST string
1.00.08.CS1T
Note
Gateway OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.07.CS15
Note
Micron OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.06.CS1
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.05.CS1Q
Note
Samsung/AST OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.04.CS1Q
Note
Samsung/AST OEM
Core version
Intel
BIOS version
Logs
drv 12 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
doc 9 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
