Intel SCB2SCSI (Coos Bay)
Logs
chipChipset
cpuSocket
Socket 370 (PGA370)
speedFSB speeds
100MHz133MHz
moboForm factor
SSI CEB (max 305 × 267 mm)
dimDimensions
Empty
ramMax VRAM size
4MB
chipCache
None/Integrated in the CPU
ramMax RAM size
6GB(PC133 ECC Registered SDRAM)
ramRAM type
SDR RDIMM ECC
pwrPSU connector
ATX 1.x (20-pin ATX)
maxcpuMulti CPU support
2 CPUs
tag Also known as

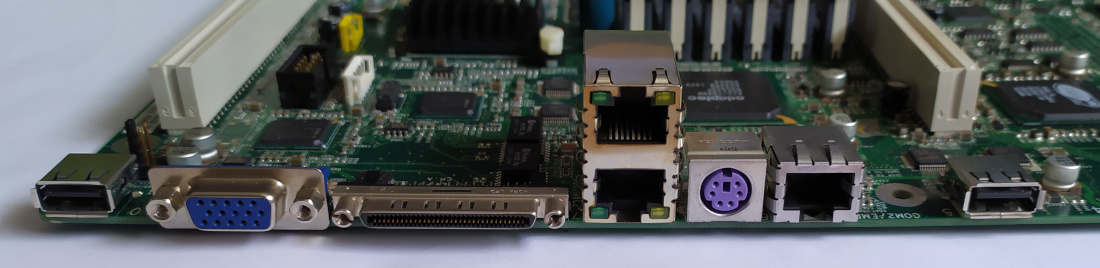

connI/O ports
1x
External SCSI
1x
Floppy interface
1x
IDE interface
1x
Internal SCSI
1x
PS/2 keyboard
2x
RJ-45 LAN
2x
Serial
1x
VGA
cardExpansion slots
2x
64-bit PCI-X
notes Notes

This board requires two CPUs (or one CPU + AGTL terminator) to start up.

Memory must be installed in identical pairs (interleave).

The PCI-X ports on the board are for risers only.

ONLY PC133 ECC Registered RAM is supported.

Last updated 2025-08-06T16:55:33Z
Board info score is 9.1/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-2300-000000-00101111-030199--SCB20
Note
raw dump
Core version
063200
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.13.1.2655
OS support
Windows 9x
Arch
Size
10.4MB
Filename
Name
Version
5.00.2195.4030
OS support
Windows 2000
Arch
x86
Size
5.9MB
Filename
Name
Version
4.12.2647
OS support
Windows 9x
Arch
x86
Size
8.5MB
Filename
Name
Version
5.10.2600.6009
OS support
Windows XP/2k3
Arch
Size
7.8MB
Filename
Name
Version
1.10
OS support
MS-DOS Windows 9x Windows NT 4.0
Arch
x86
Size
2MB
Filename
Name
Version
2003
OS support
MS-DOS OS/2 2.x
Arch
x86
Size
554.8KB
Filename
Name
Version
2003
OS support
Windows 2000
Arch
x86
Size
12.3MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.4MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.7MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2003
OS support
Windows 9x
Arch
x86
Size
8.9MB
Filename
Name
Version
2003
OS support
Windows NT 4.0
Arch
x86
Size
7.6MB
Filename
Name
Version
11.1
OS support
MS-DOS Windows 2000 Windows 9x Windows XP/2k3
Arch
x86 , x86-64
Size
36.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
Size
5.8MB
Filename
Version
OS support
Windows NT 4.0
Arch
Size
5.6MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
2001
File
Logs
Release date
2001
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2003-12
File
Logs
Family
Release date
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2000-02
File
Logs
Family
Release date
2002-06
File
Logs
Family
Release date
2001-06
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1997-05
File
Logs
Socket
Release date
File
Logs
Socket
Release date
1999-04
File
Logs
Socket
Release date
1999-12
File
Logs
Socket
Release date
2000-07
File
Logs
image1 Image 1 of 4
image2 Image 2 of 4 (maniek86)

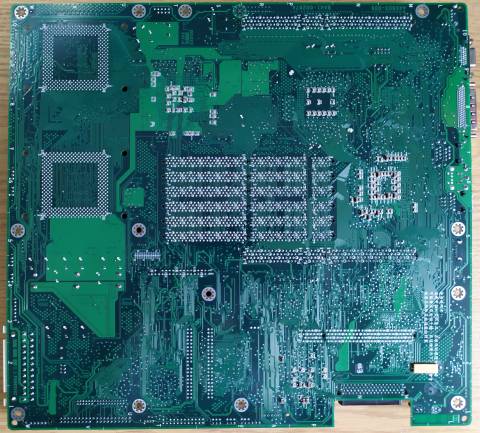

image3 Image 3 of 4 (maniek86)
image4 Image 4 of 4 (maniek86)
