Intel Premiere PCI LP/LX (Robin LX)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
Cache
256KB
Max RAM size
72MB
RAM type 72-pin FPM
PSU connector
Also known as
- Packard Bell PB550 (P90)
- Packard Bell PB560 (P100)
- Packard Bell PB540(P75)
- Packard Bell Thousand Oaks platform
- Packard Bell Force 106CDT
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser

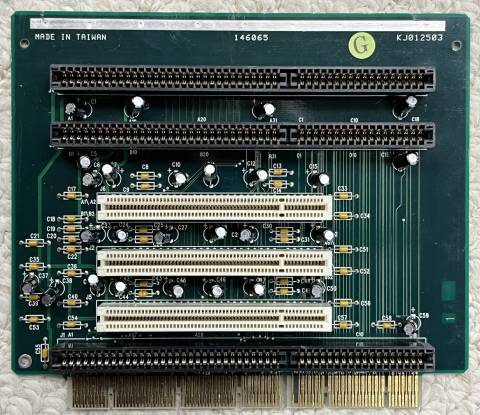

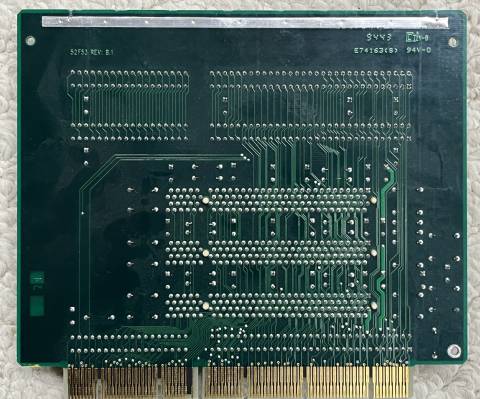

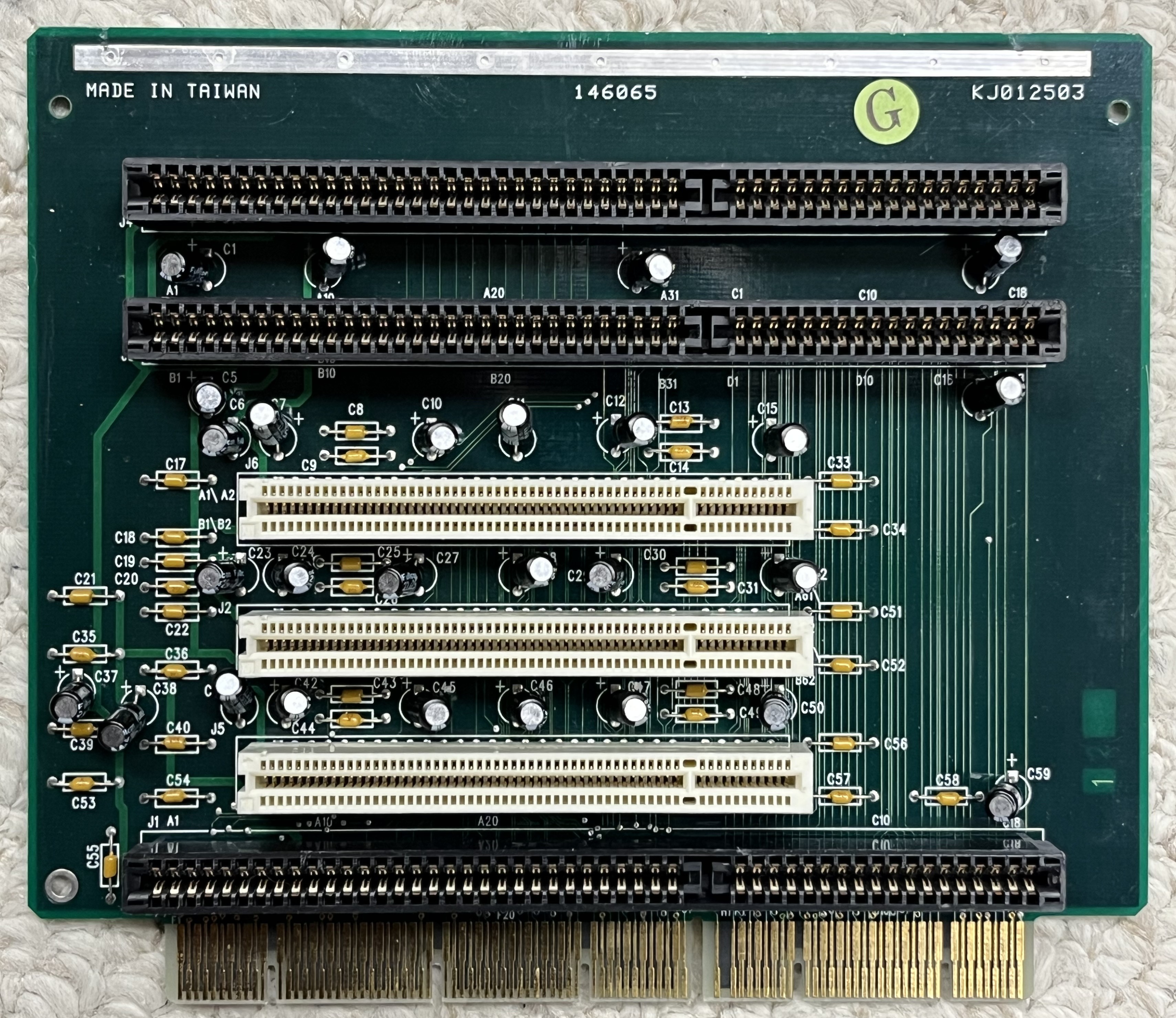

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
- Faulty IDE Controller
The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.
Notes
8MB RAM on the board
Last updated 2025-06-24T18:50:05Z
Board info score is 9.8/10
Chips
-> Chipset part
-> IDE ctrl.
-> Processor
-> Real-Time Clock
-> Super I/O
-> Video
CPU family support
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.43
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
741.9KB
Filename
Name
Version
1.24
OS support
OS/2 2.x
Windows 3.1x
Windows NT 3.1
Windows NT 3.5x
Arch
x86
Size
9.9MB
Filename
Version
OS support
Arch
Size
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1994-04
File
Logs
Image 1 of 5 (Microhouse)
Image 2 of 5 (Douglar)
Image 3 of 5 (Douglar)
Image 4 of 5 (Douglar)
Image 5 of 5 (Douglar)
