Intel Premiere/PCI LP/LPX (Robin)
Logs
chipChipset
cpuSocket
Socket 4 (PGA273)
speedFSB speed
60MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
1MB
chipCache
256KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9) AT auxiliary 3.3v (6-pin P10)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
1x
16-bit ISA
2x
32-bit PCI
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

  • Faulty IDE Controller

The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.

notes Notes

*1 NCR BIOS "BIOS 1.05.AU0B for GL 590 (3346). This is the Y2K compliant BIOS. Intel's numbering scheme went from 1.00.09 BIO backwards to 1.00.03 then to 1.00.04 and final to 1.00.05." source:https://web.archive.org/web/20030819214419/http://www.ncr.com/support/support_drivers_patches.asp?Class=pc_library_3346

Last updated 2025-06-24T18:49:44Z
Board info score is 9.6/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.11.AU0Q
Note
AST OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.10.AU0Q
Note
AST OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.10.AU0
Note
Intel
Core version
Intel
BIOS version
Logs
POST string
1.00.09.AU0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.08.AU0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.07.AU0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.06.AU0R
Note
Packard Bell
Core version
Intel
BIOS version
Logs
POST string
1.00.05.AU0B
Note
NCR *1 (RobinIDE (Liberty) Release 5.0)
Core version
Intel
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
August 27, 1991
OS support
Windows 3.0
Arch
x86
Size
256.8KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
75.6KB
Filename
Name
Version
2.60
OS support
MS-DOS OS/2 2.x OS/2 Warp 3.x Windows 3.1x
Arch
x86
Size
2.7MB
Filename
Name
Version
1992-04-06
OS support
Windows 3.1x
Arch
x86
Size
221.8KB
Filename
Name
Version
1992-04-15
OS support
Windows 3.1x
Arch
x86
Size
228.1KB
Filename
Name
Version
1992-04-03
OS support
Windows 3.1x
Arch
x86
Size
705.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
216.7KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
528.4KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
923.8KB
Filename
Version
OS support
Windows 3.1x
Arch
x86
Size
754.7KB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1994-11
File
Logs
Family
Release date
1996-03-04
File
Logs

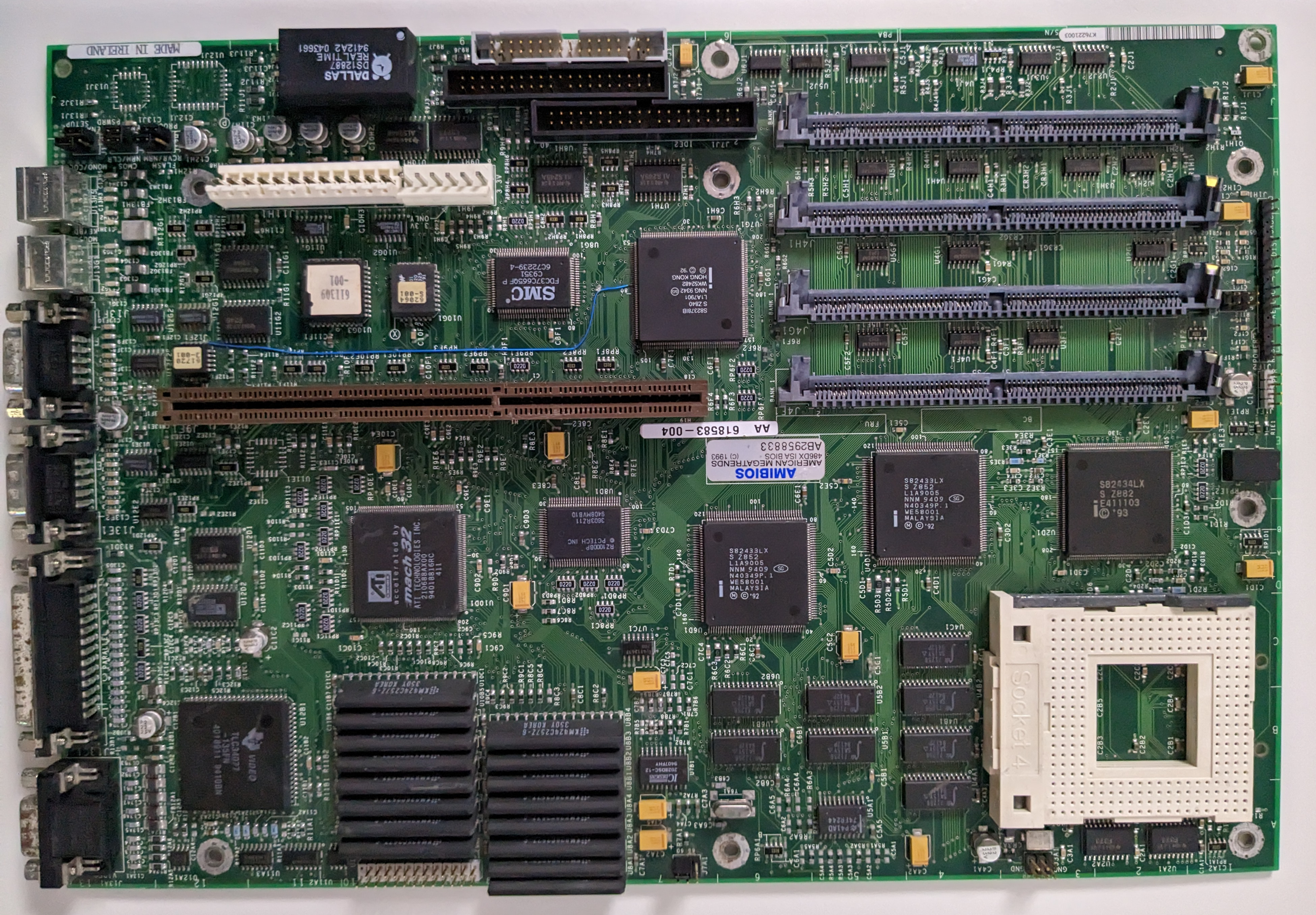

image1 Image 1 of 3 (Microhouse)

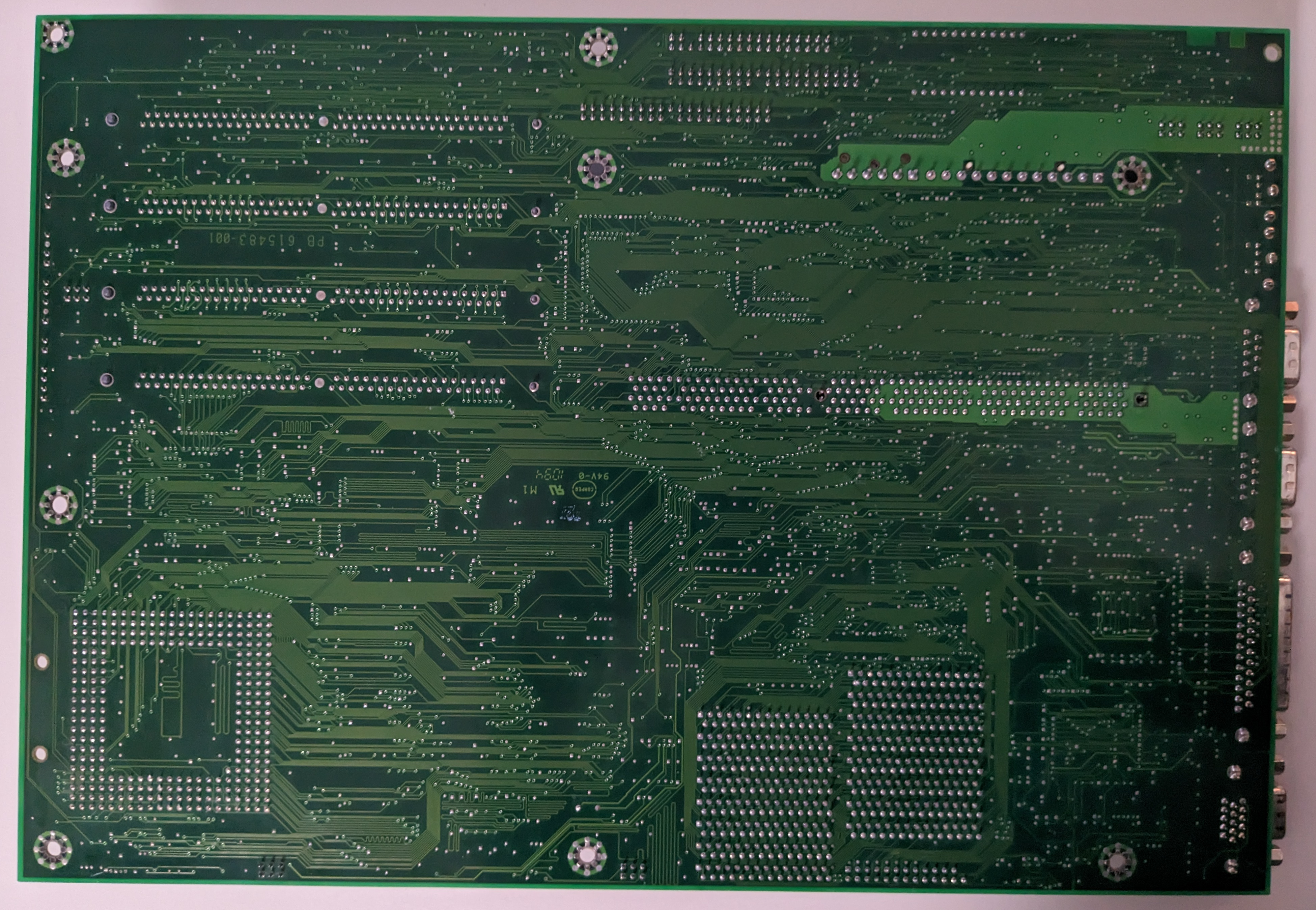

image2 Image 2 of 3 (ronnyroy)
image3 Image 3 of 3 (ronnyroy)
