Intel DH77KC (Knoll Creek)
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 215mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
3x
SATA II
2x
SATA III
1x
Serial
8x
USB 2.0
4x
USB 3.0
1x
eSATA II
1x
mSATA
cardExpansion slots
3x
32-bit PCI
1x
Mini-PCIe
1x
PCIe x1
1x
PCIe x16
1x
PCIe x4
notes Notes

Support for AMD CrossFireX™ technology

Last updated 2025-05-16T06:18:17Z
Board info score is 9.2/10
bios 4 BIOS files available

vendor Intel - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
KCH7710H.86A.0111.2018.0329.1405
Note
Core version
UEFI
BIOS version
Logs
POST string
KCH7710H.86A.0110.2013.0513.1018
Note
Core version
UEFI
BIOS version
Logs
POST string
KCH7710H.86A.0108.2013.0305.1638
Note
Core version
UEFI
BIOS version
Logs
POST string
KCH7710H.86A.0107.2013.0123.1905
Note
Core version
UEFI
BIOS version
Logs
POST string
KCH7710H.86A.0106.2012.1227.1251
Note
Core version
UEFI
BIOS version
0106
Logs
POST string
KCH7710H.86A.0105.2012.1213.1135
Note
Core version
UEFI
BIOS version
0105
Logs
POST string
KCH7710H.86A.0104.2012.1123.1027
Note
Core version
UEFI
BIOS version
0104
Logs
POST string
KCH7710H.86A.0103.2012.1029.1732
Note
Core version
UEFI
BIOS version
0103
Logs
POST string
KCH7710H.86A.0102.2012.1008.1611
Note
Core version
UEFI
BIOS version
0102
Logs
POST string
KCH7710H.86A.0100.2012.0906.1136
Note
Core version
UEFI
BIOS version
0100
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
2011-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

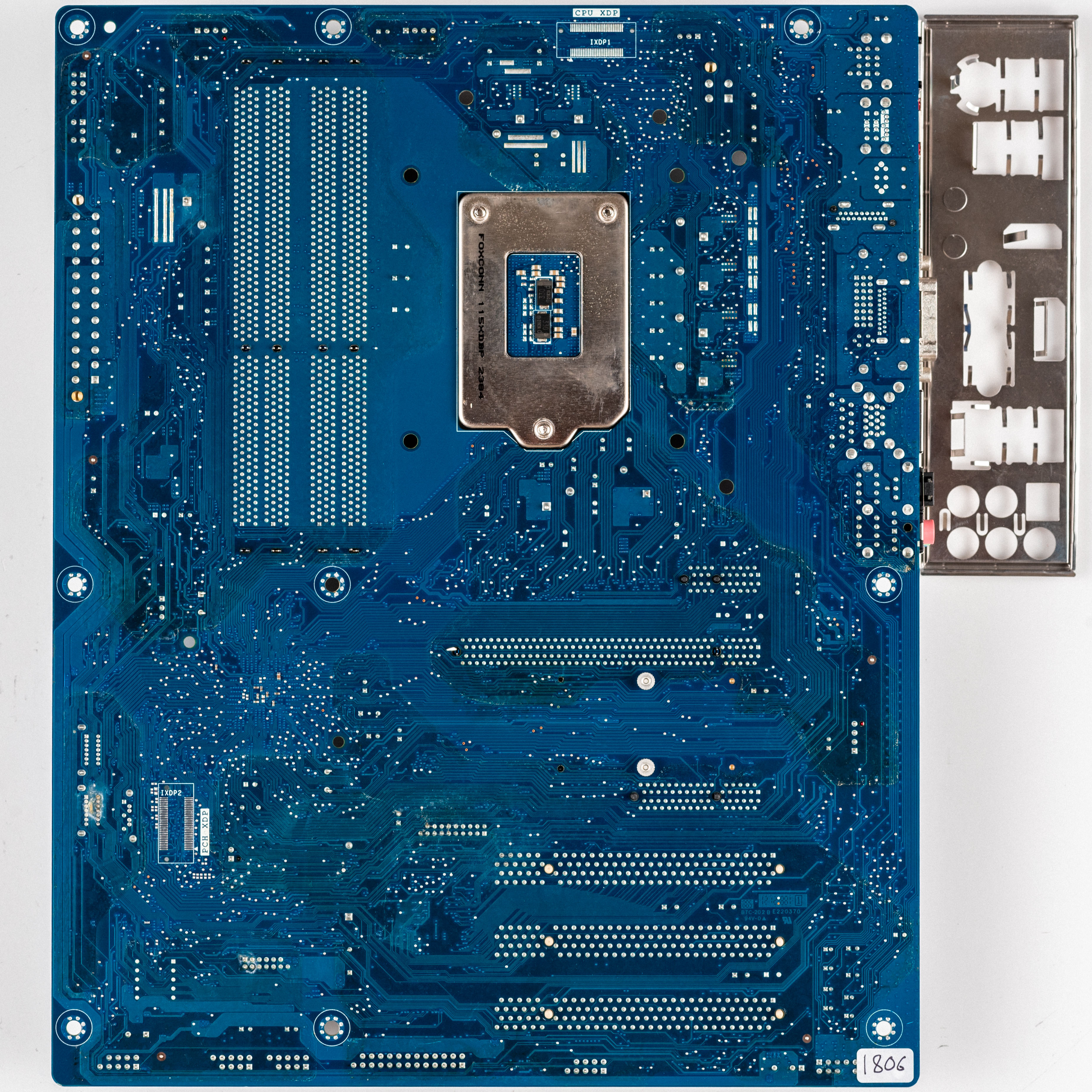

image1 Image 1 of 3 (Motherboard Continuum)

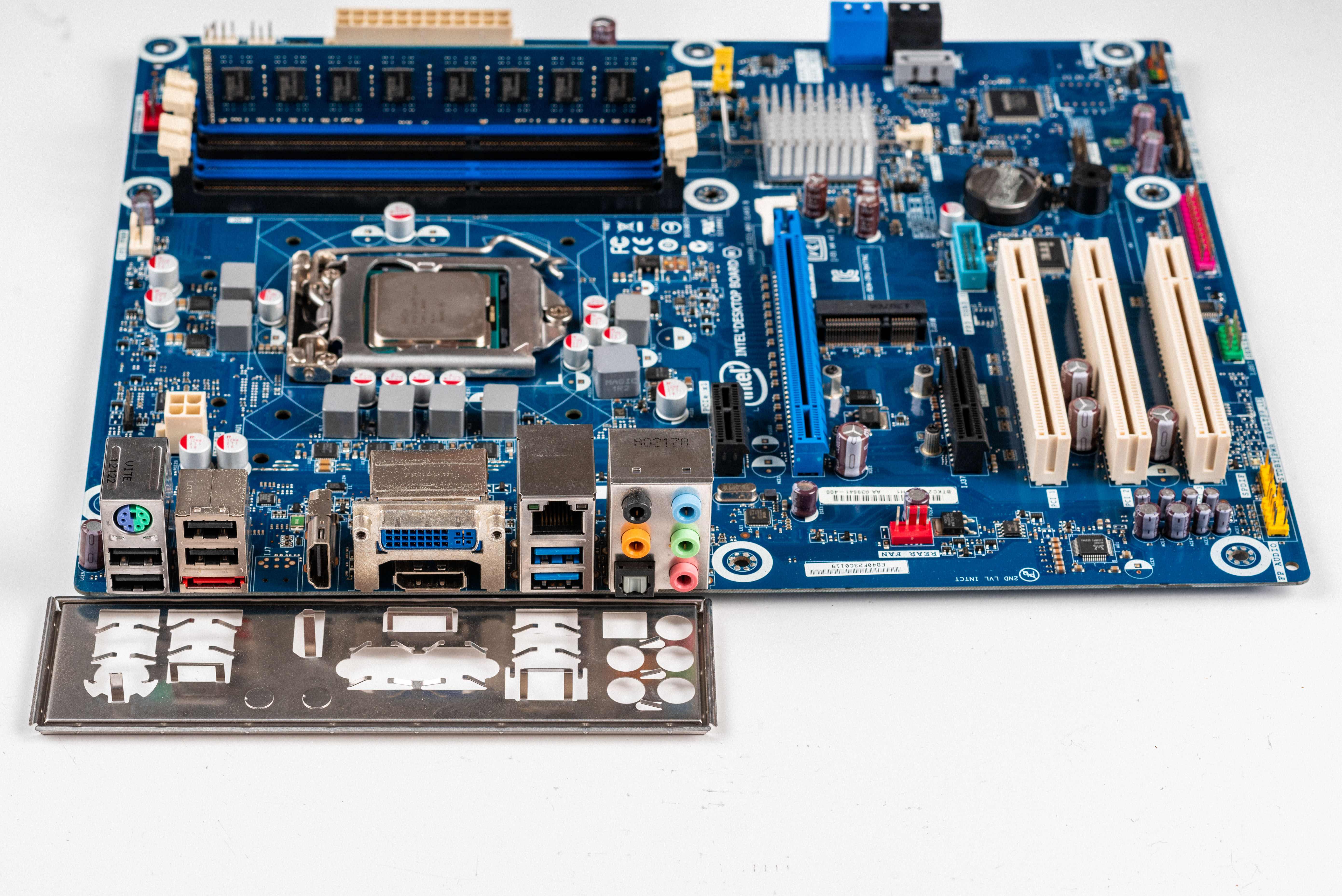

image2 Image 2 of 3 (Motherboard Continuum)
image3 Image 3 of 3 (Motherboard Continuum)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
