Intel DH55TC (Tom Cove)
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
PS/2 KB+MS Combo
1x
Parallel
1x
RJ-45 LAN
6x
SATA II
1x
Serial
12x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-07-22T11:31:23Z
Board info score is 9/10
bios 13 BIOS files available

vendor Intel - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
TCIBX10H.86A.0048.2011.1206.1342
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0046.2011.0422.1617
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0045.2011.0323.1806
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0044.2011.0120.1057
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0043.2011.0112.1839
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0040.2010.1018.1100
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0039.2010.0722.1419
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0038.2010.0624.1337
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0036.2010.0525.1620
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0035.2010.0429.1516
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0028.2009.1201.1520
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0026.2009.1113.1720
Note
Core version
UEFI
BIOS version
Logs
POST string
TCIBX10H.86A.0020.2009.1019.2043
Note
Core version
UEFI
BIOS version
Logs
drv No drivers available
doc 3 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-04-10
File
Logs
Chip
Release date
2007-01-31
File
Logs
Chip
Release date
2009-07-09
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs

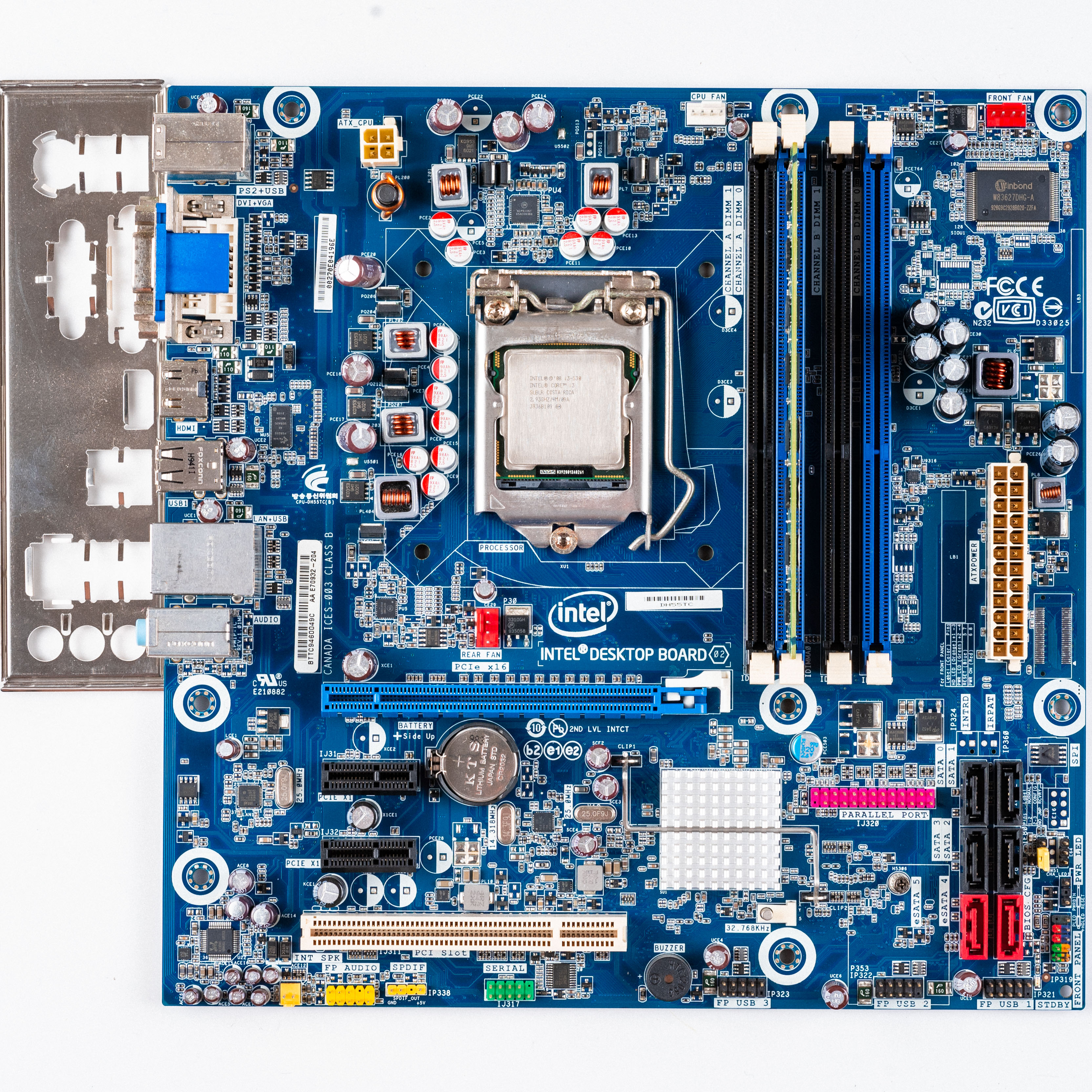

image1 Image 1 of 6 (Motherboard Continuum)

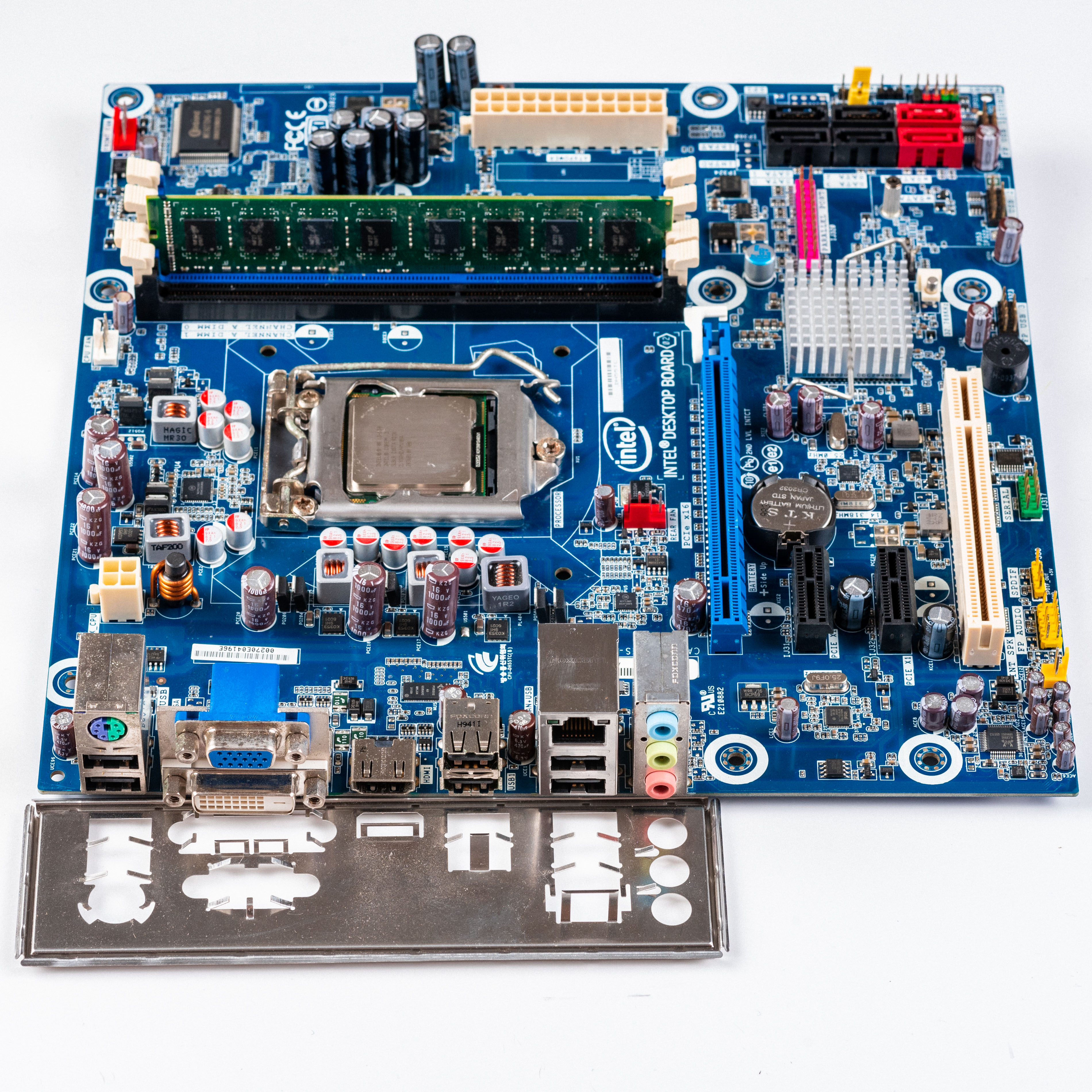

image2 Image 2 of 6 (Motherboard Continuum)

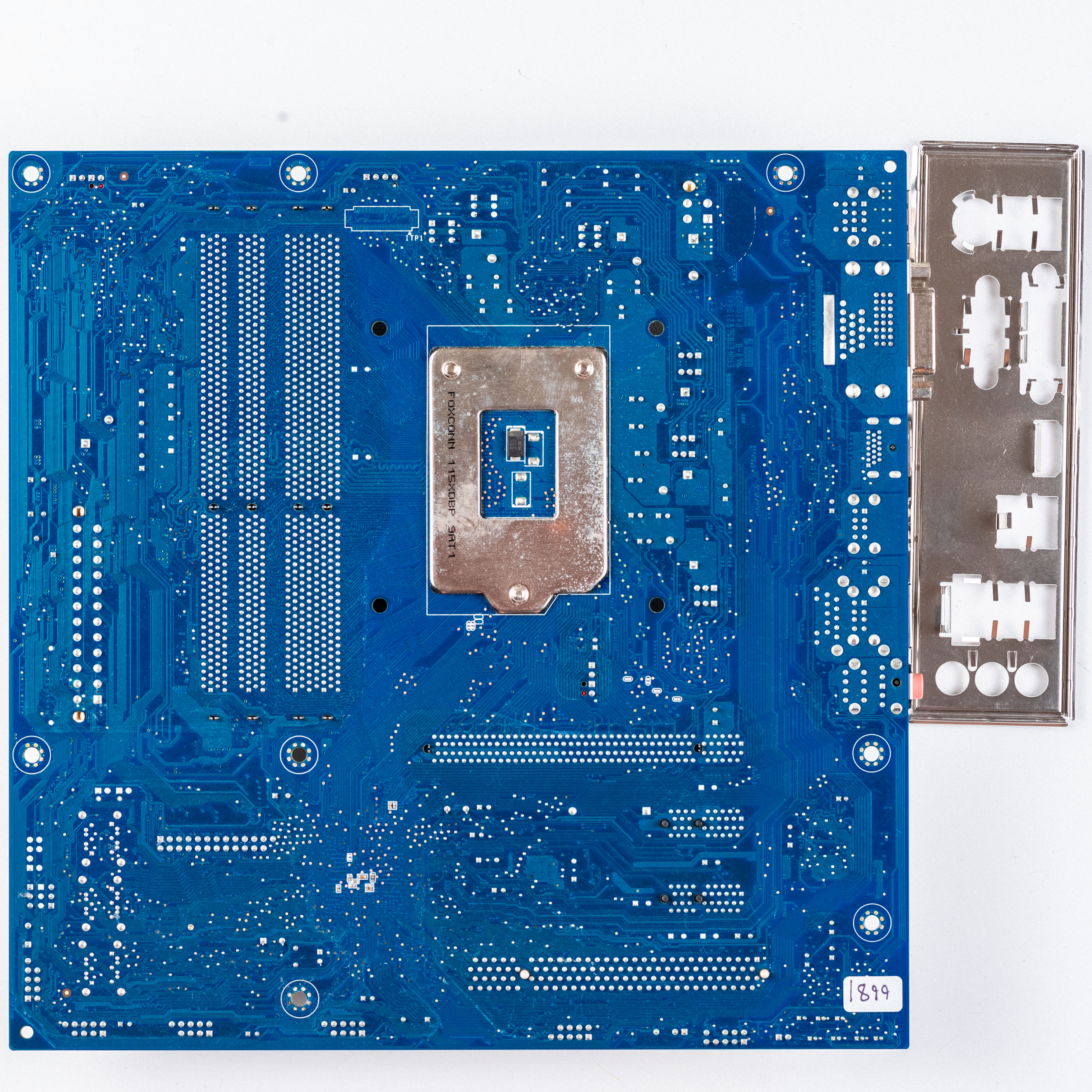

image3 Image 3 of 6 (Motherboard Continuum)

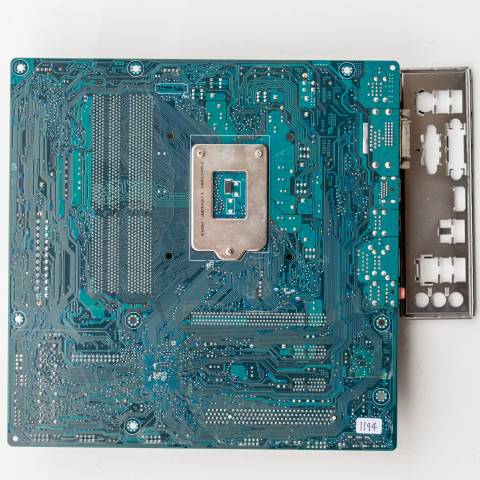

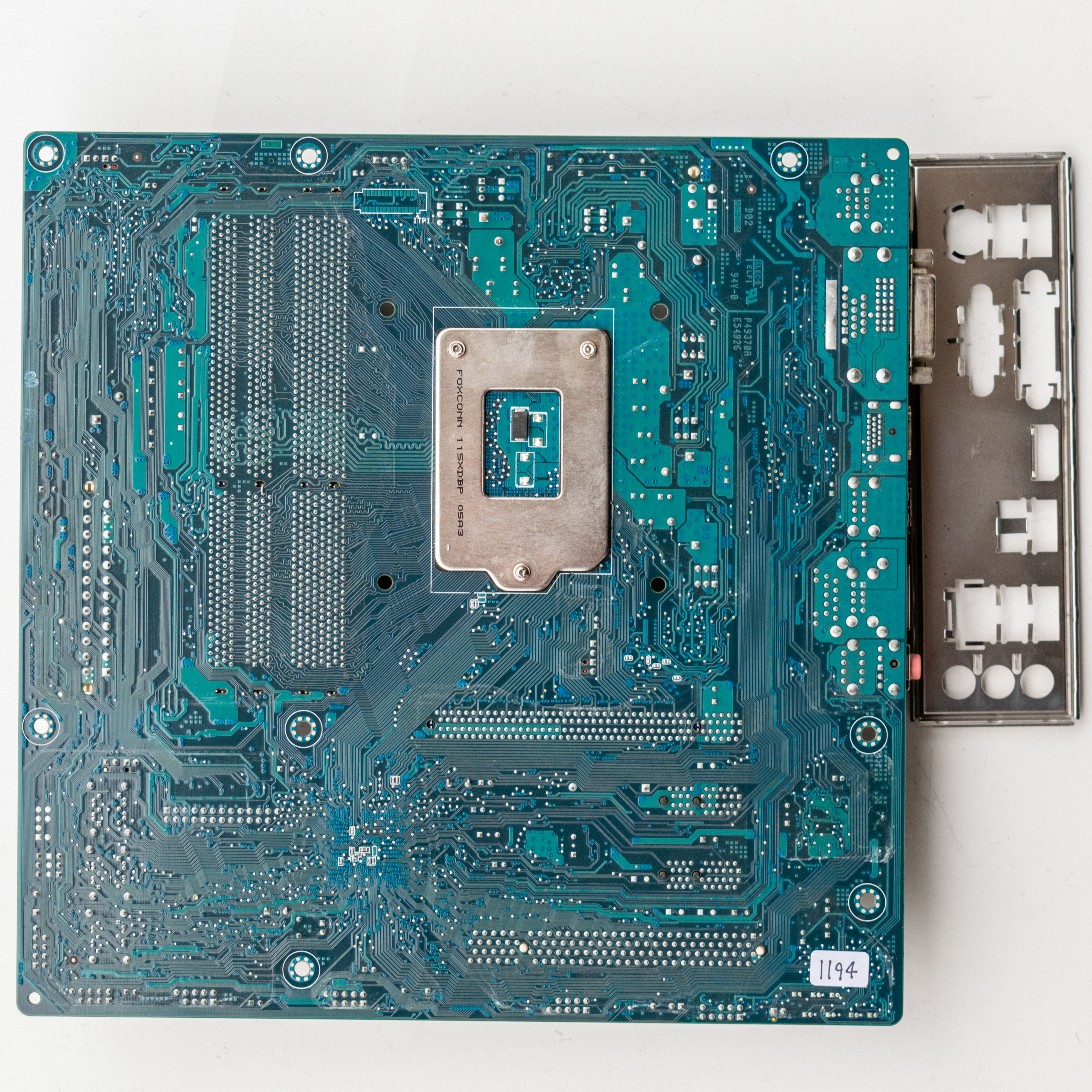

image4 Image 4 of 6 (Motherboard Continuum)

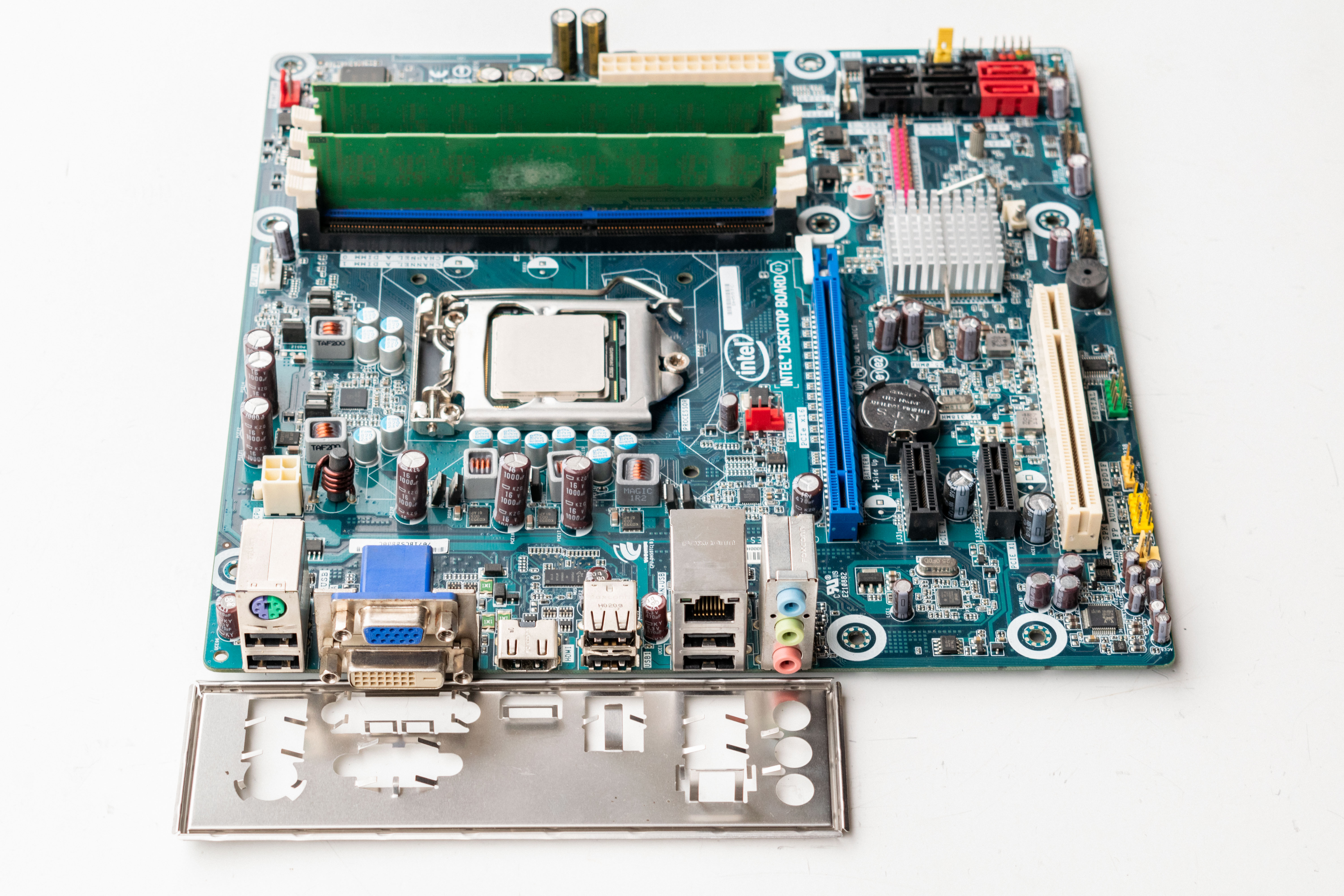

image5 Image 5 of 6 (Motherboard Continuum)

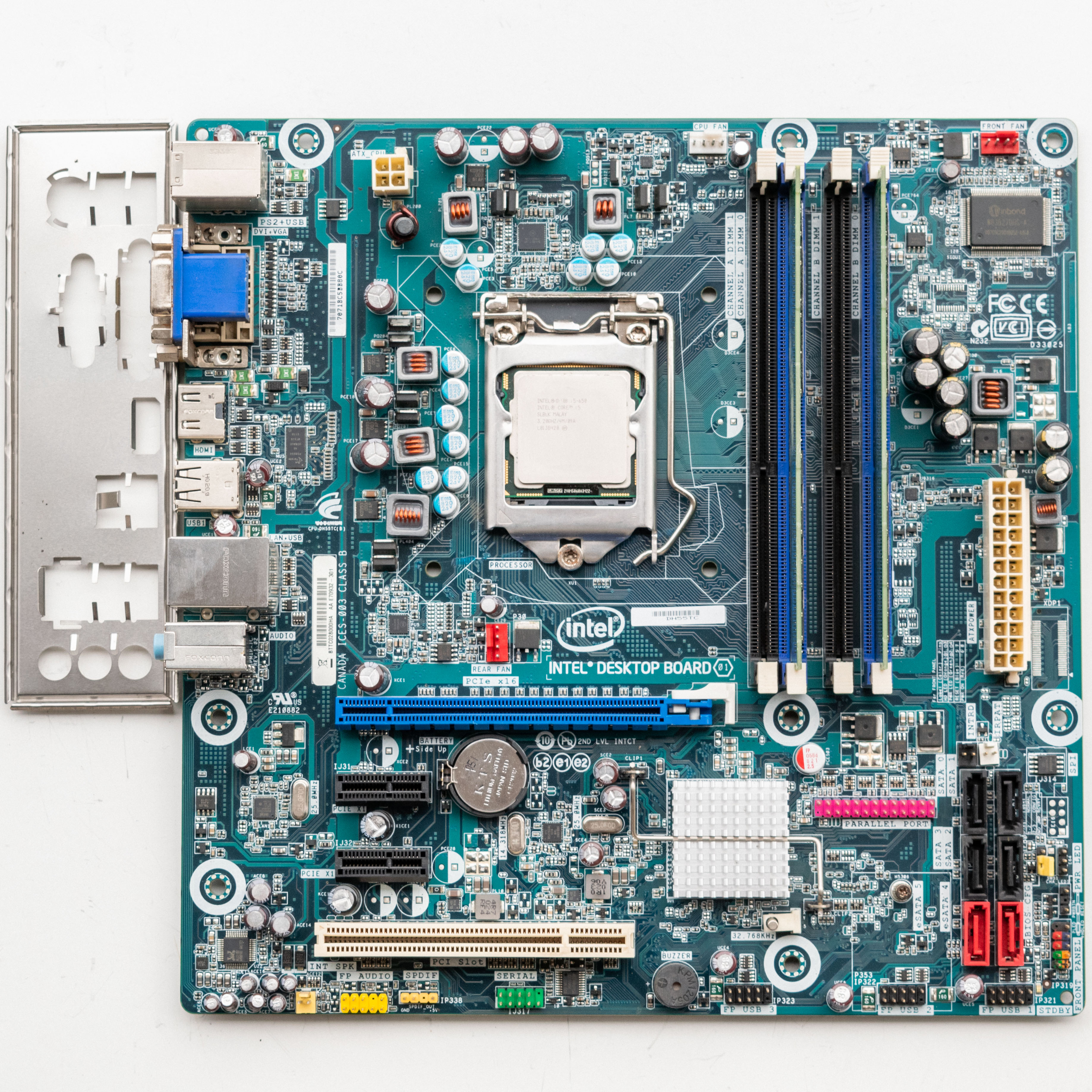

image6 Image 6 of 6 (Motherboard Continuum)
