Intel D510MO (Mount Olive)
Logs
chipChipset
cpuSocket
BGA559
speedFSB speed
400MHz
moboForm factor
Mini ITX (max 170 x 170 mm)
dimDimensions
170 mm x 170 mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
2x
SATA II
2x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
Mini-PCIe
notes Notes
  • BIOS version 0311(MOPNV10J.86A.0311.2010.0802.2346) is the final “10J” BIOS version for LD510MOV, LD510MO and D510MO boards. All subsequent BIOS versions will be “10N” BIOS.
  • BIOS version 0400(MOPNV10N.86A.0400.2010.0919.1014) is the transition BIOS for updates from 10J to 10N. To update from 10J BIOS to 10N BIOS, update to version 0400 first. Then update from 0400 to any other subsequent 10N BIOS if needed.
  • BIOS version 0400 (updating from 10J to 10N) is supported by any of these BIOS update methods:
  • iFflash2 Update
  • Express BIOS Update
  • F7 Flash Update
  • Recovery Update
  • Updates from any previous “10N” BIOS to version 0400 will fail.
Last updated 2026-01-04T14:05:29Z
Board info score is 10/10
bios 16 BIOS files available

vendor Intel - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
MOPNV10N.86A.0542.2011.0729.1300
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0524.2011.0712.0930
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0516.2011.0331.1730
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0512.2011.0225.1500
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0509.2011.0127.1000
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0506.2011.0105.1730
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0501.2010.1103.0928
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0400.2010.0919.1014
Note
transition BIOS for updates from 10J to 10N (see Notes)
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0203.2010.0803.1745
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0196.2010.0629.1555
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0187.2010.0524.1835
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0178.2010.0331.0947
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0171.2010.0309.1345
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0159.2010.0104.1040
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0158.2009.1126.1712
Note
Core version
UEFI
BIOS version
Logs
POST string
MOPNV10N.86A.0155.2009.1106.0430
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-08-10
File
Logs
Chip
Release date
2009-12
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2011-09-15
File
Logs
Family
Release date
2012-12
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-06
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2010-03
File
Logs
Family
Release date
2009-12
File
Logs
Family
Release date
2014-07
File
Logs
image1 Image 1 of 6 (evasive)

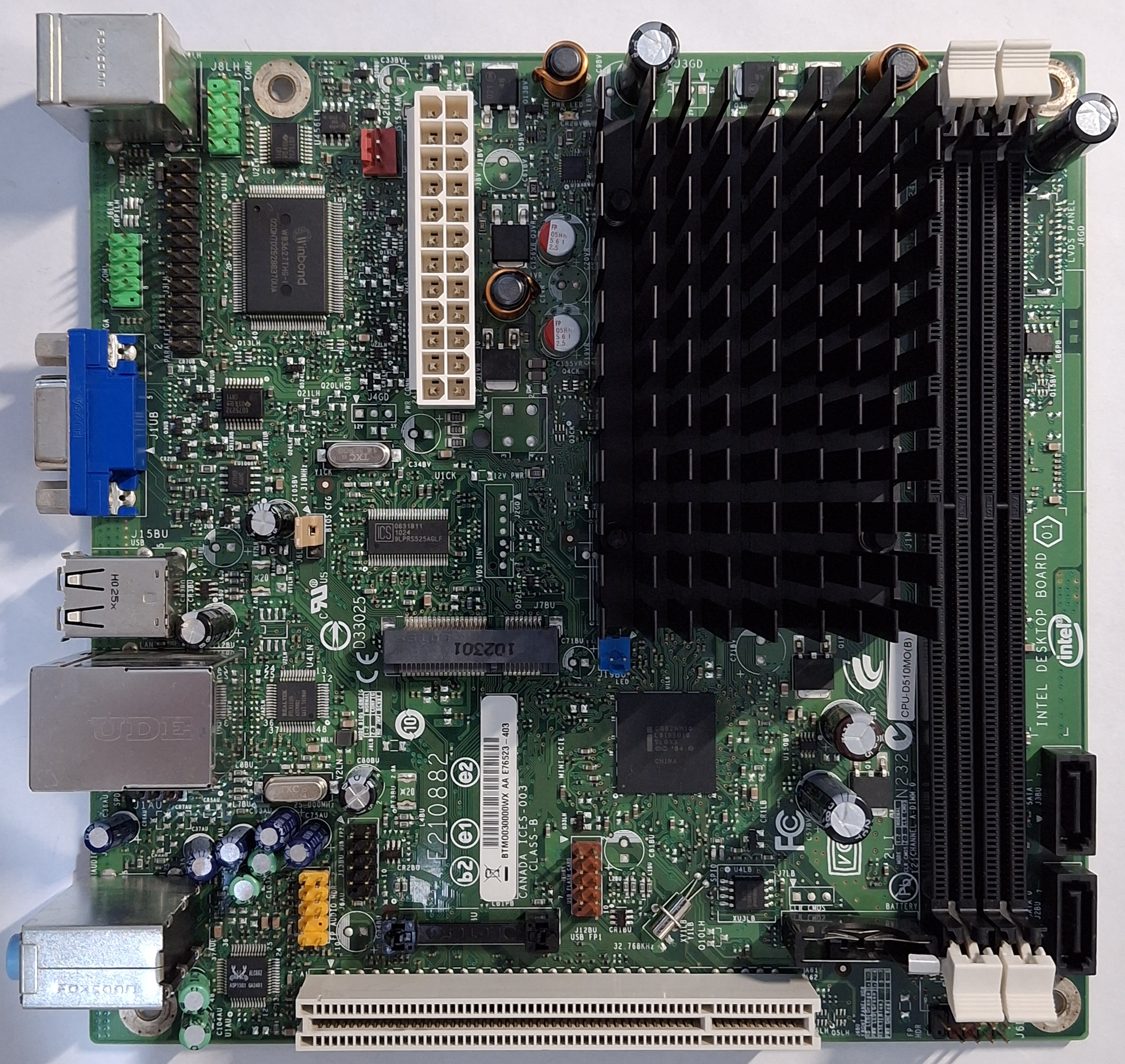

image2 Image 2 of 6 (maniek86)

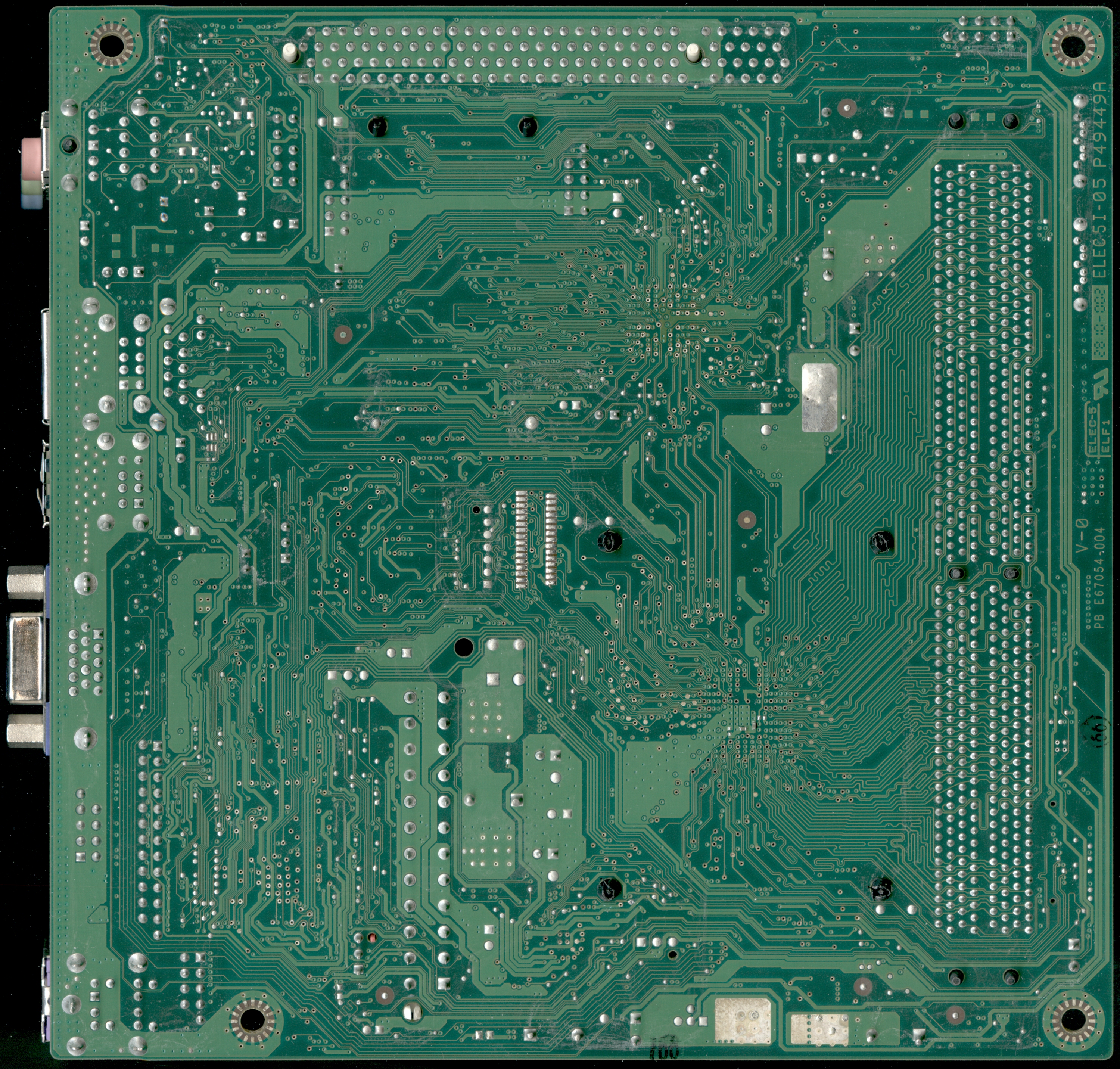

image3 Image 3 of 6 (maniek86)
image4 Image 4 of 6 (maniek86)

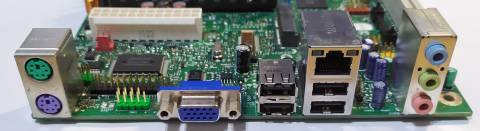

image5 Image 5 of 6 (maniek86)

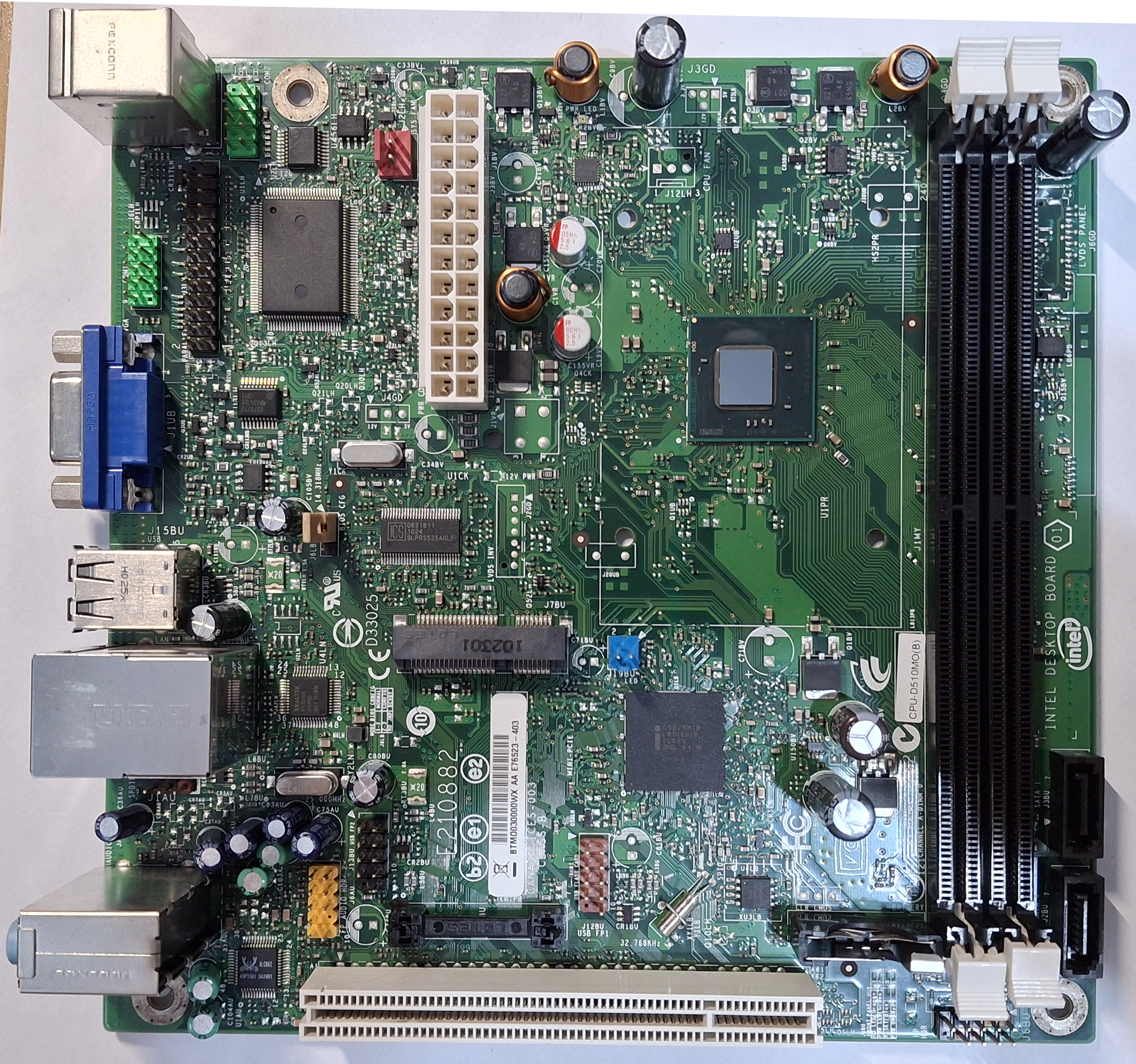

image6 Image 6 of 6 (evasive)
