Intel CN430TX (Chattanooga)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
60MHz66MHz
moboForm factor
NLX (max 229 x 345 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
256MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Audio Combo
1x
Gameport
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
Empty
wrench Known issues
  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

Last updated 2025-10-11T18:23:54Z
Board info score is 8.9/10
bios 3 BIOS files available

vendor Phoenix - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
4C3NT0X0.86A.0022.P06.9804091453
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4C3NT0X0.86C.0008.P05.9802170943
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
POST string
4C3NT0X0.86C.0007.P04.9710211125
Note
Core version
4.0 rel. 6.0
BIOS version
Logs
drv 13 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.05.05
OS support
Windows 3.1x
Arch
x86
Size
544.3KB
Filename
Name
Version
4.03.00.2111-3.12.01
OS support
Windows 9x
Arch
x86
Size
244.1KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Name
Version
v2329
OS support
Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
v2343
OS support
Windows 9x
Arch
x86
Size
1.9MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
1.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
Size
266.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
266.7KB
Filename

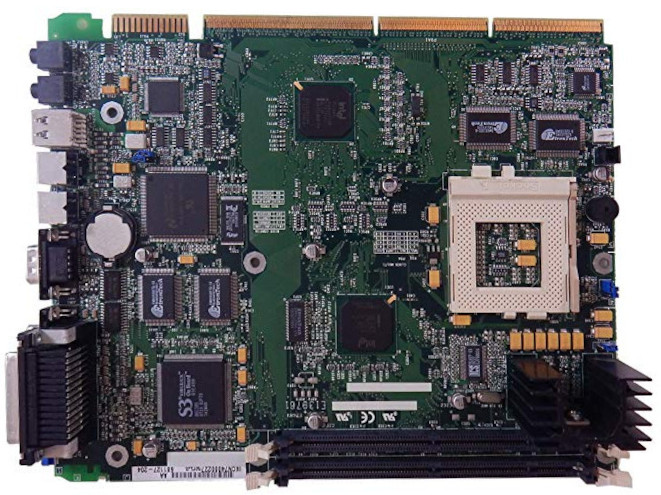

image1 Image 1 of 2 (Microhouse)
image2 Image 2 of 2
