Intel Classic E Series
Logs
chipChipset
cpuSockets
Socket 2 (PGA238) Socket 1 (PGA169)
speedFSB speeds
16 MHz20 MHz25 MHz33 MHz50 MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
426mm x 416mm
chipCache
0B64KB128KB256KB
ramMax RAM size
64 MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
  • Intel BDT486SX254 (25MHz)
  • Intel BDT486SX334 (33MHz)
  • Intel PBA611880-003 PBA612990-007
connI/O ports
1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
7x
16-bit ISA
1x
32-bit VLB
Last updated 2025-02-12T13:01:32Z
Board info score is 9.4/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.05.AB0
Note
Core version
Intel A486 1.00
BIOS version
Logs
POST string
1.00.04.AB0
Note
Core version
Intel A486 1.00
BIOS version
Logs
drv No drivers available
doc 6 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1990
File
Logs
Chip
Release date
1996-08-09
File
Logs
Chip
Release date
1996-05-15
File
Logs
Chip
Release date
1993-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1995-12
File
Logs
Family
Release date
1989-04
File
Logs
Family
Release date
1990
File
Logs
Family
Release date
1992-10
File
Logs
Family
Release date
1992-02
File
Logs

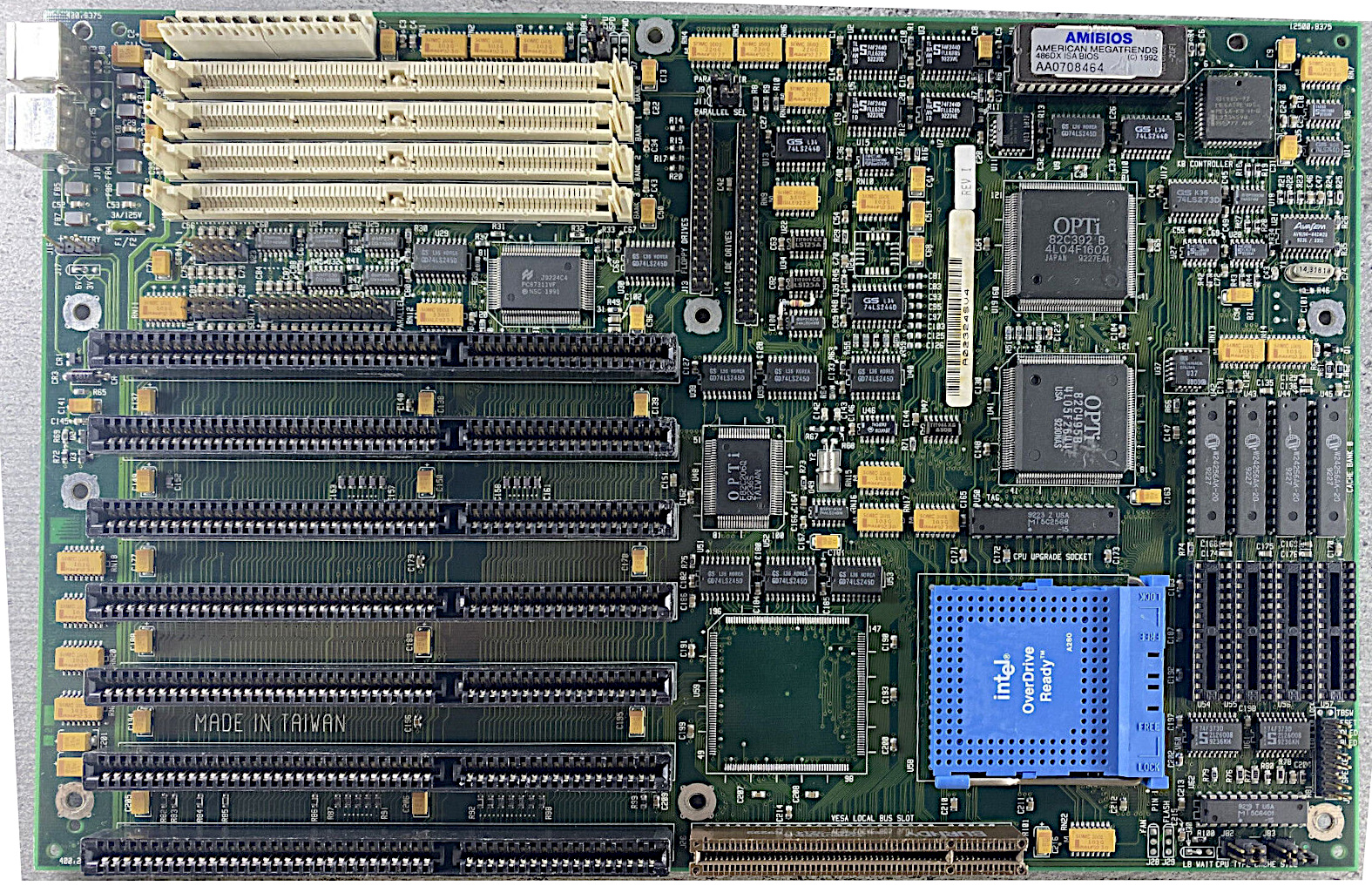

image1 Image 1 of 6 (Microhouse)

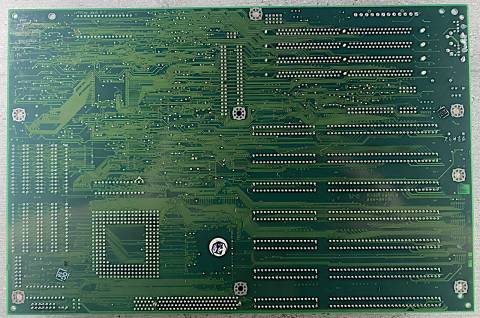

image2 Image 2 of 6

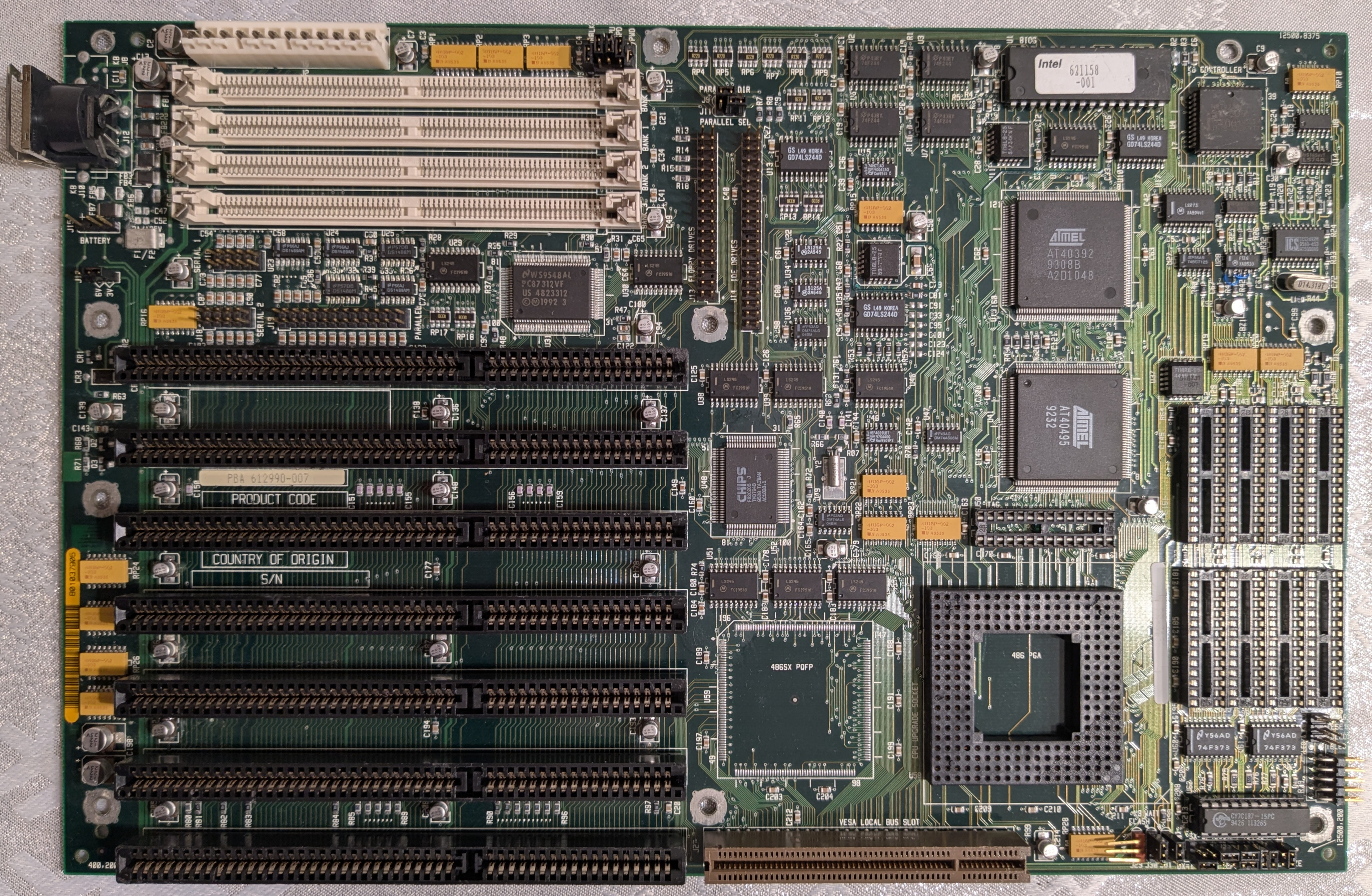

image3 Image 3 of 6 (Xourque)

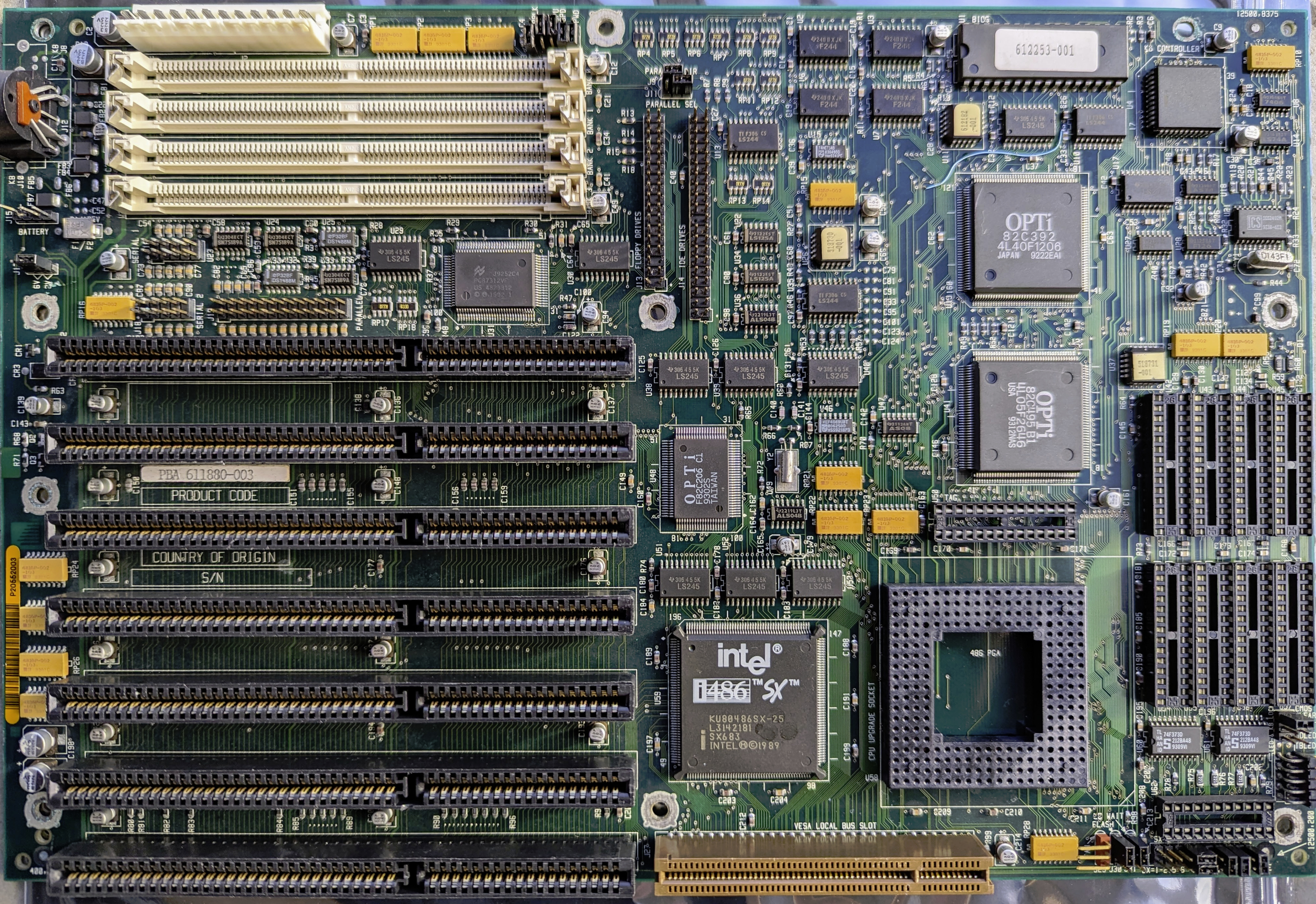

image4 Image 4 of 6 (Tech&Music)

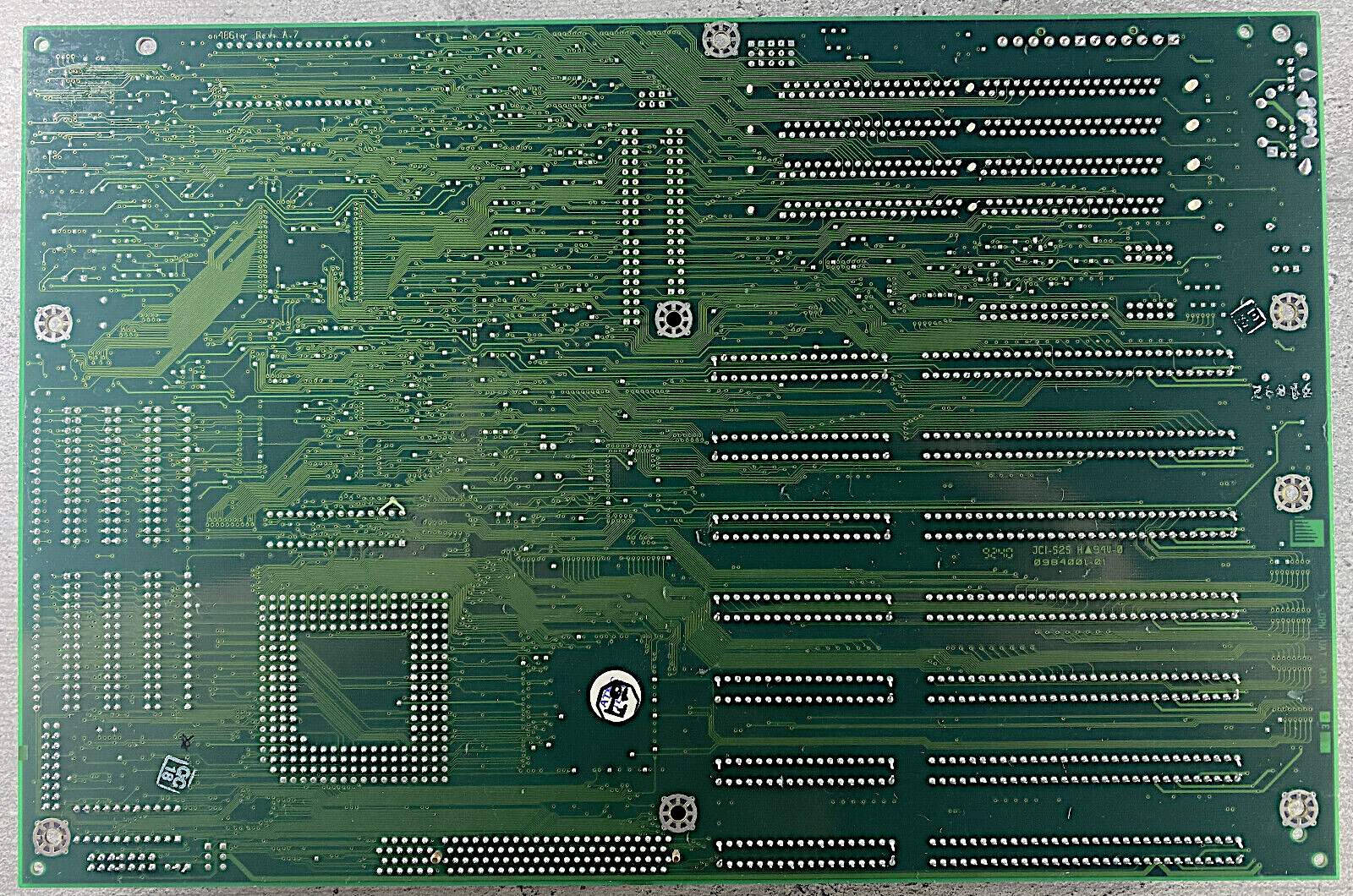

image5 Image 5 of 6

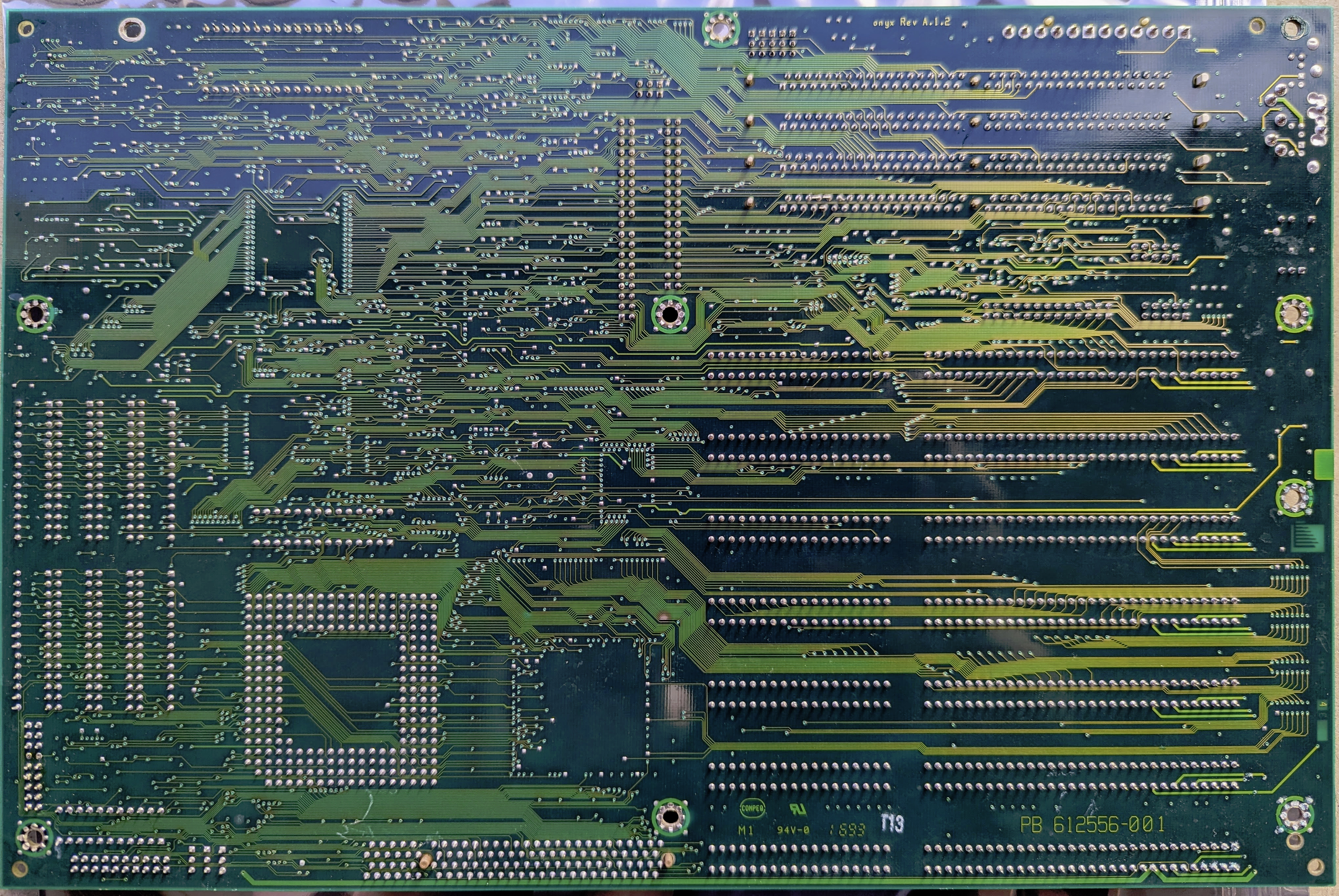

image6 Image 6 of 6 (Xourque)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
