Intel Advanced/PO (Pocono)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM type
72-pin FPM
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
Empty
notes Notes

Used in Advent 8125 & 8165 systems

Last updated 2023-02-12T12:59:01Z
Board info score is 8.9/10
bios 1 BIOS file available

vendor AMI - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.02.CJ0
Note
Core version
Intel
BIOS version
Logs
drv 20 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
1.13x
OS support
Windows 9x
Arch
x86
Size
78.1KB
Filename
Name
Version
1.41
OS support
Windows 9x
Arch
x86
Size
361.8KB
Filename
Name
Version
1.31a
OS support
Windows NT 3.5x
Arch
x86
Size
65KB
Filename
Name
Version
1.41
OS support
Windows NT 4.0
Arch
x86
Size
194.6KB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
419.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
401.2KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
6.8MB
Filename
Version
OS support
MS-DOS Windows 3.1x Windows 9x Windows NT 4.0
Arch
x86
Size
7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 2 (UK Tech Support)

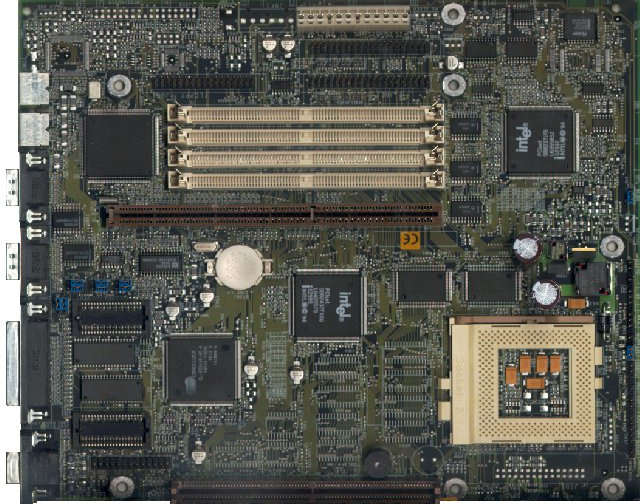

image2 Image 2 of 2
