Intel Advanced/MN (Morrison32)
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
3x
16-bit ISA
2x
32-bit PCI
wrench Known issues

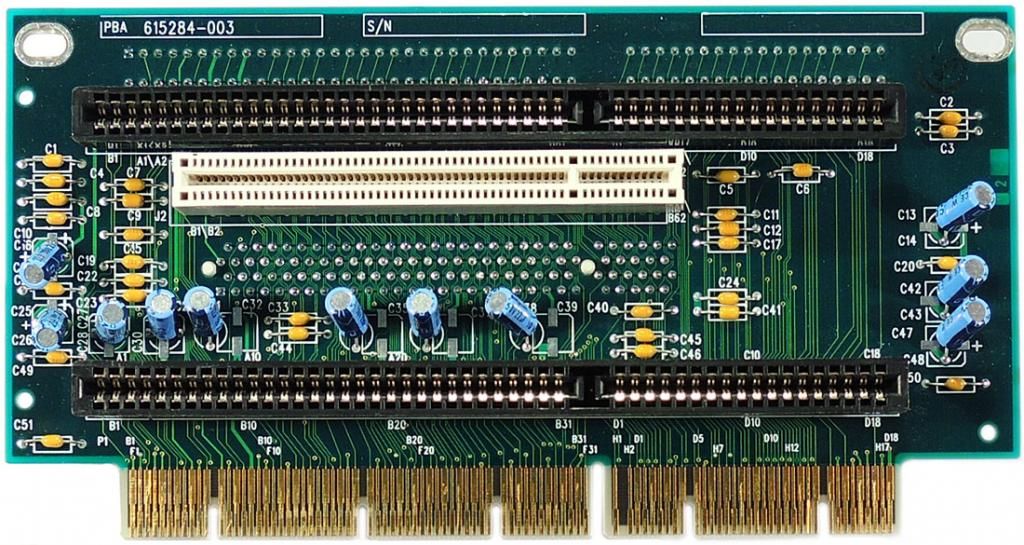

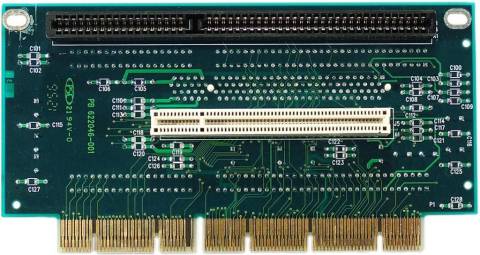

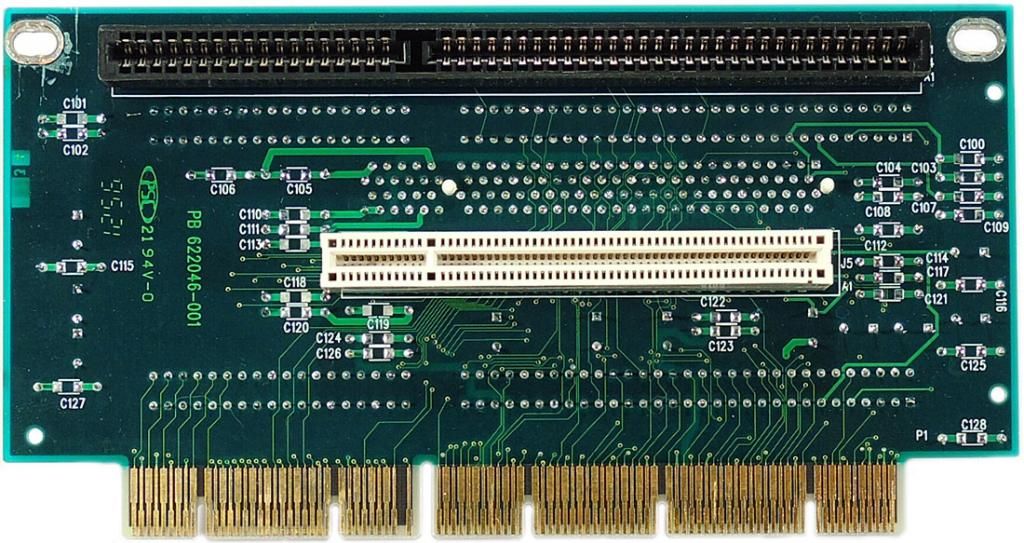

  • Expansion slots are on proprietary riser

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

Used in HP Pavilion 5030, 5040, 7010, 7020, 7030, 7050, 7055 (not all, some have the RU430HX)

Used in Zenith Z-STATION GT ZEP- xxxx - xx, ZEW-8369-SJ, IEP-83 xx - xx, IEP-85 xx - xx, UBP-095 X (the UBP-0954 is excluded)

Last updated 2025-07-30T17:52:58Z
Board info score is 9.6/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.09.BT0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.09.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.08.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.07.BT0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.07.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.06.BT0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.06.BT0Q
Note
AST OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.06.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.04.BT0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.04.BT0Q
Note
AST OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.04.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.03.BT0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.xx.BT0L
Note
HP
Core version
Intel
BIOS version
Logs

vendor Mr. BIOS - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL50N
Note
System BIOS for Morrison/MN motherboard (Intel Triton 1.00.0X.BT0)
Core version
3.30
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.3B8
OS support
Windows 3.1x
Arch
x86
Size
994.8KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1995-03
File
Logs

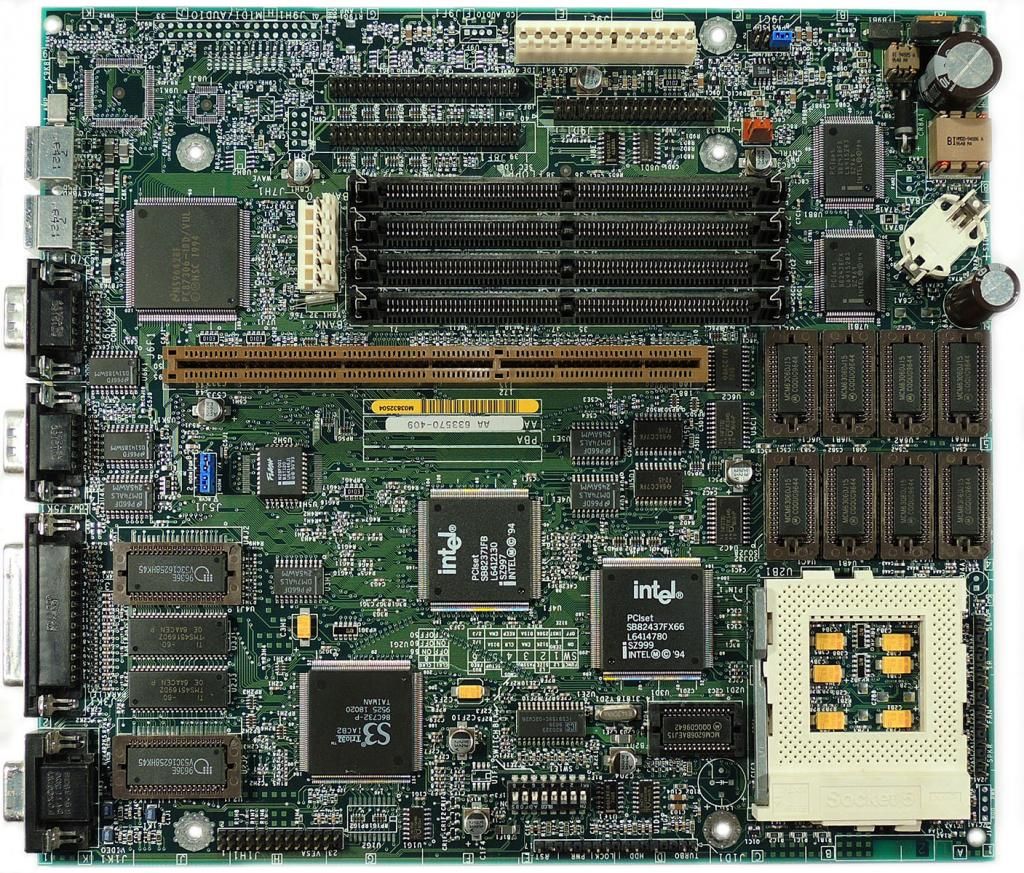

image1 Image 1 of 7 (Microhouse)
image2 Image 2 of 7 (old_pc_parts)

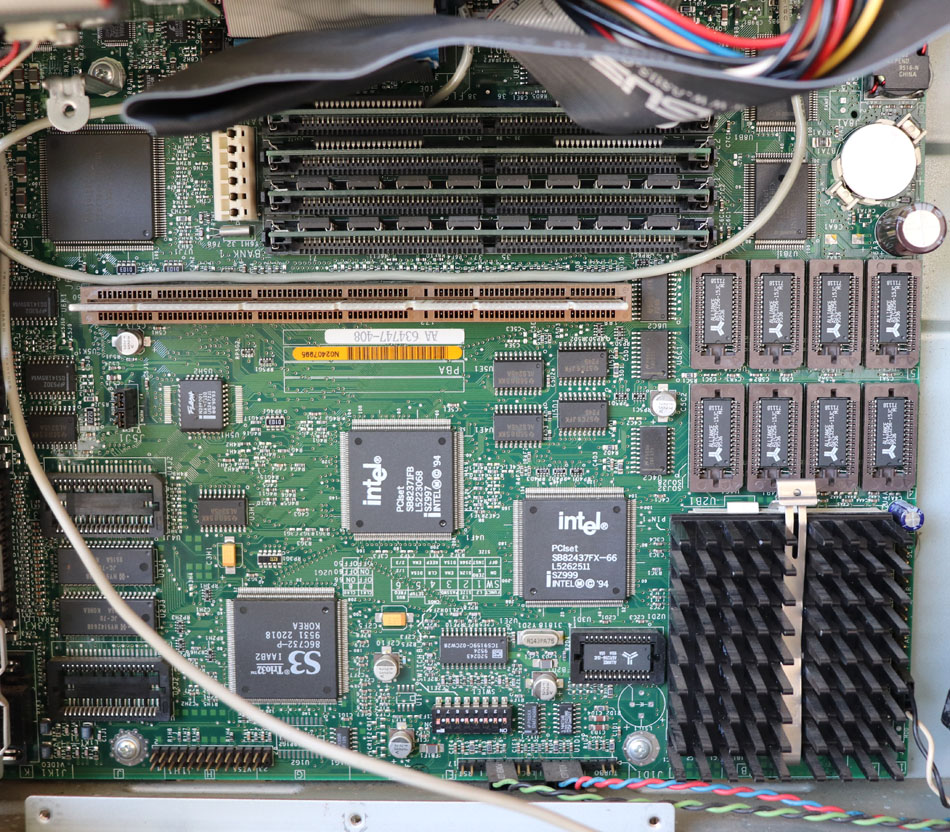

image3 Image 3 of 7 (Repo Man11)
image4 Image 4 of 7 (old_pc_parts)
image5 Image 5 of 7 (old_pc_parts)

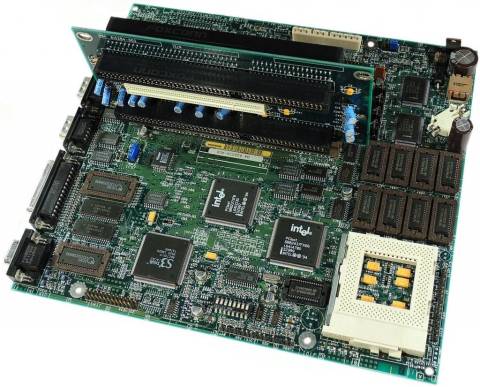

image6 Image 6 of 7 (old_pc_parts)

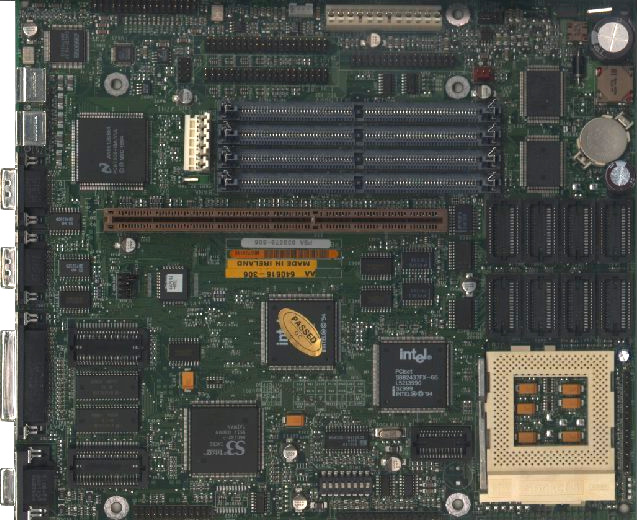

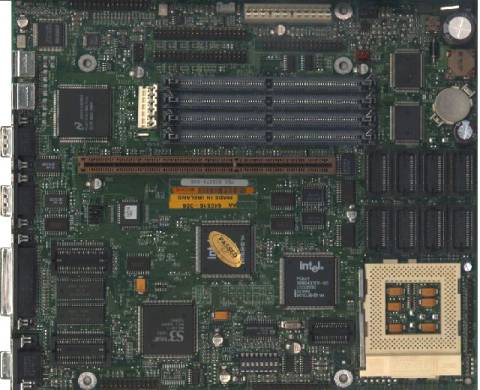

image7 Image 7 of 7

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
