Intel Advanced/EV (Endeavor, Rev. 2)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorBaby AT (max 220 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size2MB
Cache
256KB512KB768KB
Max RAM size
128MB
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
Notes
Optional S3 Trio64 1MB (up to 2MB) and/or Creative Vibra 16S audio
Last updated 2025-07-30T17:52:36Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Video
CPU family support
4 BIOS files available
AMI - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
Mr. BIOS - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL50V
Note
System BIOS for Endeavor motherboard ("Advanced/EV" 1.00.0X.CB0)
Core version
3.30
BIOS version
Logs
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
P16V-STD-01-ENG
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
4 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs

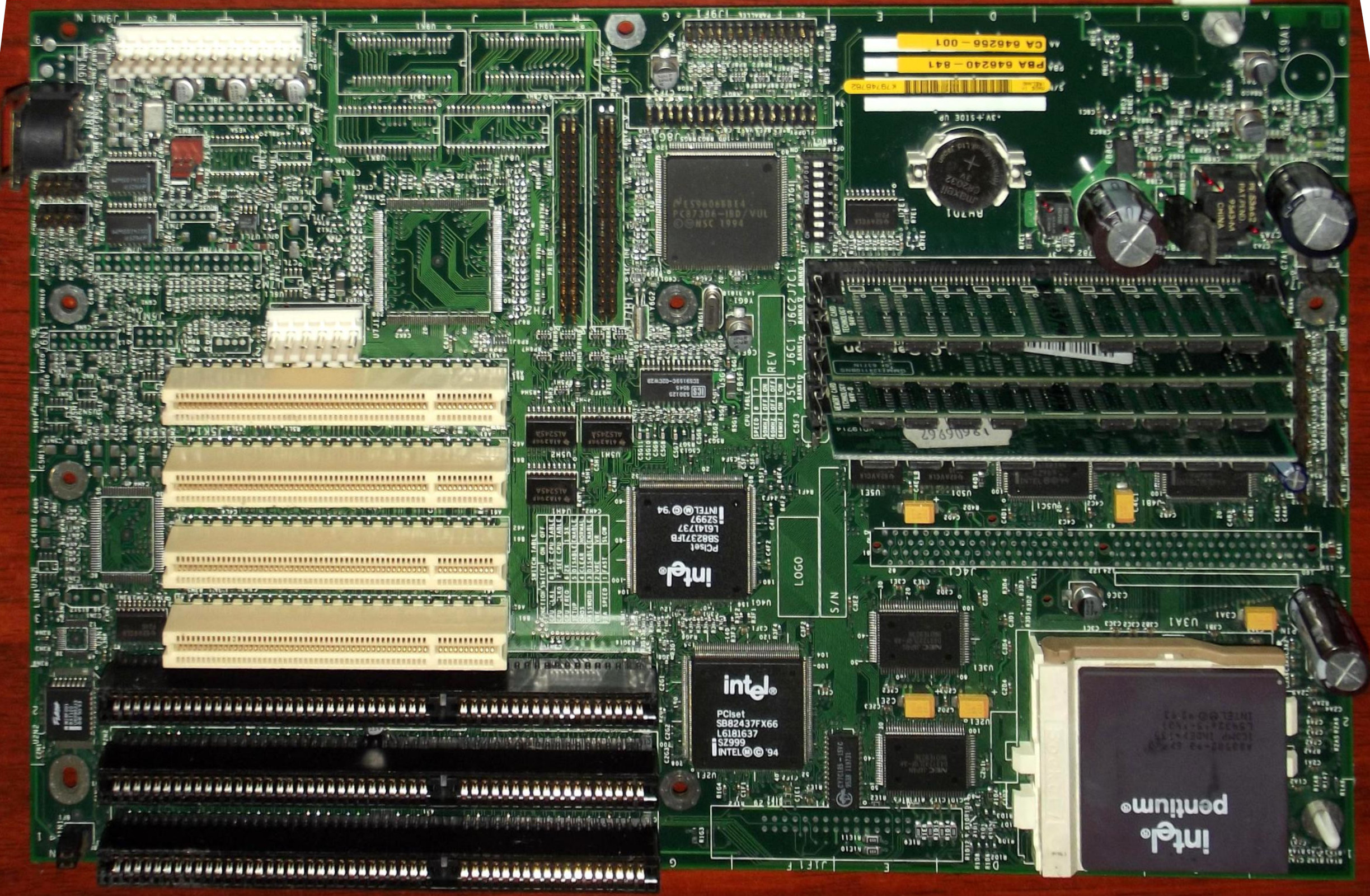

Image 1 of 8 (Microhouse)

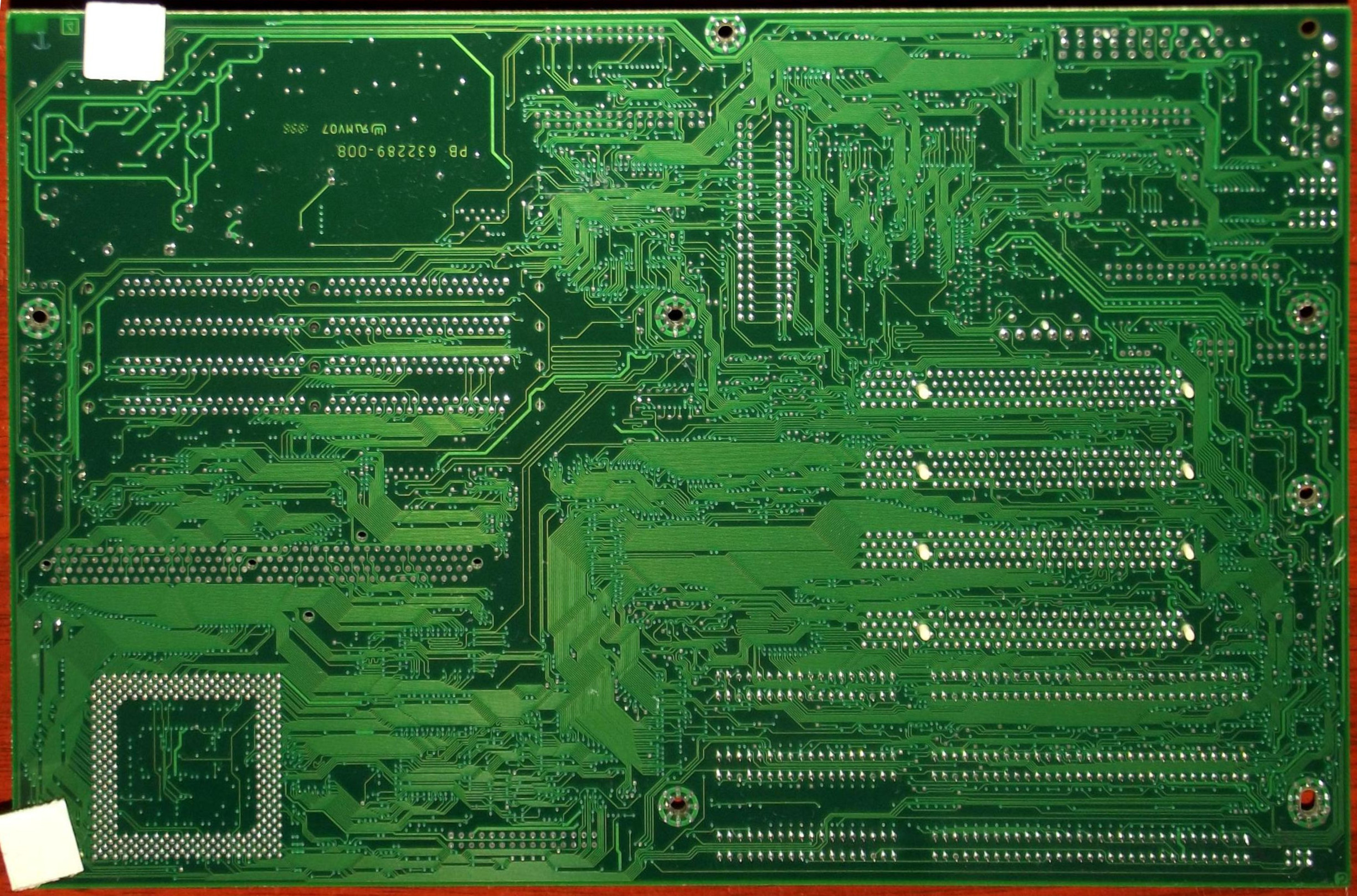

Image 2 of 8 (Computer Retro)

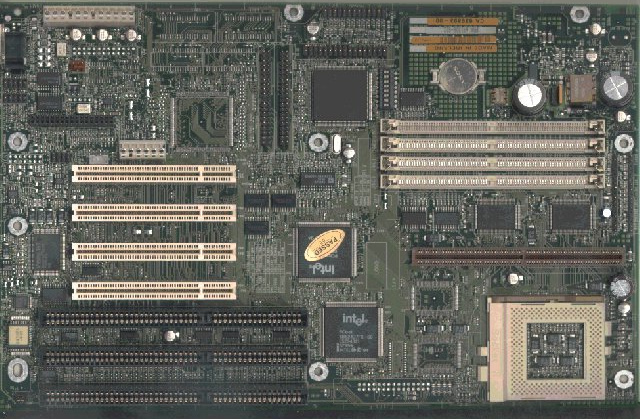

Image 3 of 8 (mR_Slug)

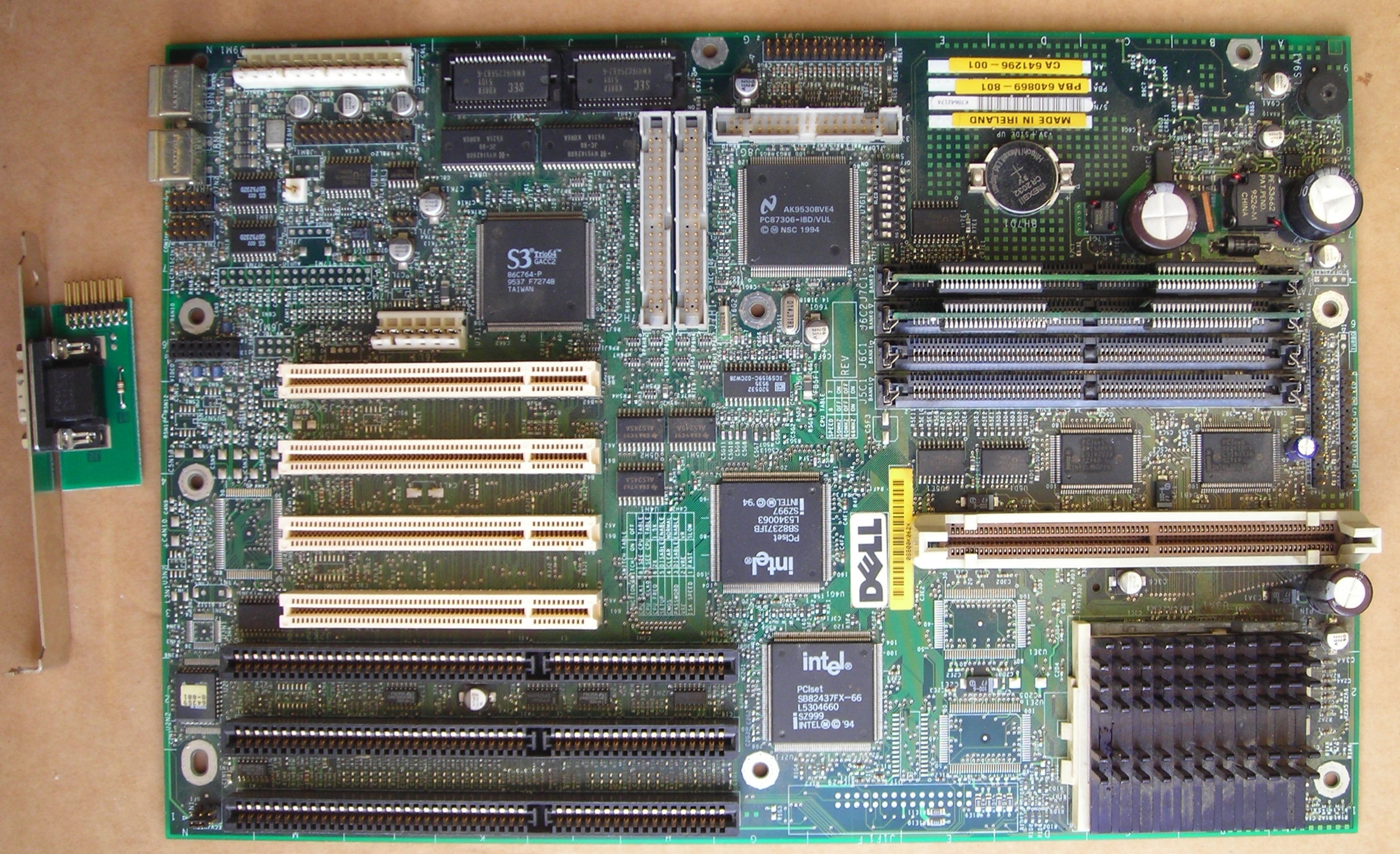

Image 4 of 8

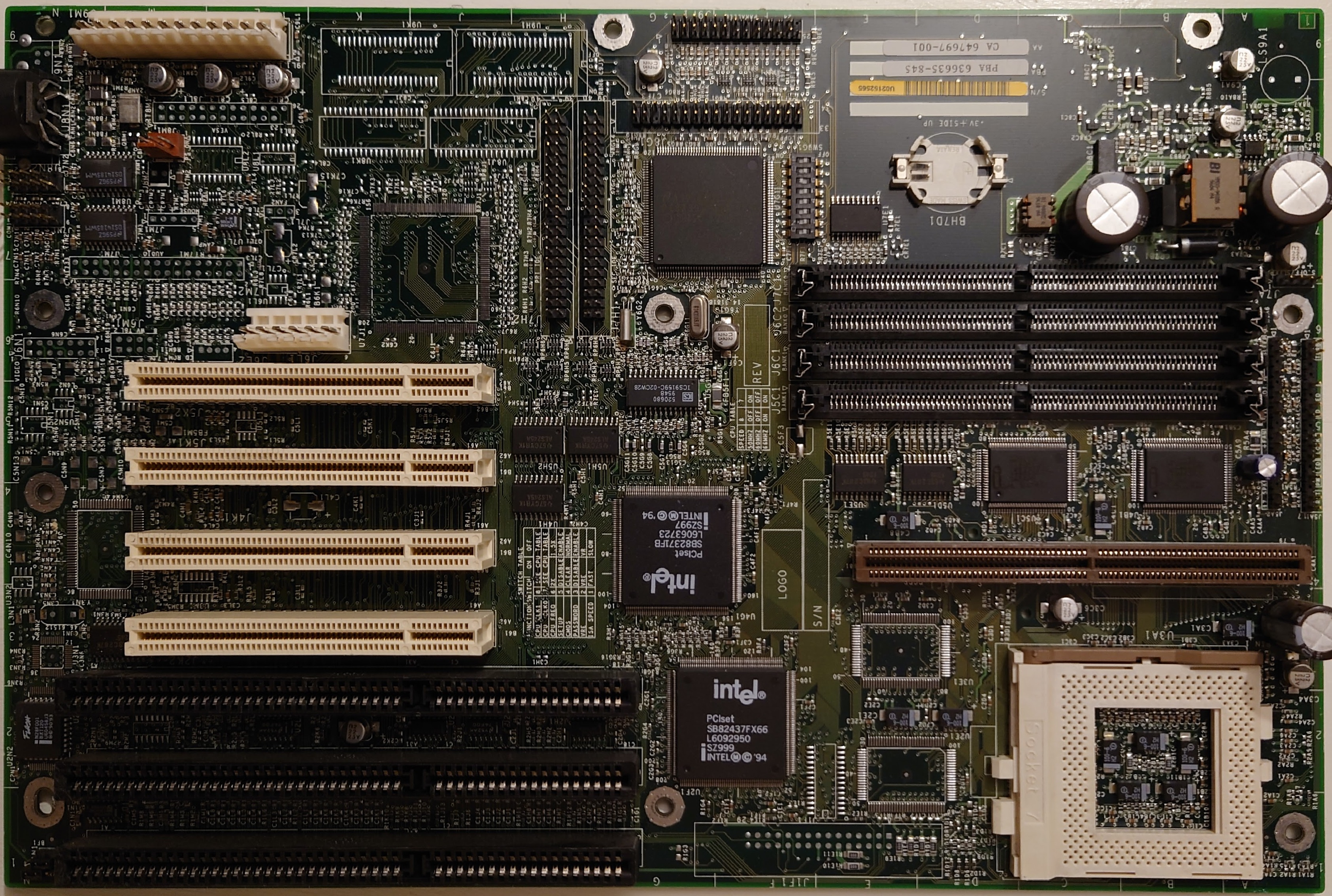

Image 5 of 8 (old_pc_parts)

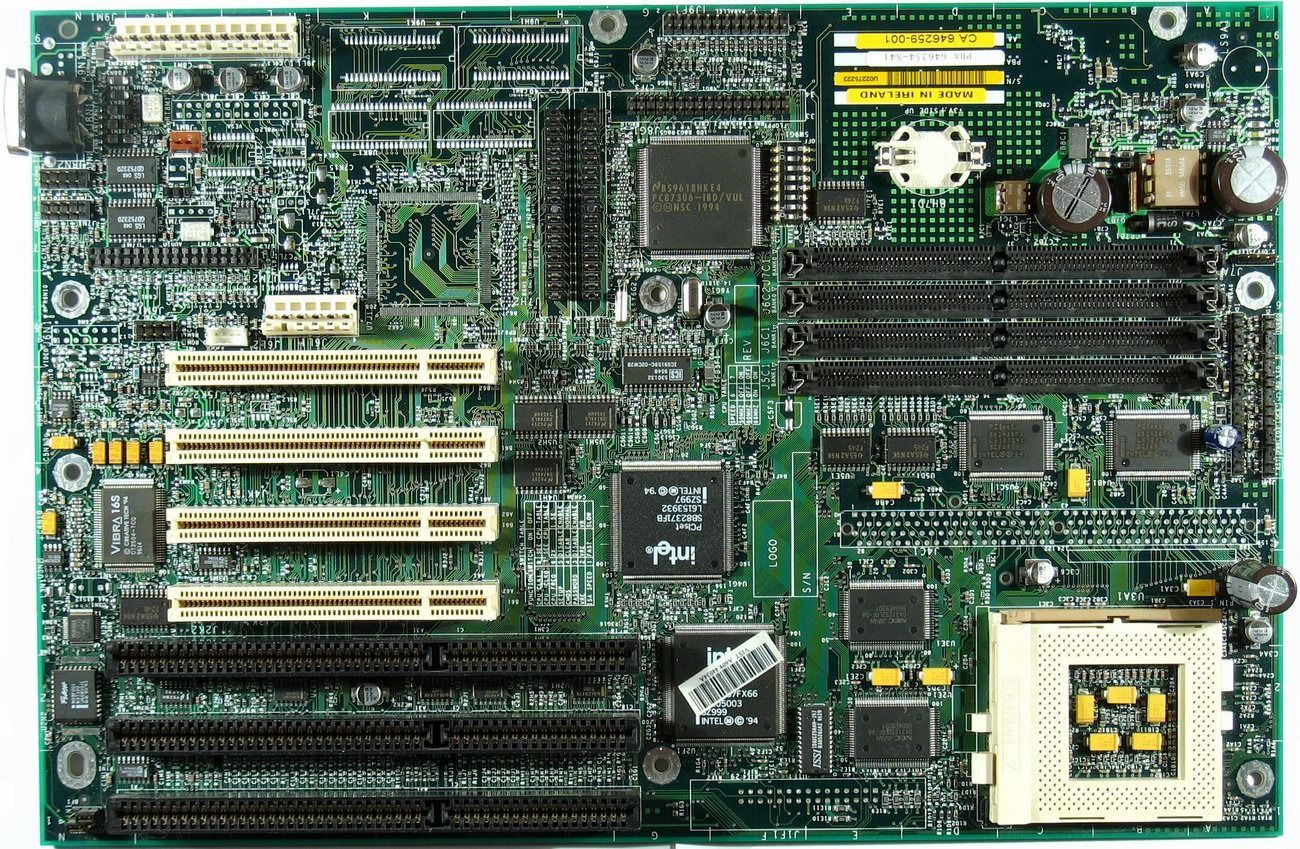

Image 6 of 8 (perhenden)
Image 7 of 8 (Computer Retro)
Image 8 of 8
