Intel Advanced/ATX (Thor)
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorATX (max 305 x 244 mm)
Dimensions220mm x 305mm
Max VRAM size2MB
RAM type
PSU connector
Also known as
- NCR 3349
- Intel 652605-501 (Gateway OEM)
- Gateway 4000261 , 4000117 , MBDPCI020AxWW , MBDSAC028AxWW , MBDSAC027AxWW , MBDPCI025AxWW , MBDSAC025AxWW , MBDSAC045AxWW , MBDSAC047AxWW
- Apricot VS660
- Mitsubishi Thor
I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
Parallel
2x
Serial
Expansion slots3x
16-bit ISA
4x
32-bit PCI
Known issues
- VRM module required for expanded CPU support
Without an add-on VRM module this motherboard supports none or only a limited selection of processors. With the installation of a VRM module additional voltages can be added which allows this motherboard to support a wider range of processors.
For Socket 5/7 Pentium VRM Motherboards see the new S7-VRM design by NecroWare. 1) https://github.com/necroware/s7-vrm
Notes
WARNING : No BIOS recovery mode is available on this motherboard! Flashing the wrong BIOS will render the motherboard unusable unless the BIOS chip is removed and reprogrammed.
- Possibly Intel's first ATX motherboard.
- May optionally include S3 Trio64V+ onboard video and/or Crystal CS4232 onboard audio.
- AMI BIOS seems only to work with Intel CPUs.
- With MR.BIOS the system seems to POST with AMD K6-2, but the CPU is incorrectly detected and L2 is not working.
Last updated 2025-08-10T12:36:55Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Audio
-> Super I/O
-> Video
CPU family support
8 BIOS files available
AMI - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.06.CN0
Note
Extracted ROM from the update utility
Core version
Intel
BIOS version
Logs
Mr. BIOS - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL50X
Note
System BIOS for Intel ATX motherboard ("Advanced/ATX" 1.00.0X.CN0)
Core version
3.30
BIOS version
Logs
17 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000
Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
2.41.07
OS support
Windows 9x
Arch
x86
Size
183.6KB
Filename
Name
Version
1.70.04
OS support
Windows 3.1x
Arch
x86
Size
606.1KB
Filename
Name
Version
1.6
OS support
OS/2 1.x
OS/2 2.x
OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
6 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

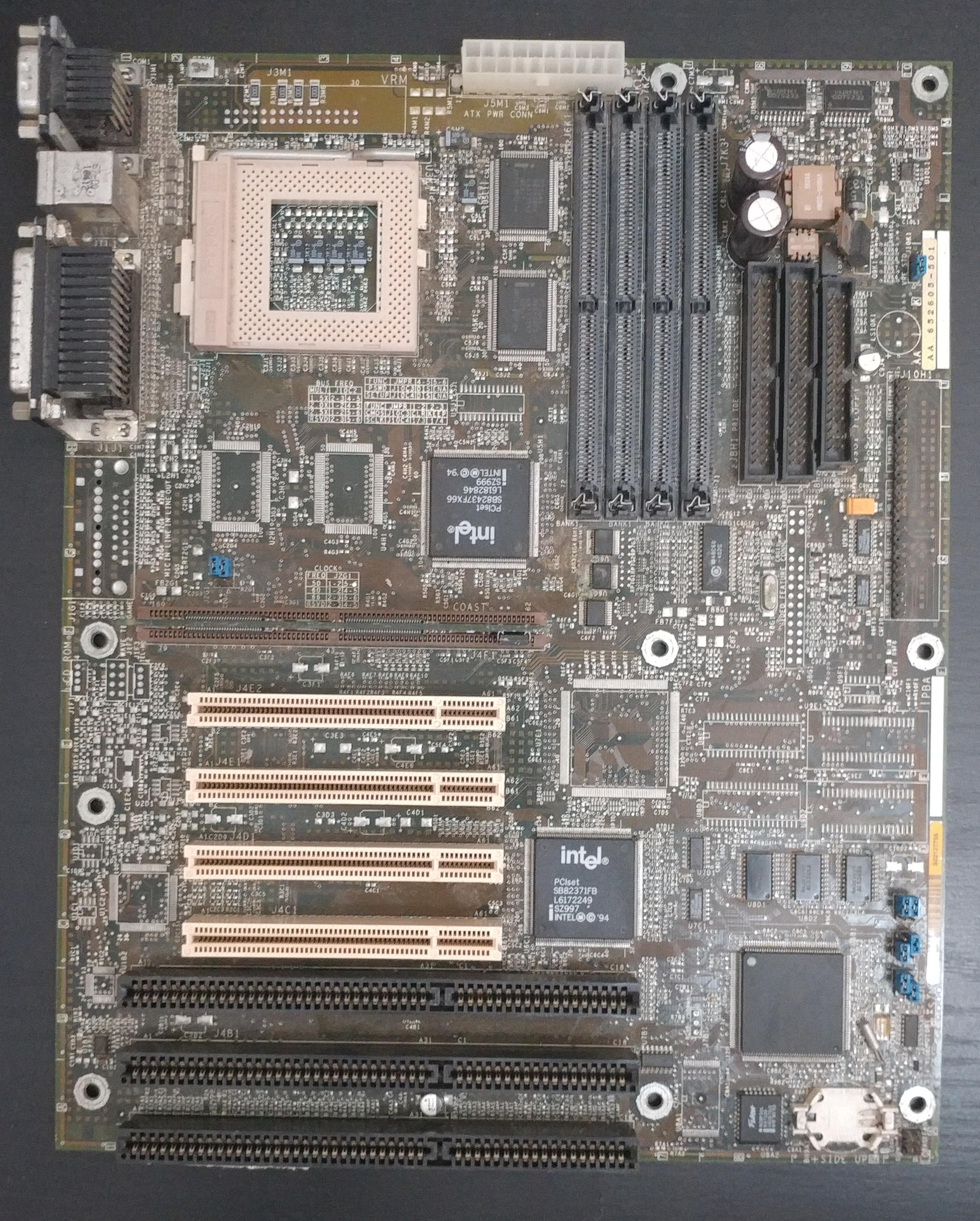

Image 1 of 4 (Microhouse)

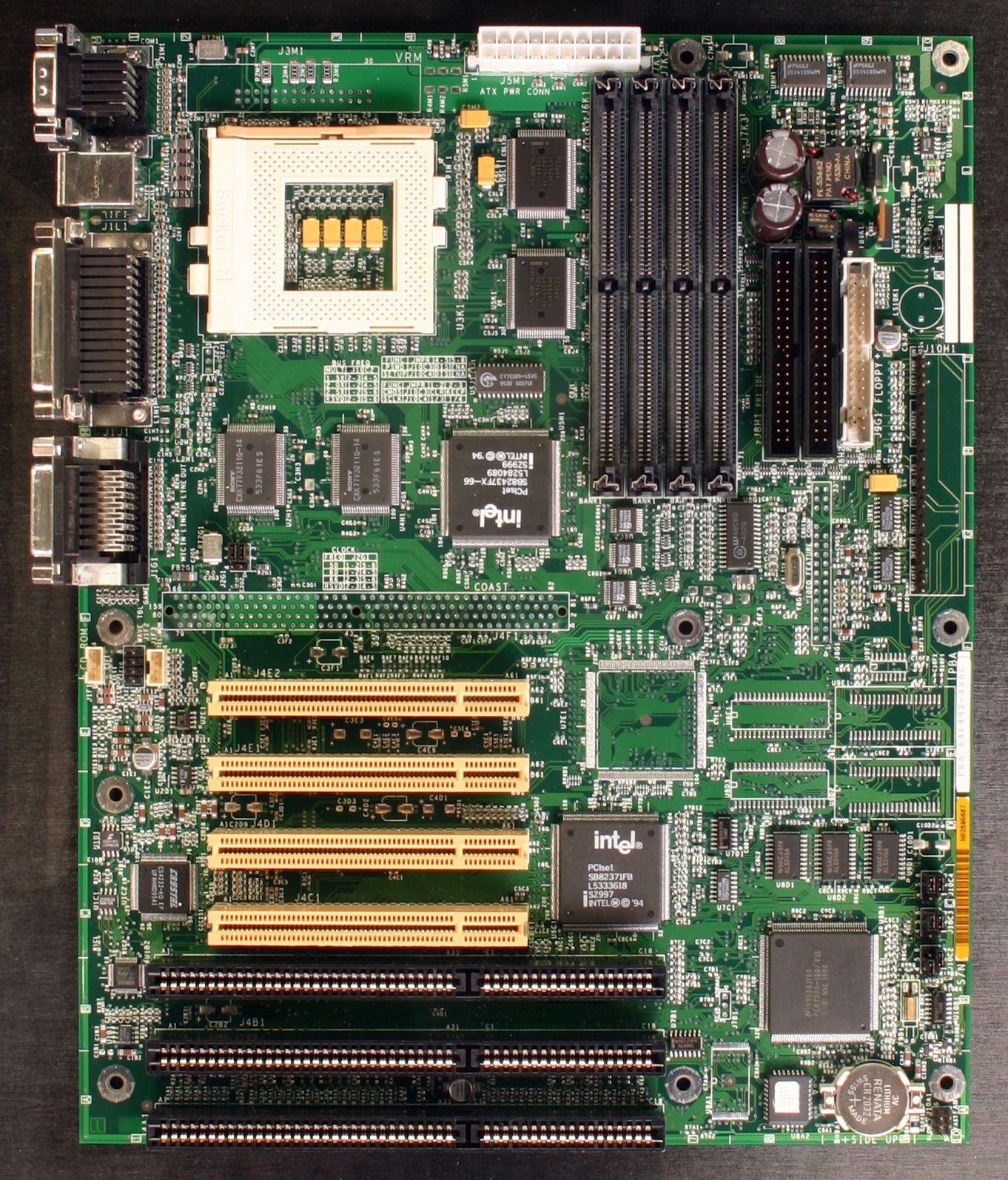

Image 2 of 4 (fire219)

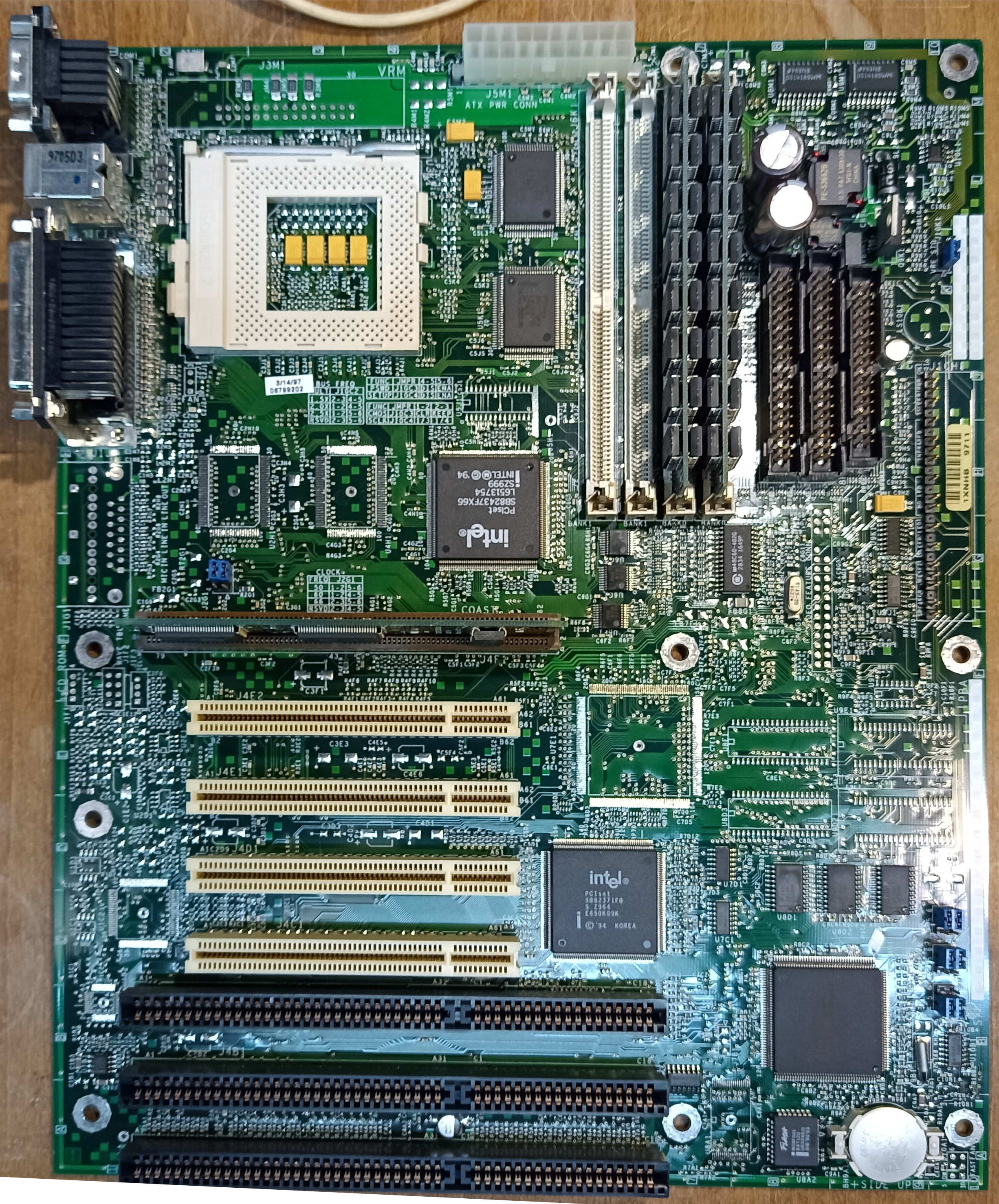

Image 3 of 4 (i440bx)
Image 4 of 4
