Intel Advanced/AS (Atlantis)
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
330mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM type
72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9) AT auxiliary 3.3v (6-pin P10)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
notes Notes

WARNING : No BIOS recovery mode is available on this motherboard! Flashing the wrong BIOS will render the motherboard unusable unless the BIOS chip is removed and reprogrammed.

Even though jumper J1N1 exists, the manual has a note specifically mentioning recovery mode is unavailable:

"Due to BIOS space limitations in the Flash component on the Advanced/AS, the BIOS support for recovery has been removed."

Last updated 2024-10-17T21:50:38Z
Board info score is 9.6/10
bios 6 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.07.CL0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.06.CL0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.05.CL0
Note
Core version
Intel
BIOS version
Logs
POST string
1.00.04.CL0
Note
Core version
Intel
BIOS version
Logs

vendor Mr. BIOS - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
INTL51X
Note
System BIOS for Atlantis motherboard ("Advanced/AS" 1.00.0X.CL0)
Core version
3.30
BIOS version
Logs
POST string
INTL51X
Note
Core version
3.28
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
3.03
OS support
Windows 3.1x
Arch
x86
Size
3.5MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
517KB
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
image1 Image 1 of 3 (Microhouse)

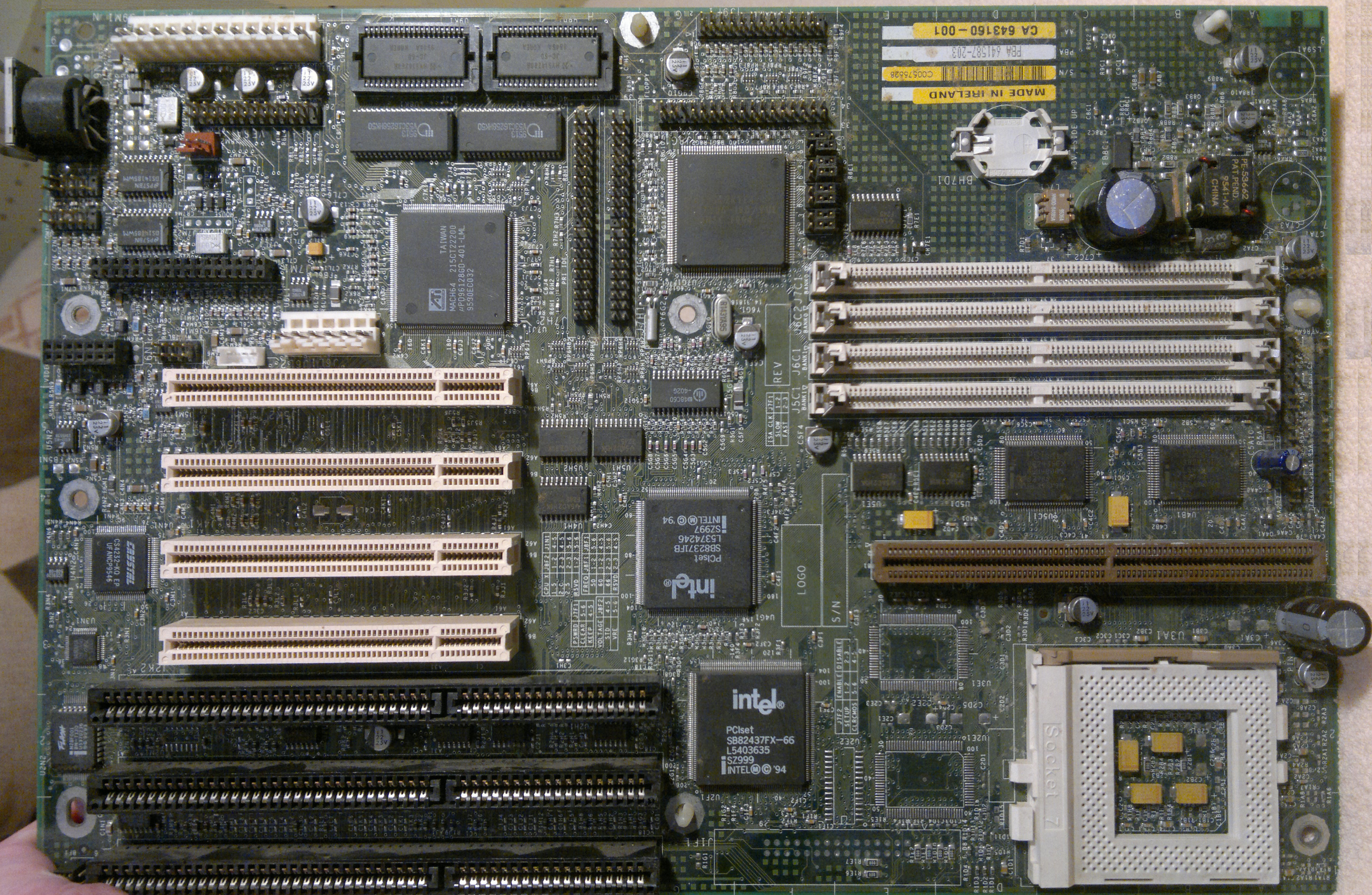

image2 Image 2 of 3 (pc2005)

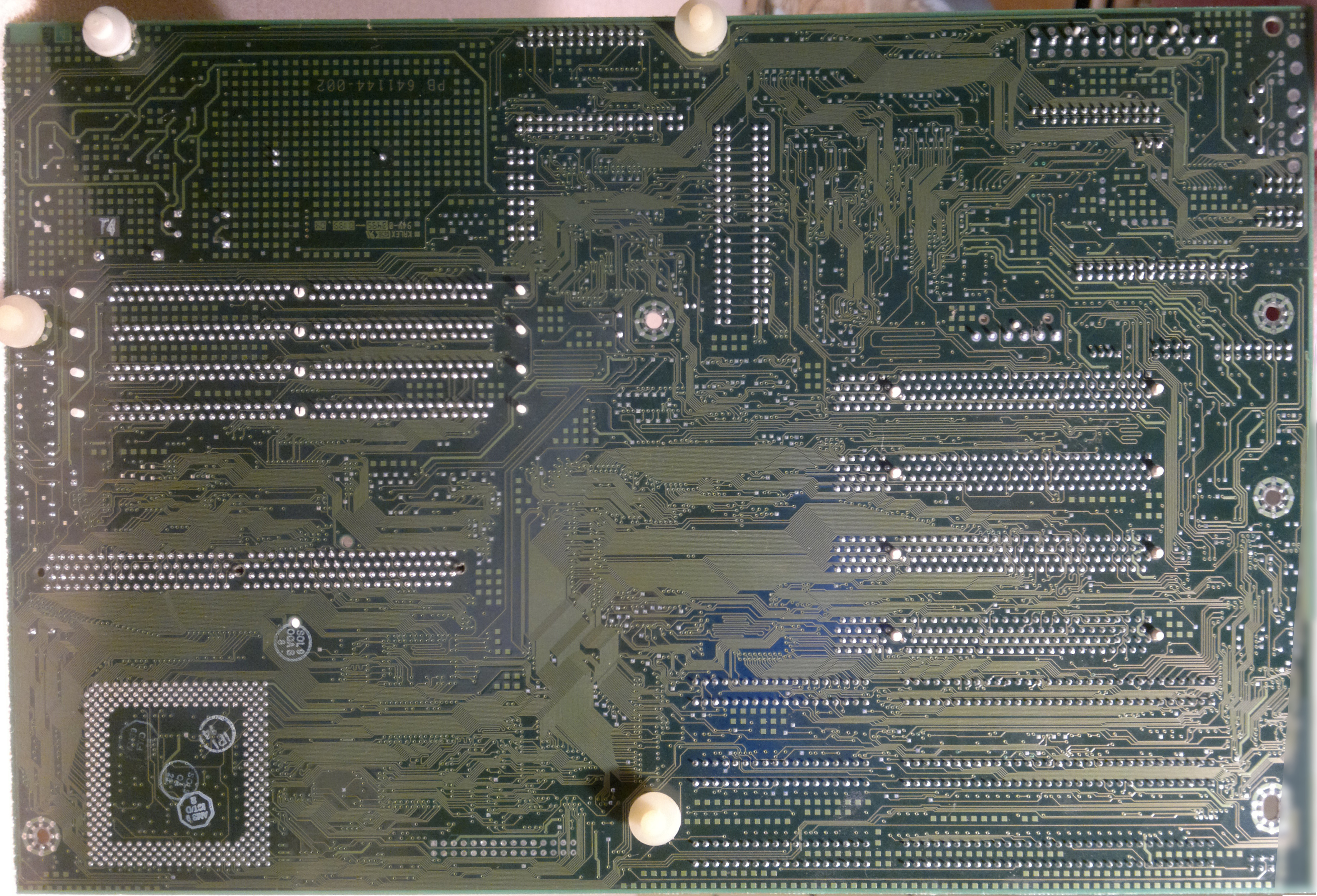

image3 Image 3 of 3 (pc2005)
