Intel Advanced/AL (Aladdin)
Logs
chipChipset
cpuSocket
Socket 5 (PGA320)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
LPX (max 229 x 330 mm)
dimDimensions
254mm x 218mm
ramMax VRAM size
2MB
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
cardExpansion slots
3x
16-bit ISA
2x
32-bit PCI
wrench Known issues
  • Expansion slots are on proprietary riser

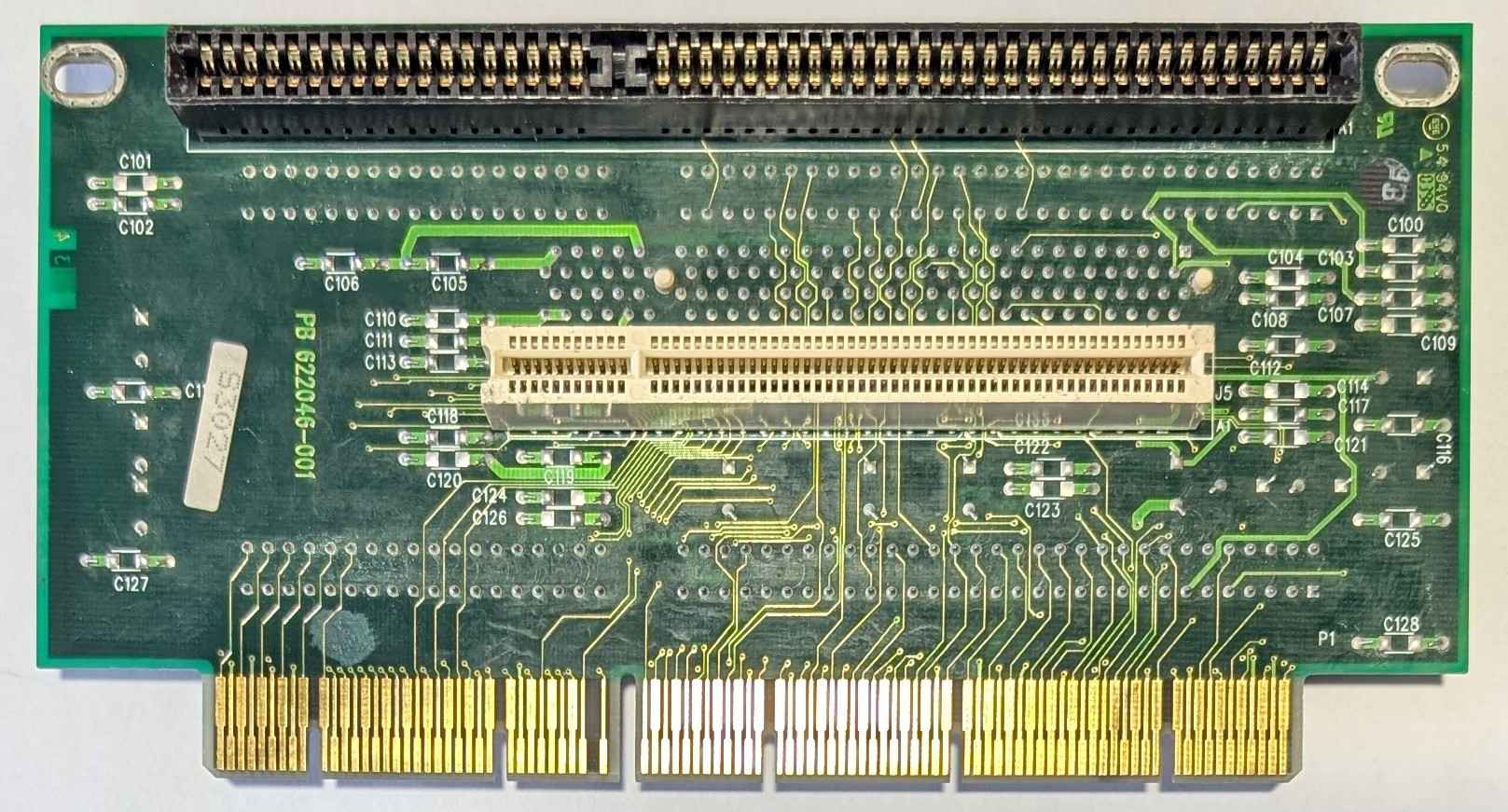

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.

notes Notes

HP Pavilion 5120, 7070, 7090, 7110Z, 7125, 7130P, 7145, 7160, 7170

Panasonic PanacomV32, CF-32QP5S, CF-32AP5S, CF-32FPAS, CF-32AP, CF-32FP, CF-32KPX

Toshiba Brezza 5100CX, 5100CI, 5120CI, PVBCX53 X, PVBCI53F, PVBCI54R PV3000 575, PV3000 5100, PV3000 5120, PV351 xxx, PV353 xxx ( PV353A xx is excluded), PV354 xxx

Zenith Z-Station GT ZEQ-8671- xx, IEP-8671-SH, UBP-0954

Last updated 2025-06-28T17:37:58Z
Board info score is 8.8/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
1.00.09.CA0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.07.CA0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.02.CA0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
POST string
1.00.01.CA0U
Note
ZDS OEM
Core version
Intel
BIOS version
Logs
drv 10 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x Windows NT 3.5x Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.3B8
OS support
Windows 3.1x
Arch
x86
Size
994.8KB
Filename
Name
Version
1.6
OS support
OS/2 1.x OS/2 2.x OS/2 Warp 3.x
Arch
x86
Size
1.2MB
Filename
Name
Version
2.01.09
OS support
Windows 9x
Arch
x86
Size
124.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.1
Arch
x86
Size
56.2KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
64.6KB
Filename
Name
Version
2.00.18
OS support
Windows NT 4.0
Arch
x86
Size
177.7KB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS NetWare Server 3 NetWare Server 4 OS/2 Warp 3.x Windows 3.1x Windows 9x Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 9x
Arch
x86
Size
569.7KB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
577.8KB
Filename
doc No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
1996
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-03
File
Logs
Chip
Release date
1996-02
File
Logs

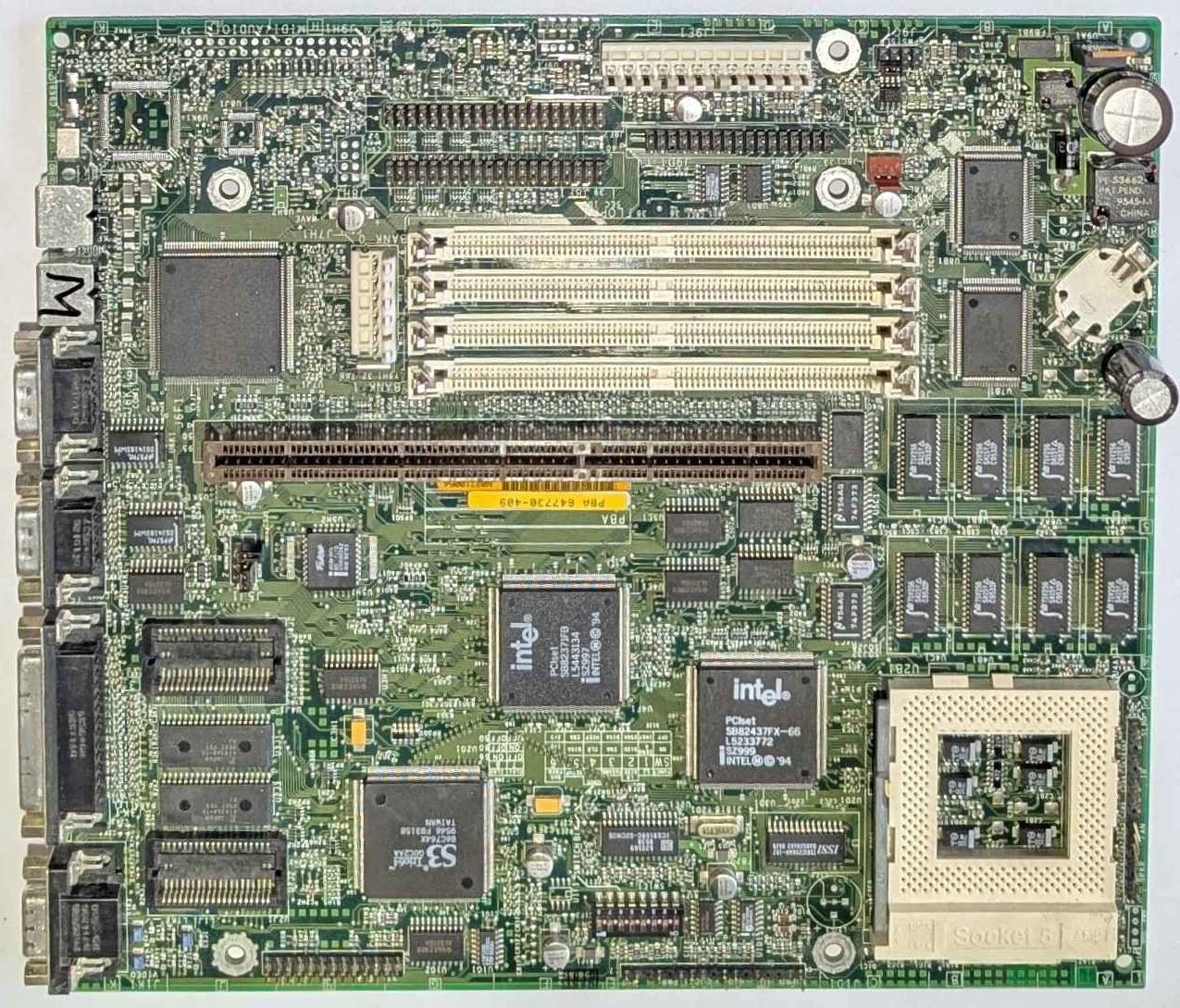

image1 Image 1 of 5 (Microhouse)
image2 Image 2 of 5 (perhenden)
image3 Image 3 of 5 (perhenden)

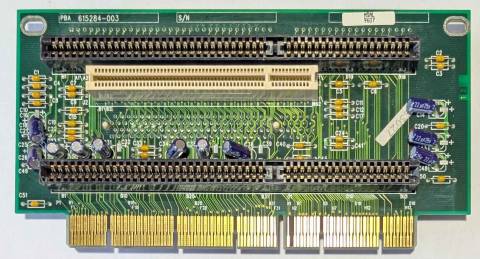

image4 Image 4 of 5 (perhenden)
image5 Image 5 of 5 (perhenden)
