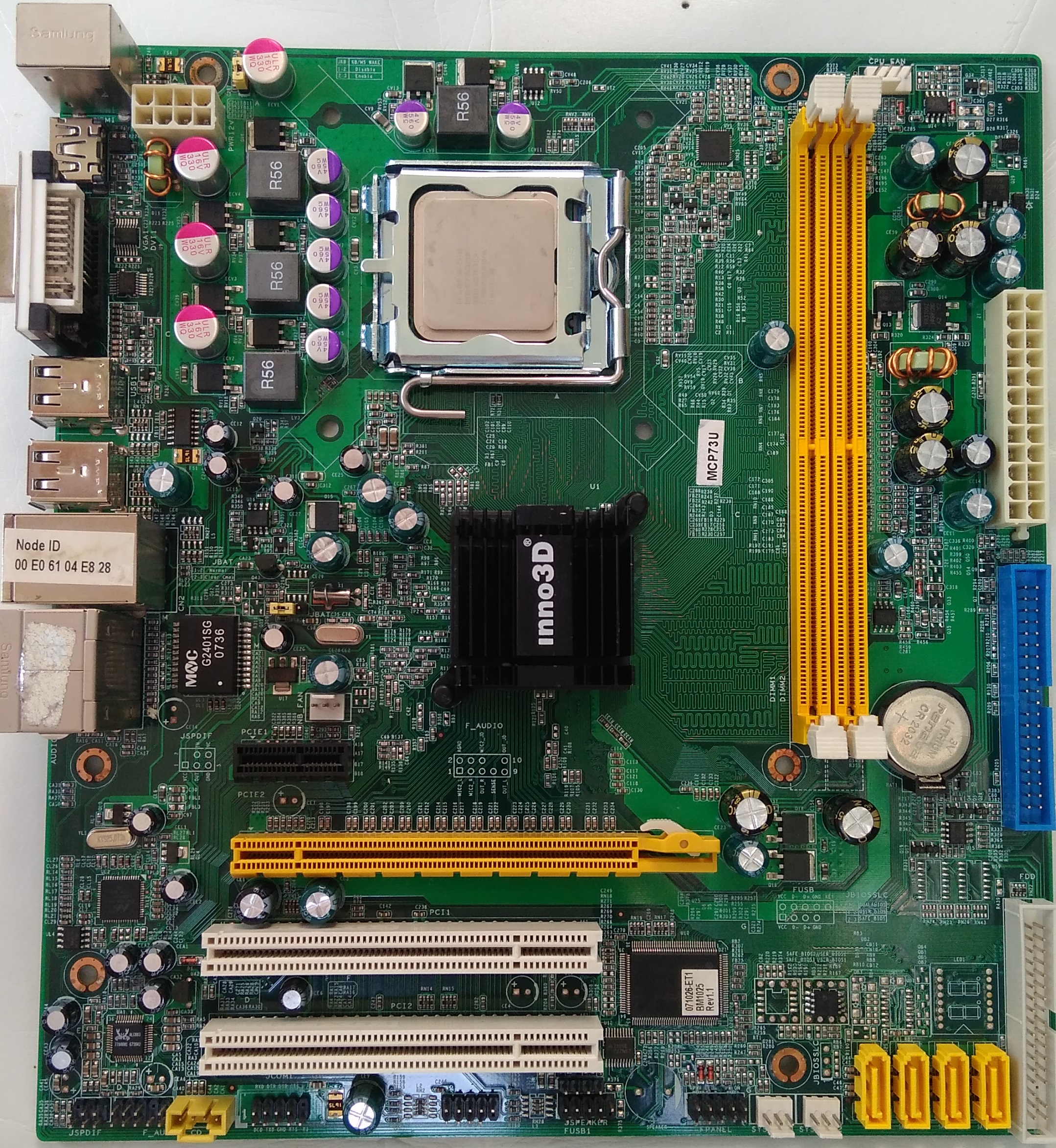

Inno3D / InnoVISION SL7N73UM-HDMI

Chipset

Nvidia nForce 630i/GeForce 7150 (MCP73U)

Socket

Socket T (LGA775)

FSB speeds

800MHz1066MHz1333MHz

Form factor

microATX (max 244 x 244 mm)

Dimensions

Empty

Cache

None/Integrated in the CPU

Max RAM size

4GB

RAM type

DDR2 UDIMM

PSU connector

ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

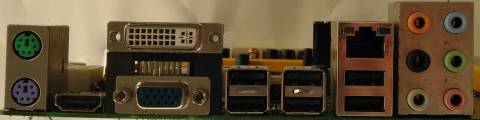

I/O ports

3.5mm Audio Combo

DVI

FireWire 400

Floppy interface

HDMI

IDE interface

PS/2 keyboard

PS/2 mouse

RJ-45 LAN

SATA II

Serial

10x

USB 2.0

VGA

Expansion slots

32-bit PCI

PCIe x1

PCIe x16

No board specific known issues

Nvidia MCP73 known issues

Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-08-05T13:17:00Z

Board info score is 8.5/10

Chips

-> Chipset part

Nvidia MCP73

-> Audio

Realtek ALC889A (High Definition Audio)

-> FireWire ctrl.

Texas Instruments TSB43AB23 (3 port FireWire 400 PCI ctrl.)

-> Network

Realtek RTL8211B (Gigabit Ethernet PHY)

-> Super I/O

ITE IT8718F

CPU family support

Intel Pentium 4 (Prescott)
Intel Core 2 Duo (Conroe/Allendale)
Intel Pentium D (Presler)
Intel Core 2 Quad (Kentsfield)
Intel Core 2 Duo (Wolfdale)
Intel Core 2 Quad (Yorkfield)
Intel Pentium 4 (Cedar Mill)
Intel Pentium D (Smithfield)
Intel Celeron D (Prescott-256)
Intel Pentium Dual-Core (Allendale)
Intel Celeron Dual-Core (Allendale)
Intel Xeon (Conroe/Allendale)
Intel Celeron (Conroe-L)
Intel Celeron D (Cedar Mill-512)
Intel Core 2 Extreme (Kentsfield)
Intel Xeon (Kentsfield)
Intel Pentium Dual-Core (Wolfdale)
Intel Celeron Dual-Core (Wolfdale)
Intel Xeon (Wolfdale)
Intel Core 2 Extreme (Yorkfield)
Intel Xeon (Yorkfield)

1 BIOS file available

Award - 2 entries

POST string

Note

Core Ver.

BIOS Ver.

Logs

POST string

10/12/2007-MCP73-6A61I0J1C-00

Note

Core version

6.00PG

BIOS version

V1.1

Logs

POST string

05/26/2008-MCP73-6A61I0J1C-JW

Note

Core version

6.00PG

BIOS version

Logs

2 drivers available

NVIDIA nForce Chipset Driver: multiple versions available

Version

OS support

Arch

Size

Filename

Version

6.66E

OS support

Windows 2000

Windows XP/2k3

Arch

x86

Size

37.8MB

Filename

nf4w2k666e.zip

Version

15.23

OS support

Windows XP/2k3

Arch

x86

Size

50.9MB

Filename

15-23-nforce-winxp32-international-whql.exe

No board documents available

3 chip documents available

Chip

Release date

File

Logs

Chip

ITE IT8718F

Release date

File

Data Sheet

Logs

Chip

Realtek RTL8211B (Gigabit Ethernet PHY)

Release date

2008-01-10

File

RTL8211B(L) datasheet

Logs

Chip

Texas Instruments TSB43AB23 (3 port FireWire 400 PCI ctrl.)

Release date

2003-02

File

TSB43AB23 Data Manual

Logs

57 chip family documents available

Family

Release date

File

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2001-02

File

Desktop Performance and Optimization for Intel Pentium 4 Processor

Logs

Family

Intel Celeron (Conroe-L)

Release date

2007-10

File

Intel Celeron 200 Series Datasheet

Logs

Family

Intel Celeron (Conroe-L)

Release date

2008-01

File

Intel Celeron 200 Series Specification Update

Logs

Family

Intel Celeron D (Cedar Mill-512)

Release date

2007-03

File

Intel Celeron D 300 Sequence Datasheet

Logs

Family

Intel Celeron D (Cedar Mill-512)

Release date

2008-08

File

Intel Celeron D 300 Sequence Specification Update

Logs

Family

Intel Celeron D (Prescott-256)

Release date

File

Intel Celeron D 300 Sequence Specification Update (September 2008)

Logs

Family

Intel Celeron (Conroe-L)

Release date

2009-06

File

Intel Celeron E1000 Series Datasheet

Logs

Family

Intel Celeron (Conroe-L)

Release date

2008-01

File

Intel Celeron E1000 Series Specification Update

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

File

Intel Core 2 Duo 45nm CPUs Product Brief

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2008-10

File

Intel Core 2 Duo E8000 and E7000 Series Datasheet

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2010-12

File

Intel Core 2 Duo E8000 and E7000 Series Specification Update

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2008-12

File

Intel Core 2 Duo E8000, E7000 and Pentium E5000 Series Series Thermal and Mechanical Design Guidelines

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2009-01

File

Intel Core 2 Duo E8000, E7000 and Pentium E5000 Series Series Thermal and Mechanical Design Guidelines

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2011-09-06

File

Intel Core 2 Duo Processor E4000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2011-09-06

File

Intel Core 2 Duo Processor E6000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2011-09-06

File

Intel Core 2 Duo Processor E7000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Duo (Wolfdale)

Release date

2011-09-06

File

Intel Core 2 Duo Processor E8000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2008-12

File

Intel Core 2 Duo, Intel Pentium Dual Core and Intel Celeron Dual Core Sequence Thermal and Mechanical Design Guidelines

Logs

Family

Intel Pentium 4 (Cedar Mill)

Release date

File

Intel Core 2 Duo, Intel Pentium Dual Core and Intel Pentium 4 6x1 Sequence Thermal and Mechanical Design Guidelines (June 2007)

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2007-06

File

Intel Core 2 Duo, Intel Pentium Dual Core and Intel Pentium 4 6x1 Sequence Thermal and Mechanical Design Guidelines

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2007-10-30

File

Intel Core 2 Extreme Installation Instructions

Logs

Family

Intel Core 2 Extreme (Yorkfield)

Release date

2007-10-30

File

Intel Core 2 Extreme Installation Instructions

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2011-09-08

File

Intel Core 2 Extreme Processor QX6000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Extreme (Yorkfield)

Release date

2011-09-08

File

Intel Core 2 Extreme Processor QX9000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2007-08

File

Intel Core 2 Extreme QX6000 and Intel Core 2 Quad Q6000 Sequence Datasheet

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2007-08

File

Intel Core 2 Extreme QX6000 and Intel Core 2 Quad Q6000 Sequence Datasheet

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2010-12

File

Intel Core 2 Extreme QX6000 and Intel Core 2 Quad Q6000 Sequence Specification Update

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2010-12

File

Intel Core 2 Extreme QX6000 and Intel Core 2 Quad Q6000 Sequence Specification Update

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2007-04

File

Intel Core 2 Extreme QX6800 Datasheet

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2007-04

File

Intel Core 2 Extreme QX6800 Datasheet

Logs

Family

Intel Core 2 Quad (Yorkfield)

Release date

2009-08

File

Intel Core 2 Extreme QX9000 and Core 2 Q9000, Q9000S, Q8000, Q8000S Series Datasheet

Logs

Family

Intel Core 2 Extreme (Yorkfield)

Release date

2009-08

File

Intel Core 2 Extreme QX9000 and Core 2 Q9000, Q9000S, Q8000, Q8000S Series Datasheet

Logs

Family

Intel Core 2 Quad (Yorkfield)

Release date

2010-12

File

Intel Core 2 Extreme QX9000 and Core 2 Q9000, Q9000S, Q8000, Q8000S Series Specification Update

Logs

Family

Intel Core 2 Extreme (Yorkfield)

Release date

2010-12

File

Intel Core 2 Extreme QX9000 and Core 2 Q9000, Q9000S, Q8000, Q8000S Series Specification Update

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2007-10

File

Intel Core 2 Extreme X6800 and Intel Core 2 Duo E6000 and E4000 Sequence Datasheet

Logs

Family

Intel Core 2 Duo (Conroe/Allendale)

Release date

2010-12

File

Intel Core 2 Extreme X6800 and Intel Core 2 Duo E6000 and E4000 Sequence Specification Update

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2009-08

File

Intel Core 2 Extreme and Intel Core 2 Quad Series Thermal and Mechanical Design Guidelines

Logs

Family

Intel Core 2 Extreme (Kentsfield)

Release date

2009-08

File

Intel Core 2 Extreme and Intel Core 2 Quad Series Thermal and Mechanical Design Guidelines

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2007-11-08

File

Intel Core 2 Quad Installation Instructions

Logs

Family

Intel Core 2 Quad (Yorkfield)

Release date

2007-11-08

File

Intel Core 2 Quad Installation Instructions

Logs

Family

Intel Core 2 Quad (Kentsfield)

Release date

2011-09-08

File

Intel Core 2 Quad Processor Q6000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Quad (Yorkfield)

Release date

2011-09-08

File

Intel Core 2 Quad Processor Q8000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Quad (Yorkfield)

Release date

2011-09-08

File

Intel Core 2 Quad Processor Q9000 Series Export Compliance Metrics

Logs

Family

Intel Core 2 Extreme (Yorkfield)

Release date

File

Intel Core i7/Core 2 Quad Extreme Processor Product Brief

Logs

Family

Intel Xeon (Conroe/Allendale)

Release date

2011-03-21

File

Intel Xeon Processor 3000 Series Export Compliance Metrics

Logs

Family

Intel Xeon (Wolfdale)

Release date

2011-03-21

File

Intel Xeon Processor 3100 Series Export Compliance Metrics

Logs

Family

Intel Xeon (Kentsfield)

Release date

2011-03-21

File

Intel Xeon Processor 3200 Series Export Compliance Metrics

Logs

Family

Intel Xeon (Yorkfield)

Release date

2011-03-21

File

Intel Xeon Processor 3300 Series Export Compliance Metrics

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2005-02

File

Pentium 4 2.8Ghz-3.4Ghz 90nm Datasheet

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2005-05

File

Pentium 4 570/571, 560/561, 550/551, 540/541, 530/531 and 520/521 Datasheet

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2004-02

File

Pentium 90nm 4 Thermal and Mechanical Design Guidelines

Logs

Family

Intel Pentium D (Presler)

Release date

2007-01

File

Pentium D 900 Sequence and Pentium D EE 955, 965 Datasheet

Logs

Family

Intel Pentium D (Presler)

Release date

2007-07

File

Pentium D 900 Sequence and Pentium D EE 955, 965 Specification Update

Logs

Family

Intel Celeron D (Prescott-256)

Release date

File

Socket 478 Intel Celeron D 3xx Sequence Datasheet (June 2005)

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2001-10

File

Socket 478 Pentium 4 Design Guidelines

Logs

Family

Intel Pentium 4 (Prescott)

Release date

2002-05

File

Socket 478 Pentium 4 Thermal Design Guidelines

Logs

Family

Intel Celeron D (Prescott-256)

Release date

File

Socket 775 Intel Celeron D 300 Sequence Datasheet (December 2005)

Logs

2 socket documents available

Socket

Release date

File

Logs

Socket

Socket T (LGA775)

Release date

2006-02

File

LGA775 Mechanical Design Guide

Logs

Socket

Socket T (LGA775)

Release date

2004

File

Processor Installation Instructions

Logs
