IEI WAFER-LX2
Chipset
Socket
FSB speed 400MHz
Form factorECX/Biscuit SBC 3.5" (max 146 x 105 mm)
Dimensions146mm x 102mm
Max VRAM size16MB
Cache
None/Integrated in the CPU
Max RAM size
1GB
RAM type 200-pin DDR SO-DIMM
PSU connector
I/O ports1x
CF Card Slot
1x
GPIO
1x
IDE interface
1x
LVDS
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
8x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
PC/104
Notes
AMD Geode LX 800 (500MHz) processor
Last updated 2025-06-02T15:06:54Z
Board info score is 9.8/10
Chips
-> Chipset part
-> Audio
-> Bridge Interface
-> Network
CPU family support
3 BIOS files available
Award - 3 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
05/16/2008-AMD-LX800-6A43AI9BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
01/14/2008-AMD-LX800-6A43AI9BC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
08/21/2007-AMD-LX800-6A43AI9BC-00
Note
Core version
v6.00PG
BIOS version
Logs
3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS
Mac OS X
NetWare Server 3
NetWare Server 4
Netware Client32
SCO Unix - OpenServer
Windows 2000
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
, PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
Size
490.9KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

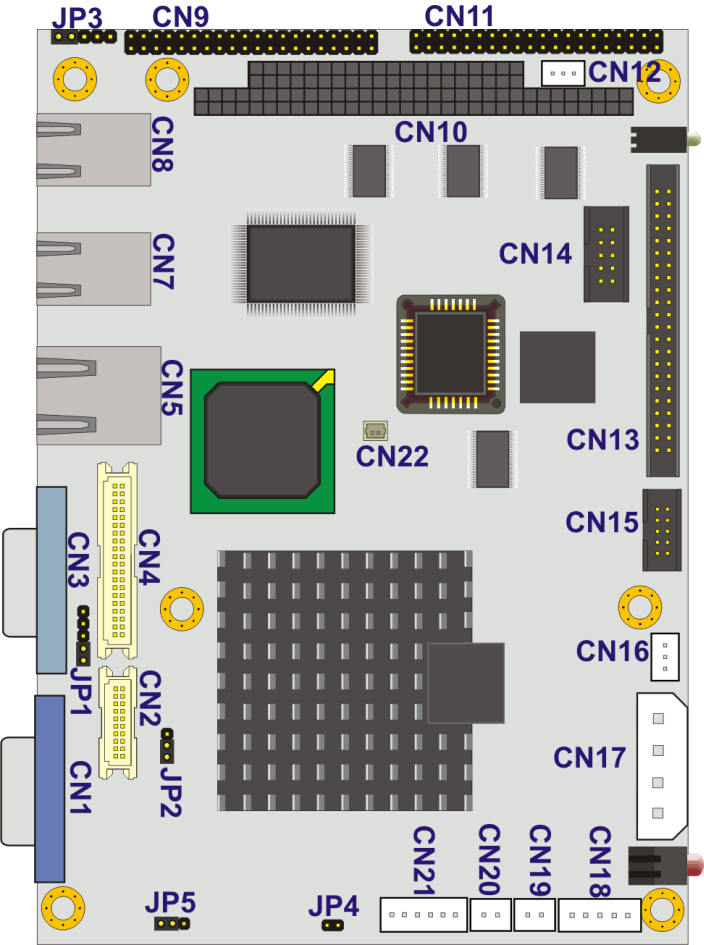

Image 1 of 4 (IEI)

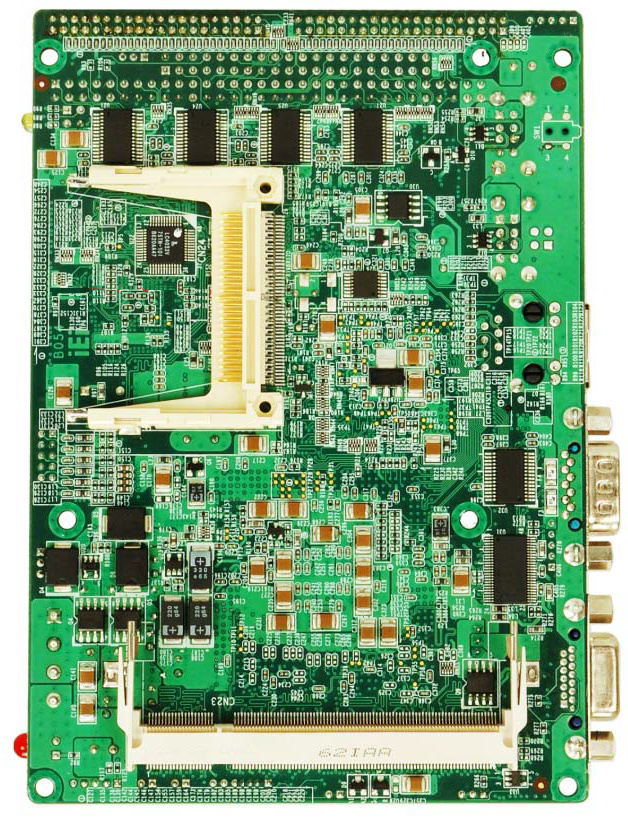

Image 2 of 4 (IEI)

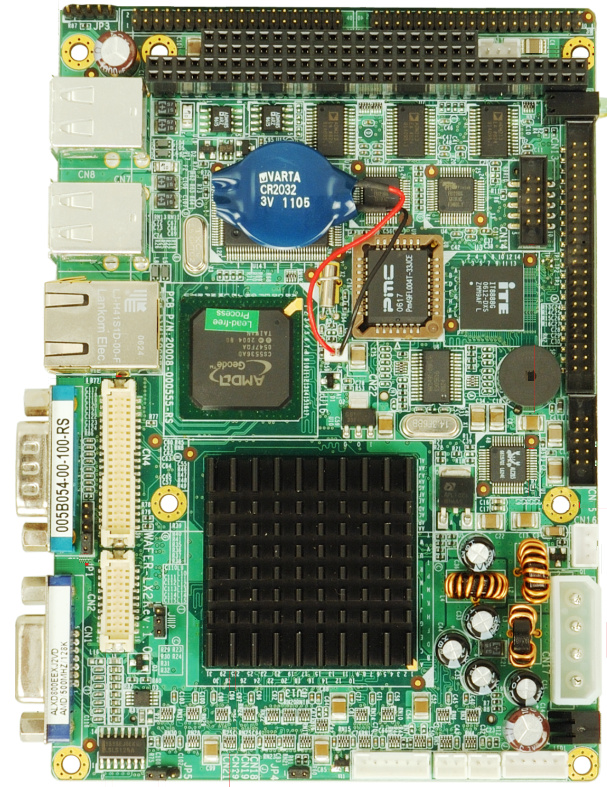

Image 3 of 4 (IEI)
Image 4 of 4 (IEI)
