IEI WAFER-CV-N26001
Logs
chipChipset
cpuSocket
BGA559
speedFSB speed
Empty
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
146mm x 101mm
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
204-pin DDR3 SO-DIMM
pwrPSU connector
ATX P4 connector 12v (4-pin P4)
connI/O ports
1x
GPIO
2x
LVDS
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
2x
SATA II
4x
Serial
6x
USB 2.0
1x
VGA
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
notes Notes

onboard video is GMA 3600

Last updated 2024-02-05T20:22:26Z
Board info score is 8.5/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
1.4
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
1.8
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
1.1
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122211-Chipset-0AAAA000
Note
1.6
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename

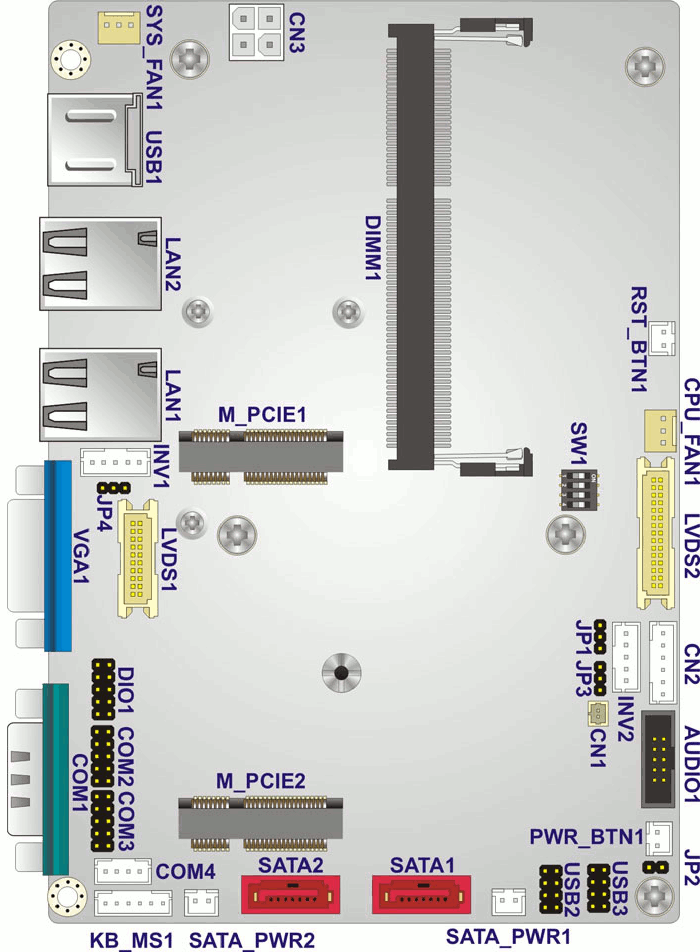

image1 Image 1 of 2 (evasive)

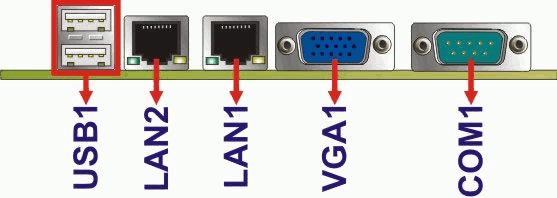

image2 Image 2 of 2 (evasive)
