IEI WAFER-945GSE-N270
Logs
chipChipset
cpuSocket
BGA437
speedFSB speeds
533MHz667MHz
moboForm factor
ECX/Biscuit SBC 3.5" (max 146 x 105 mm)
dimDimensions
145 mm x 102 mm
ramMax VRAM size
256MB
chipCache
None/Integrated in the CPU
ramMax RAM size
2GB
ramRAM type
200-pin DDR2 SO-DIMM
pwrPSU connector
Molex (4-pin)
tag Also known as

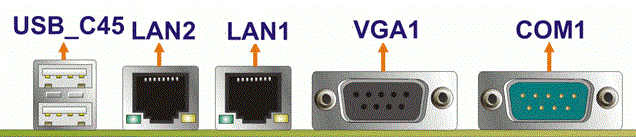

connI/O ports
1x
CF Card Slot
2x
RJ-45 LAN
2x
SATA II
6x
Serial
6x
USB 2.0
1x
VGA
cardExpansion slots
Empty
Last updated 2024-02-03T21:16:31Z
Board info score is 8.4/10
bios 4 BIOS files available

vendor AMI - 4 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-009999-00101111-101911-Calistoga-B210MR10
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-009999-00101111-060412-Calistoga-B210MR11
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-009999-00101111-051523-Calistoga-B210MR12
Note
Core version
080015
BIOS version
Logs
POST string
64-0100-009999-00101111-040209-Calistoga-B117MR13
Note
Core version
080015
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.32.4
OS support
Windows 2000 Windows XP/2k3
Arch
Size
47.9MB
Filename
Name
Version
14.25.50
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename

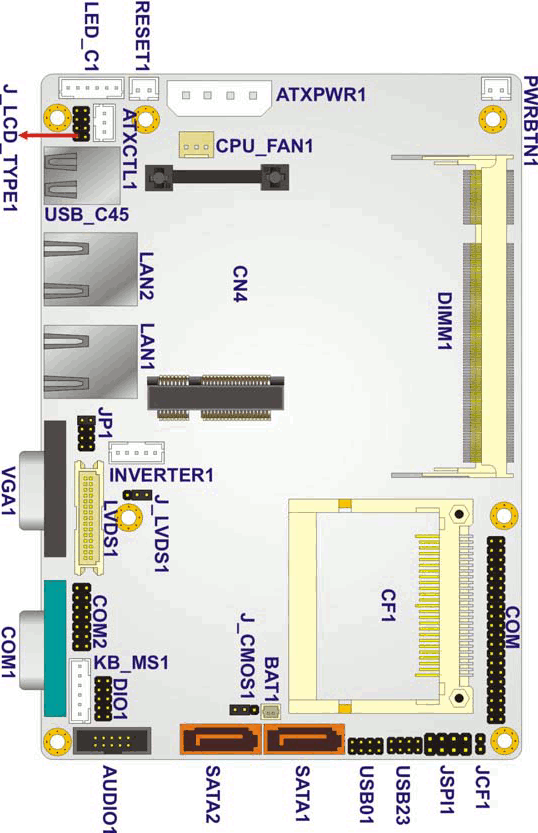

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2 (evasive)
