IEI PCIAGP-9S2 Backplane
Logs
chipChipset
Empty
cpuSocket
Empty
speedFSB speed
Empty
moboForm factor
OEM / Proprietary

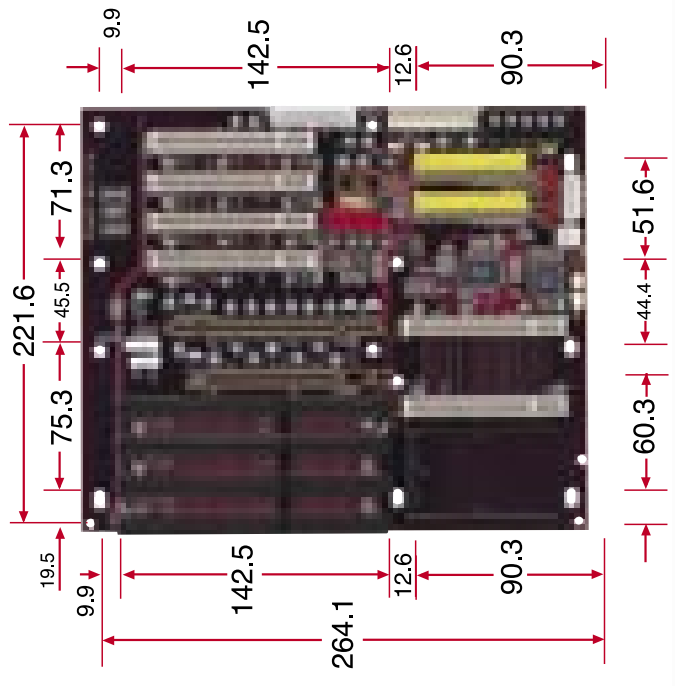

dimDimensions
264mm x 221.6mm
chipCache
None/Integrated in the CPU
ramMax RAM size
Empty
ramRAM type
Empty
pwrPSU connector
Molex (4-pin) ATX 1.x (20-pin ATX) AT (6-pin P8 + 6-pin P9) Screw Terminals ATX P4 connector 12v (4-pin P4)
tag Also known as
  • IEI PCIAGP-9S2(R) Backplane
connI/O ports
2x
IDE interface
cardExpansion slots
3x
16-bit ISA
4x
32-bit PCI
1x
PIAGP (PCIAGP)
1x
PICMG 1.0 (PCI/ISA)
1x
Universal AGP
notes Notes
  • PCIAGP-9S2 (no IDE)
  • PCIAGP-9S2(R) (IDE RAID)

PCIAGP-4S and PCIAGP-9S2 only support AGP 4X CPU cards (SAGP-815, SAGP-845) and AGP 4X Graphic cards

Last updated 2025-10-02T15:09:18Z
Board info score is 3.7/10
chip Chips
cpufam CPU family support
Empty
bios 0 BIOS files available
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
image1 Image 1 of 1 (IEI)
