ICS Computers SB486PV
Chipset
Socket
FSB speeds 25MHz33MHz50MHz
Form factorSingle Board Computer
Dimensions339mm x 66mm
Max VRAM size1MB
Cache
128KB512KB
Max RAM size
64MB
RAM type 72-pin FPM
PSU connector
Empty
Also known as
- ICS Computers SB486PVN (w/o onboard video)
I/O ports1x
AT Keyboard
1x
Floppy interface
1x
IDE interface
1x
Parallel
2x
Serial
Expansion slots1x
16-bit ISA
Last updated 2024-03-20T21:59:47Z
Board info score is 8.9/10
Chips
CPU family support
1 BIOS file available
AMI - 2 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
PCB rev b&c
Core version
BIOS version
12/03/97
Logs
POST string
51-1301-006421-00001111-071595-SATURNII-0GB_13_SATURN
Note
PCB rev. d
Core version
071595
BIOS version
Logs
4 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
6.8MB
Filename
Version
OS support
MS-DOS
Windows 3.1x
Windows 9x
Windows NT 4.0
Arch
x86
Size
7MB
Filename
2 board documents available
Chip
Release date
File
Logs
Family
Release date
File
Logs
Image 1 of 3 (Microhouse)

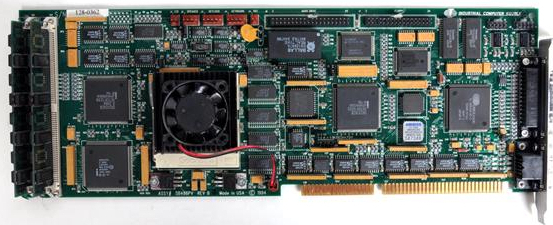

Image 2 of 3

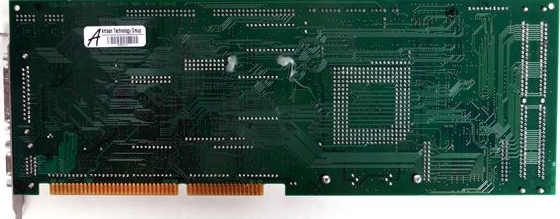

Image 3 of 3
