ICP ROCKY-5ST86HV
Logs
Chipset
Socket Empty
FSB speed 66MHz
Form factorSingle Board Computer
Dimensions185 mm x 122 mm
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
32MB
RAM types 72-pin FPM72-pin EDO
PSU connector
Empty
I/O ports1x
AT Keyboard
1x
Disk-on-Chip Socket
1x
Floppy interface
1x
IDE interface
1x
PS/2 mouse
1x
Parallel
4x
Serial
1x
VGA
Expansion slots1x
16-bit ISA
1x
PC/104
Last updated 2024-03-20T21:50:47Z
Board info score is 6/10
Chips
CPU family support
0 BIOS files available
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.3.2
OS support
MS-DOS
Windows 3.1x
Arch
x86
Size
1019.2KB
Filename
Name
Version
2.2.7
OS support
OS/2 Warp 3.x
OS/2 Warp 4.x
Arch
x86
Size
1.1MB
Filename
Name
Version
3.06
OS support
Windows 9x
Arch
x86
Size
148.7KB
Filename
Name
Version
4.05
OS support
Windows 9x
Arch
x86
Size
251.3KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
158.5KB
Filename
Name
Version
1.14
OS support
Windows NT 3.5x
Arch
x86
Size
41.4KB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
304KB
Filename
1 board document available
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs

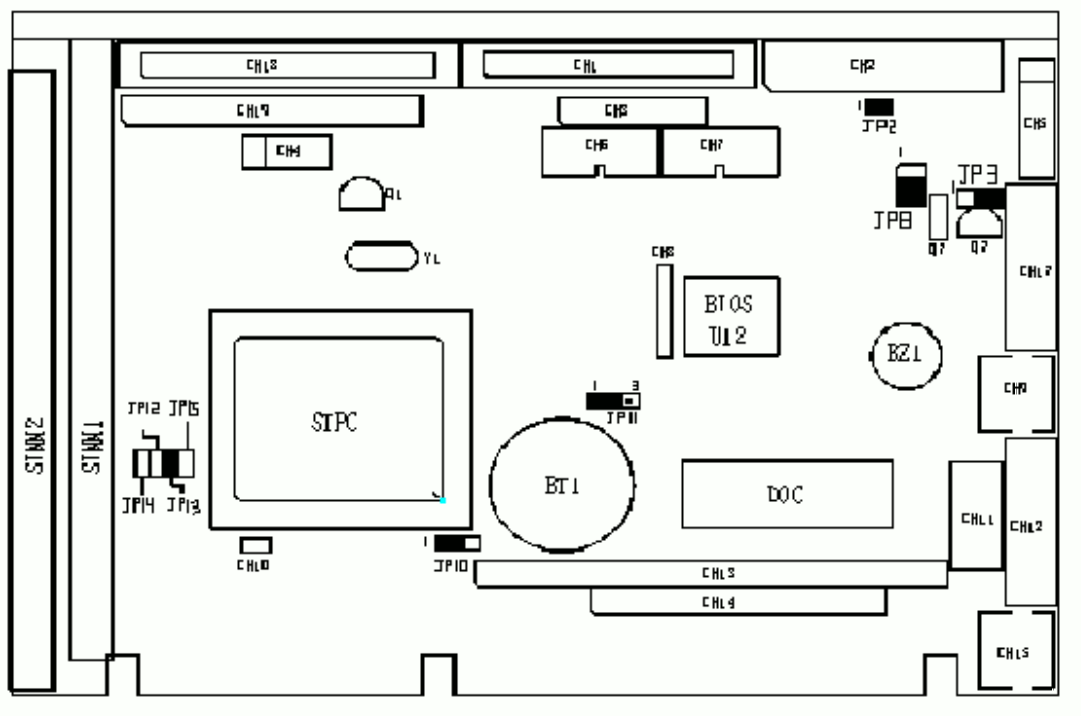

Image 1 of 1 (evasive)
